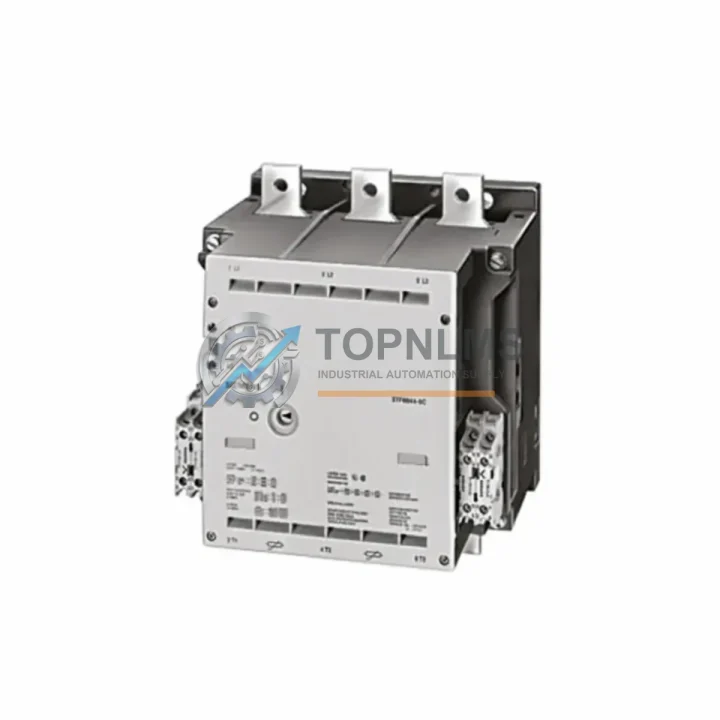

Siemens 3TF6844-0CM7 Ruggedized Contactor for Harsh Environments

Product Overview

Siemens 3TF6844-0CM7 Ruggedized Contactor Module for Harsh Environments: Industrial Resilience in Every Switching Cycle

The Siemens 3TF6844-0CM7 is a 250A AC contactor from the SIRIUS 3TF6 series, engineered to deliver reliable motor switching and load control in the most demanding industrial environments. Rated for high-current applications and built to withstand elevated temperatures, mechanical vibration, humidity, and electromagnetic interference, this contactor is a cornerstone component in heavy-duty control panels across mining, oil and gas, metallurgy, water treatment, and power generation facilities worldwide.

In continuous production environments where downtime is measured in thousands of dollars per hour, the switching reliability of a main contactor is non-negotiable. The 3TF6844-0CM7 is designed for exactly these conditions — its silver-alloy contact system maintains low contact resistance across millions of switching cycles, and its robust housing resists ingress from dust and moisture that would degrade lesser components. When this contactor is specified in a motor control center or drive panel, maintenance engineers can trust that it will perform consistently whether the ambient temperature is 5°C in a northern processing plant or 50°C in a desert petrochemical facility.

Rugged Specifications Table

Comprehensive Protection Solutions

A 250A contactor of this class rarely operates in isolation. In a properly engineered motor control center, the 3TF6844-0CM7 works in close coordination with a range of protective and control components, and the reliability of the entire system depends on the integrity of each element in the switching chain.

The most critical companion device is the Siemens 3RB2 solid-state overload relay, which provides precise motor protection against overload, phase failure, and thermistor-based temperature monitoring. In high-vibration environments such as mining conveyors or crusher drives, a solid-state relay is far more reliable than a bimetallic alternative, and it should be inspected and tested whenever the contactor is replaced. Equally important is the Siemens 3NP1 fuse switch disconnector upstream of the contactor — in facilities handling flammable gases or combustible dust, a properly rated disconnector ensures that the circuit can be safely isolated for maintenance without exposing personnel to arc flash hazards.

For installations where the 3TF6844-0CM7 is controlled by a Siemens SIMATIC S7-300 or S7-400 PLC, the digital output module — typically an SM 322 relay output or transistor output card — must be verified for correct switching capacity and coil drive compatibility. A degraded output channel on the SM 322 can cause erratic contactor chatter, which accelerates contact wear and generates spurious fault signals in the control system. In such cases, inspecting the SIMATIC S7-300 backplane bus connectors and the front connector wiring on the output module is a prudent step during any contactor replacement procedure.

In variable-speed drive applications, the 3TF6844-0CM7 is often used as a bypass or line contactor in conjunction with a Siemens SINAMICS G120 or S120 drive unit. The drive’s output reactor and EMC filter must be checked for correct grounding and shielding integrity, as high-frequency switching noise from the drive can induce coil voltage spikes that shorten contactor coil life. Installing a Siemens 3RT2 surge suppressor module across the coil terminals is a low-cost measure that significantly extends service life in these applications.

Control circuit integrity is equally important. The 24V DC SITOP PSU100S power supply feeding the control voltage bus should be load-tested during any major maintenance window — a sagging control voltage is a common cause of contactor dropout under full motor load. Pair this with a check of the 3SB3 pushbutton and selector switch assemblies in the operator panel, as worn contacts in the start/stop circuit can cause intermittent contactor engagement that is difficult to diagnose without a systematic approach. Finally, verify the condition of the terminal block assemblies (such as Siemens 8WH series) on both the power and control wiring sides; loose or corroded terminations in high-vibration environments are a leading cause of unexplained contactor faults in the field.

Application in Critical Infrastructure

The 3TF6844-0CM7 is deployed across the full spectrum of heavy industry, where its combination of high current capacity, mechanical robustness, and broad operating temperature range makes it the preferred choice for engineers who cannot afford switching failures.

In oil and gas processing facilities, this contactor controls pump motors, compressor drives, and cooling fan circuits in environments where ambient temperatures fluctuate widely and hydrocarbon vapors demand strict electrical integrity. Its compliance with IEC/EN 60947-4-1 and CE marking ensures it meets the documentation requirements for hazardous area installations when used within a correctly rated enclosure.

In mining and mineral processing, the 3TF6844-0CM7 handles the high inrush currents associated with conveyor belt motors, ball mill drives, and slurry pump starters. The mechanical endurance rating of 10 million operations is particularly relevant in these applications, where contactors may cycle hundreds of times per shift. Maintenance teams in these environments typically hold two or three spare units per critical drive to ensure that a failed contactor can be replaced within a single shift without waiting for procurement.

In power generation and electrical substation applications, the contactor is used in motor-operated switchgear, transformer cooling circuits, and auxiliary power distribution panels. The wide operating voltage range up to 690V AC makes it suitable for medium-voltage auxiliary systems without requiring a step-down transformer in the control circuit.

In water and wastewater treatment plants, where continuous operation is mandated by environmental regulations, the 3TF6844-0CM7 controls submersible pump motors, aeration blowers, and UV disinfection system drives. The combination of high electrical endurance and resistance to humid, corrosive atmospheres makes it a reliable long-term asset in these installations.

Each unit supplied by TOPNLMS is sourced as a genuine original Siemens component, tested for coil resistance, contact continuity, and mechanical operation before shipment. A 12-month warranty covers all functional defects, and units are dispatched with full traceability documentation to support quality-controlled procurement processes.

Security & Quality FAQ

Q1: What pre-shipment testing is performed on the 3TF6844-0CM7?
Every unit undergoes a functional test covering coil resistance measurement, main contact continuity across all poles, auxiliary contact operation, mechanical actuation cycle verification, and visual inspection for contact wear and housing integrity. A test record is available upon request for facilities with documented maintenance management systems.

Q2: Is the 3TF6844-0CM7 compatible with my existing SIRIUS 3TF6 installation without modification?
Yes. The 3TF6844-0CM7 is a direct replacement for any unit sharing the same part number. The mounting footprint, terminal positions, coil voltage (110V AC), and auxiliary contact configuration are identical to the original factory specification. No wiring modifications or control program changes are required for a like-for-like swap.

Q3: What does the 12-month warranty cover, and how are claims handled?
The warranty covers all functional defects arising under normal operating conditions, including coil failure, contact welding under rated load, and auxiliary contact malfunction. Damage caused by overvoltage, incorrect installation, or operation outside the rated environmental parameters is excluded. To initiate a claim, contact TOPNLMS with the order reference and a fault description; a replacement or repair will be arranged promptly.

Q4: Can TOPNLMS support long-term supply for facilities with multiple units installed?
Yes. TOPNLMS maintains stock of the 3TF6844-0CM7 and can support scheduled procurement programs, bulk orders, and annual supply agreements. For facilities with large installed bases of SIRIUS 3TF6 contactors, we recommend establishing a standing order to ensure availability as global supply of this series tightens. Contact our team to discuss volume pricing and lead-time commitments.
