Siemens 3VL9300-3ME10 Original Motor Operator SENTRON 3VL

Product Overview

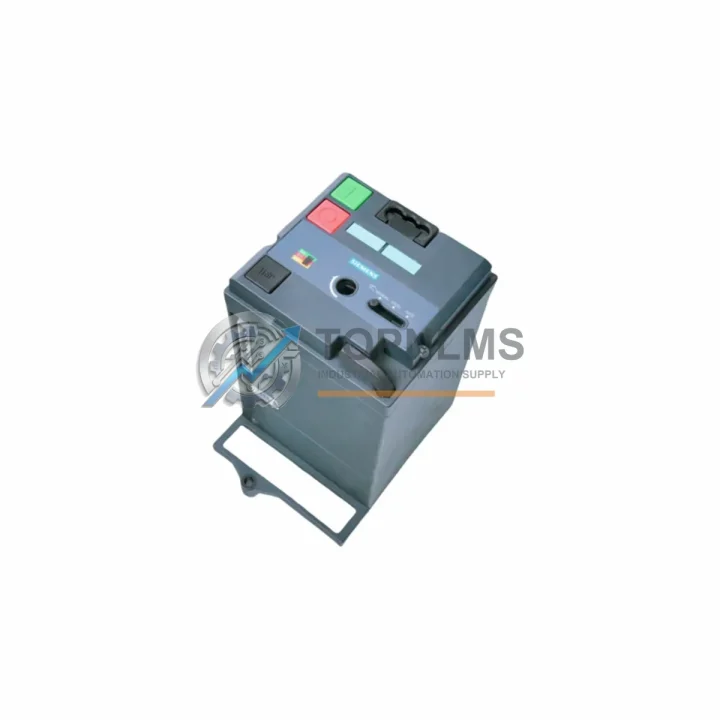

Siemens 3VL9300-3ME10 Original Motor Operator SENTRON 3VL Compatible

The Siemens 3VL9300-3ME10 is a genuine OEM motor operator accessory engineered specifically for the SENTRON 3VL series Molded Case Circuit Breakers (MCCB). In industrial facilities where power distribution reliability is non-negotiable — from automotive assembly lines to petrochemical switchgear rooms — this motor operator enables remote electrical actuation of the circuit breaker, eliminating the need for manual intervention in energized panels. For maintenance engineers managing aging low-voltage switchgear infrastructure, having a verified original spare on the shelf is the single most effective strategy to minimize unplanned downtime.

At TOPNLMS, every 3VL9300-3ME10 unit is sourced through authorized industrial supply channels, individually inspected, and function-tested prior to dispatch. Each unit ships with a 12-month replacement warranty, backed by our technical support team available via [email protected] or +86 18359293191.

Critical Technical Specs Table

Preventive Maintenance Strategy

A motor operator replacement rarely occurs in isolation. When a 3VL9300-3ME10 is flagged for replacement during a scheduled shutdown or emergency repair, experienced maintenance engineers use the opportunity to audit the entire low-voltage protection circuit. The SENTRON 3VL MCCB itself — whether a 3VL3720, 3VL4731, or 3VL5750 frame — should be inspected for contact wear, arc chamber condition, and trip unit calibration. If the breaker has exceeded its rated operating cycles, proactive replacement of the full assembly is more cost-effective than replacing the motor operator alone.

Within the same Motor Control Center (MCC) cabinet, it is standard practice to simultaneously inspect the Siemens 3VL9300-3HE10 auxiliary contact block and the 3VL9300-3AE10 alarm switch, both of which share the same accessory slot architecture as the 3VL9300-3ME10. These components degrade in parallel under high-cycle switching environments. Replacing them together during a single planned outage eliminates the risk of a secondary failure within weeks of the primary repair.

For facilities running PROFIBUS or PROFINET-integrated power management, the Siemens 3VL9300-8CB00 communication module for the 3VL series enables remote diagnostics and trip event logging — a critical upgrade for any site transitioning from manual panel inspection to predictive maintenance workflows. Pairing the motor operator with this communication module allows SCADA or BMS systems to confirm breaker position remotely, reducing the need for physical panel access in hazardous or restricted areas.

Upstream of the MCCB, the Siemens SITOP PSU100S 24 V DC power supply is commonly used to power motor operator control circuits. A degraded or undersized control power supply is a frequent root cause of intermittent motor operator faults — verifying its output voltage stability during the same maintenance window prevents misdiagnosis. Similarly, the 3VL9300-3LE10 locking device and 3VL9300-3PE10 padlock attachment should be checked for mechanical integrity to ensure LOTO (Lockout/Tagout) compliance is maintained after reassembly.

For sites managing large inventories of SENTRON 3VL breakers across multiple distribution boards, maintaining a consolidated spare parts kit — including motor operators, auxiliary contacts, shunt releases (3VL9300-1SB00), and undervoltage releases (3VL9300-1UB00) — is the most reliable strategy to achieve sub-4-hour mean time to repair (MTTR) on any low-voltage protection fault.

Strategic Replacement Solutions

The 3VL9300-3ME10 is a direct OEM replacement for aging motor operators installed on SENTRON 3VL MCCBs that have been in service for 10–20 years. Many industrial facilities continue to operate 3VL-series breakers installed in the early 2000s, and Siemens’ backward-compatible accessory design means the 3VL9300-3ME10 installs without panel modification or wiring changes. This plug-and-play compatibility is a decisive advantage over third-party alternatives, which may require adapter brackets, rewiring, or firmware reconfiguration.

For maintenance planners managing multi-site operations, standardizing on original Siemens accessories eliminates the compatibility verification burden that comes with aftermarket substitutes. The 3VL9300-3ME10 is fully interchangeable across all 3VL frame sizes it supports, meaning a single SKU can cover multiple breaker ratings in the same facility — simplifying procurement, reducing SKU proliferation in the spare parts store, and accelerating technician training.

When a motor operator failure causes an unplanned outage, the ability to source a verified original spare within 24–48 hours is the difference between a contained incident and a production loss event. TOPNLMS maintains buffer stock of high-demand SENTRON 3VL accessories precisely to support emergency procurement scenarios. All units are dispatched with a test report confirming electrical actuation function, mechanical travel, and control terminal continuity.

Support FAQ

Q1: What warranty does the 3VL9300-3ME10 carry?
Every unit sold by TOPNLMS carries a 12-month replacement warranty from the date of delivery. If the unit fails under normal operating conditions within the warranty period, we provide a free replacement or full refund — no return shipping cost to the buyer.

Q2: How is the unit tested before shipment?
Each 3VL9300-3ME10 undergoes a pre-shipment functional test covering motorized actuation (ON/OFF cycle), control terminal continuity, and mechanical engagement with a 3VL MCCB test fixture. A test record is available upon request.

Q3: Is this motor operator compatible with all SENTRON 3VL frame sizes?
The 3VL9300-3ME10 is compatible with SENTRON 3VL3, 3VL4, and 3VL5 frame MCCBs. It is not designed for 3VL1 or 3VL2 compact frames. If you are unsure of your breaker frame size, share the full breaker part number with our team and we will confirm compatibility before shipment.

Q4: Can TOPNLMS support long-term or recurring supply of this part?
Yes. TOPNLMS supports blanket order arrangements and scheduled replenishment for maintenance teams with predictable consumption. We maintain standing stock of SENTRON 3VL accessories and can provide lead-time commitments for quarterly or annual procurement plans. Contact [email protected] to discuss volume pricing and supply agreements.
