Siemens 3TF3010-1X Replacement for 3TF Series: Smooth Transition, Zero Compromise

When a legacy Siemens 3TF3010-1X DC contactor fails or reaches end-of-service life, the pressure to restore operations quickly is immense. Whether you are managing a motor control center in a chemical plant, maintaining a conveyor drive system in a steel mill, or overseeing switchgear panels in a power distribution facility, the 3TF3010-1X remains a critical switching component whose replacement must be handled with precision. TOPNLMS stocks verified Siemens 3TF3010-1X units ready for immediate dispatch, ensuring your upgrade or emergency replacement proceeds without unnecessary delays.

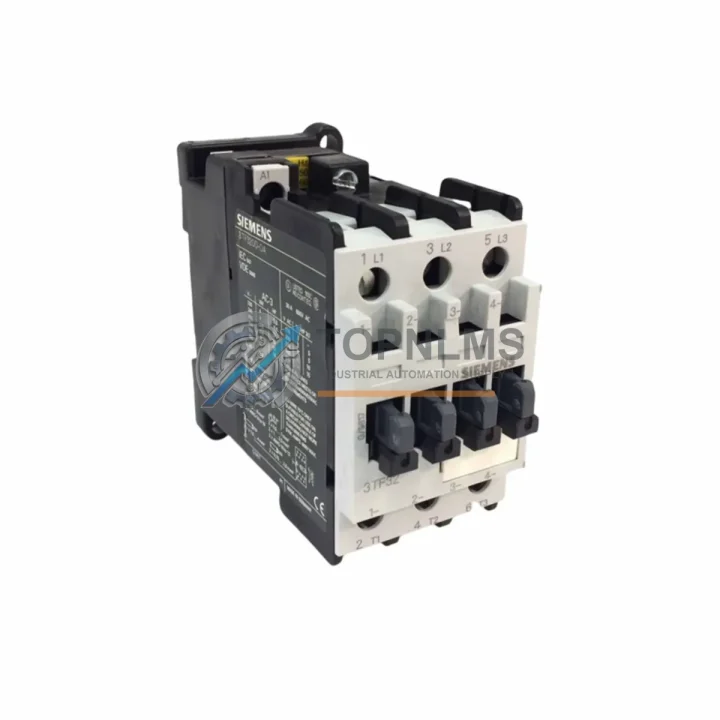

The Siemens 3TF3010-1X is a 3-pole DC-operated contactor from the classic 3TF Series, designed for switching AC loads in industrial motor control applications. Its coil operates on DC control voltage, making it well-suited for integration into PLC-driven control architectures where digital output modules supply the coil excitation signal. The compact footprint and standardized terminal layout of the 3TF Series mean that in most retrofit scenarios, the 3TF3010-1X can be installed directly into the existing mounting rail and wiring harness without panel modification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 3TF3010-1X replacement rarely involves the contactor alone. In practice, the surrounding control architecture must be evaluated to ensure the entire switching circuit performs reliably after the swap. When the 3TF3010-1X is driven by a Siemens S7-300 or S7-400 PLC digital output module — such as the SM 322 DO series — the coil excitation signal must be verified against the new unit’s DC coil voltage range. In most cases, the -1X suffix denotes a wide-range DC coil, which accommodates the 24 VDC output commonly supplied by Siemens PS 307 or PS 405 power supply modules without any rewiring.

For installations where the 3TF3010-1X is paired with a Siemens 3UA thermal overload relay, the overload relay’s trip class and current setting should be re-verified after replacement, as minor differences in contact resistance between old and new units can affect thermal behavior under sustained load. Similarly, if the contactor feeds a Siemens MICROMASTER 440 or SINAMICS G120 variable frequency drive, the upstream switching sequence and interlock logic in the PLC program should be reviewed to confirm that the new contactor’s closing time remains within the drive’s acceptable pre-charge window.

In control cabinets where space is constrained, the 3TF3010-1X’s standardized 3TF Series footprint allows direct replacement without relocating adjacent components such as Siemens 3RT auxiliary contact blocks, 3RV motor protection circuit breakers, or 3RA1 combination starters. The terminal block layout is compatible with existing ferrule-terminated wiring, so field technicians can complete the swap without re-labeling or re-routing cables. Where the original installation used a Siemens 3TX7 surge suppressor across the coil terminals, the same suppressor can be reused with the replacement unit, preserving EMC performance in the panel.

For facilities that are simultaneously upgrading their control platform from a legacy S5 system to a modern S7-1500 or ET 200SP distributed I/O architecture, the 3TF3010-1X serves as a stable interim switching element that bridges the old and new systems during phased migration. The contactor’s simple coil interface means it can be driven equally well by legacy relay outputs or modern PROFINET-connected I/O modules, eliminating the need for signal conversion hardware during the transition period.

Retrofit Guidance FAQ

Q1: Can the 3TF3010-1X be wired directly into the existing 3TF Series panel without modification?
In the vast majority of cases, yes. The 3TF Series uses a consistent terminal layout across the product family. The main power terminals (1/L1, 3/L2, 5/L3, 2/T1, 4/T2, 6/T3) and the coil terminals (A1/A2) are positioned identically to earlier 3TF variants, allowing direct drop-in replacement. Always verify the coil voltage suffix against your control circuit supply before installation.

Q2: Is the 3TF3010-1X compatible with Siemens S7 PLC digital output modules?
Yes. The -1X DC coil variant is designed to operate across a wide DC voltage range, making it directly compatible with 24 VDC digital outputs from Siemens S7-300, S7-400, S7-1200, and S7-1500 PLC families. No interposing relay is required in standard configurations. Confirm the output module’s current sourcing capacity against the coil’s inrush current specification before finalizing the design.

Q3: What should be checked when replacing a failed 3TF3010-1X in a running production line?
Before installation, inspect the auxiliary contact block for wear, verify the overload relay setting has not drifted, and confirm the coil suppressor is intact. After installation, perform a manual actuation test before restoring power, then verify the PLC output signal drives the coil to full pull-in. Check for abnormal coil temperature after the first hour of operation under load.

Q4: How does TOPNLMS ensure the replacement unit is genuine and functional?
Every 3TF3010-1X unit shipped by TOPNLMS undergoes pre-shipment inspection including coil resistance measurement, contact continuity verification, and mechanical operation check. Units are sourced from authorized supply channels and are covered by a 12-month warranty from the date of delivery. If a unit fails within the warranty period, TOPNLMS provides replacement support with priority dispatch to minimize your downtime.

Warranty Assurance

TOPNLMS provides a 12-month warranty on every Siemens 3TF3010-1X unit shipped. This warranty covers manufacturing defects, coil failure, and contact performance degradation under normal operating conditions. Each unit is individually tested prior to dispatch: coil resistance is measured against factory specification, main contact continuity is verified across all three poles, and the mechanical latch mechanism is cycled to confirm reliable operation.

Orders are processed within 1 business day of payment confirmation. Standard international shipping from Xiamen, China typically delivers within 5–12 business days depending on destination. Express options are available for urgent replacement scenarios. All units are packaged in anti-static, shock-resistant packaging to prevent transit damage.

For warranty claims, TOPNLMS provides a direct replacement or full refund within the 12-month coverage period. Our technical team is available to assist with installation questions, compatibility verification, and retrofit guidance before and after purchase. Long-term supply agreements are available for facilities requiring ongoing spare parts management for 3TF Series contactors.
