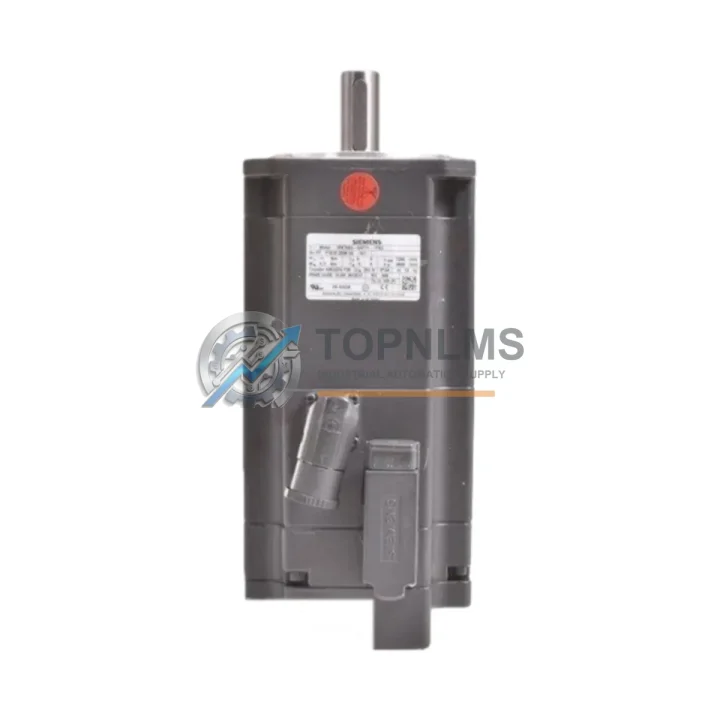

Siemens 1FK7063-5AF71-1FB3 Replacement for SIMOTICS S-1FK7

Product Overview

Siemens 1FK7063-5AF71-1FB3 Replacement for SIMOTICS S-1FK7: Seamless Transition & Legacy System Upgrade

The Siemens 1FK7063-5AF71-1FB3 is a compact, high-dynamic AC synchronous servo motor from the SIMOTICS S-1FK7 series — one of Siemens’ most widely deployed servo platforms in CNC machining centers, packaging lines, printing presses, and general-purpose motion control systems. As aging SIMOTICS S-1FK6 and earlier 1FT6 series motors reach end-of-service life, or as facilities modernize legacy SINUMERIK 840D sl and SINAMICS S120 drive architectures, the 1FK7063-5AF71-1FB3 represents a proven, drop-in-compatible upgrade path that minimizes engineering rework and production downtime.

This motor features a natural-cooled (self-ventilated) housing, a DRIVE-CLiQ encoder interface (the -1FB3 encoder suffix denotes an absolute multiturn encoder with DRIVE-CLiQ), and a smooth shaft end with standard IEC flange mounting. The rated speed, torque class, and frame size align directly with the 1FK7063 mechanical envelope, making it physically interchangeable with prior-generation 1FK7 variants and many 1FK6 predecessors in the same torque bracket.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the 1FK7063-5AF71-1FB3 typically involves coordinating several interconnected components within the same SINAMICS S120 drive system or SINUMERIK-controlled machine tool. During the retrofit process, engineers commonly address the following companion components:

On the drive side, the SINAMICS S120 Motor Module (booksize or chassis format, e.g., 6SL3120-1TE21-0AA3) must be verified for current rating compatibility with the 1FK7063 torque class. If the legacy system used a Sensor Module Cabinet-Mounted SMC30 (6SL3055-0AA00-5BA3) to decode resolver or TTL encoder signals, this module becomes redundant once the DRIVE-CLiQ encoder of the 1FK7063-5AF71-1FB3 is connected directly to the Motor Module — simplifying cabinet wiring and reducing potential failure points.

The DRIVE-CLiQ cable between the motor and the Motor Module must be replaced or re-routed to match the new connector position on the 1FK7 housing. Standard pre-assembled DRIVE-CLiQ cables (e.g., 6FX5002-2DC10 series) are available in various lengths and are compatible with the -1FB3 encoder interface. The power cable assembly (6FX5002-5DS21 series or equivalent) typically remains reusable if the bayonet connector type matches, avoiding the need for full cable replacement.

For systems running SINUMERIK 840D sl or 828D, the axis commissioning in STARTER or TIA Portal / Startdrive requires updating the motor data set. The DRIVE-CLiQ interface enables automatic motor identification (MOTID), which reads the motor nameplate data electronically and pre-populates the drive parameters — significantly reducing manual commissioning time compared to resolver-based predecessors. If the machine previously used a SINAMICS S120 Control Unit CU320-2 DP or CU320-2 PN, no firmware changes are typically required for 1FK7 series compatibility.

In multi-axis gantry or coordinated motion applications, the SINAMICS S120 Line Module (Active Line Module or Basic Line Module) and the DC link capacitor module should be inspected during the retrofit to ensure the overall drive train remains balanced. Additionally, if the machine cabinet includes a SINAMICS S120 Braking Module (for dynamic braking during E-stop), its sizing should be re-confirmed against the 1FK7063 rotor inertia specifications.

For facilities managing a broader servo motor fleet, the 1FK7063-5AF71-1FB3 is part of a scalable family. Adjacent frame sizes such as the 1FK7043 (smaller torque) and 1FK7083 (larger torque) share the same DRIVE-CLiQ encoder architecture and cable ecosystem, enabling a standardized spare parts strategy across multiple machine axes without maintaining separate encoder interface modules for each motor size.

Retrofit Guidance FAQ

Q: Can I reuse the existing power cable from my 1FK6063 or 1FT6062?
A: In most cases, yes — provided the bayonet power connector type and pin assignment match the 1FK7063-5AF71-1FB3 specification. Verify the cable part number against the 1FK7 connection diagram (Siemens SIMOTICS S-1FK7 operating instructions, Chapter “Electrical Connection”). If the legacy motor used a terminal box, a new cable assembly with the appropriate bayonet connector will be required.

Q: Do I need to replace the encoder cable?
A: Yes. The -1FB3 encoder uses a DRIVE-CLiQ interface, which is physically and electrically different from resolver or TTL/SIN-COS encoder cables used on 1FK6 or earlier 1FK7 variants (e.g., -1AA3 suffix). A new DRIVE-CLiQ cable (6FX5002-2DC10 or 6FX8002-2DC10 series) must be installed between the motor and the SINAMICS Motor Module.

Q: Will the SINUMERIK 840D sl recognize the new motor automatically?
A: Yes. The DRIVE-CLiQ interface supports automatic motor identification (MOTID). Upon first power-up after installation, the CU320-2 or NCU reads the motor’s electronic nameplate and configures the axis parameters automatically. A short recommissioning sequence in STARTER or Startdrive is still recommended to verify speed controller gains and optimize dynamic response.

Q: Is the physical footprint identical to my existing motor?
A: The 1FK7063 frame size uses an IEC 100 flange (IM B5 face mount) with standard shaft dimensions. This is mechanically compatible with 1FK6063 and 1FT6062 predecessors in the same torque class. No cabinet cutout modification or new motor bracket is required in standard installations.

Q: What communication protocol does this motor support?
A: The 1FK7063-5AF71-1FB3 communicates via DRIVE-CLiQ — Siemens’ proprietary digital interface for encoder data, motor identification, and diagnostics. This is compatible with all SINAMICS S120 and S210 drive families. It does not support PROFIBUS or PROFINET directly; those protocols are handled at the Control Unit (CU) level, not the motor encoder level.

Q: Can this motor be used as a direct replacement in a PROFINET-based machine?
A: Yes. PROFINET is the machine-level fieldbus handled by the SINAMICS Control Unit (e.g., CU320-2 PN). The motor encoder communicates via DRIVE-CLiQ to the Motor Module, which is independent of the machine-level PROFINET topology. No changes to the PROFINET configuration are required when replacing the motor.

Warranty Assurance

Every 1FK7063-5AF71-1FB3 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection covering insulation resistance, encoder signal integrity, shaft runout, and connector seating. Units are packed in anti-static, shock-absorbing packaging with individual serial number documentation.

In the event of a confirmed defect within the warranty period, TOPNLMS provides replacement support with priority processing. Our technical team is available to assist with installation verification, parameter commissioning questions, and compatibility confirmation before and after purchase. Typical lead time for in-stock units is 3–7 business days for international shipment from Xiamen, China, with DHL Express and FedEx IP options available for urgent replacement scenarios.

For procurement teams managing planned maintenance shutdowns or building strategic spare parts inventory, we offer volume pricing and reserved stock arrangements. Contact us to discuss consignment or blanket order options for multi-unit requirements.
