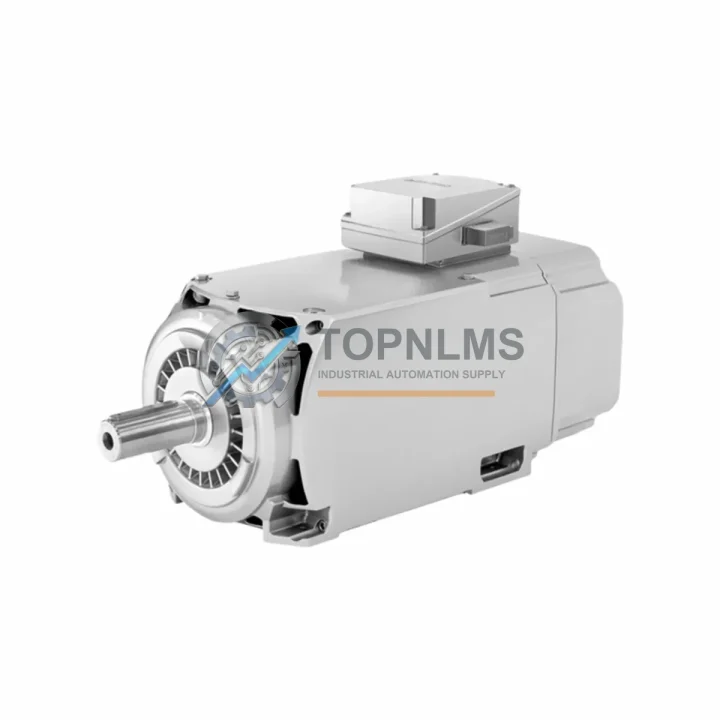

Siemens 1PH8081-1SU02-3NA1-Z Ruggedized Servo Motor

Product Overview

Siemens 1PH8081-1SU02-3NA1-Z Ruggedized Servo Motor: Industrial Resilience for Harsh Environments

The Siemens 1PH8081-1SU02-3NA1-Z is a high-performance synchronous servo motor from the SIMOTICS M-1PH8 series, engineered to deliver precise torque control and sustained reliability in the most demanding industrial environments. Designed for shaft height SH80 and equipped with an absolute encoder, this motor is purpose-built for applications where thermal stability, vibration resistance, and electromagnetic immunity are non-negotiable. Whether deployed on a continuous production line, inside a sealed control cabinet, or in a hazardous-area installation, the 1PH8081-1SU02-3NA1-Z maintains consistent performance where lesser drives fail.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial automation architectures, a servo motor does not operate in isolation — it is the kinetic endpoint of a tightly integrated control chain. The 1PH8081-1SU02-3NA1-Z is designed to work seamlessly within Siemens’ broader ecosystem of drive and control components. When paired with a SINAMICS S120 drive module, the motor benefits from closed-loop vector control that compensates for load disturbances in real time, making it ideal for high-cycle press and stamping applications. The SINAMICS S120 Control Unit CU320-2 DP provides the PROFIBUS/PROFINET backbone that connects the servo axis to upstream SIMATIC S7-1500 PLC logic, ensuring deterministic response times even under heavy network load.

For cabinet-level protection, the motor’s power and encoder cables are typically routed through SINAMICS S120 Single Motor Modules with integrated Safe Torque Off (STO) functionality, satisfying SIL 2 / PLd safety requirements without external safety relays. Supplementary SITOP PSU8600 power supply modules provide clean, regulated 24 VDC to the encoder and brake circuits, eliminating voltage sag that could corrupt absolute position data during emergency stops. Where the installation environment involves significant conducted EMI — common in arc-welding cells or variable-speed pump stations — SINAMICS line filters and output reactors are installed upstream and downstream of the drive to protect both the motor windings and the facility’s power distribution network.

Terminal connectivity within the control cabinet is handled by SIMATIC ET 200SP I/O modules, which relay digital and analog signals between the servo axis and the broader process control layer. In safety-critical zones, a SIRIUS 3SK safety relay monitors the motor’s STO channel and door-interlock circuits, providing a certified safety loop that meets machinery directive requirements. For applications requiring precise thermal management, SIMOTICS M motor temperature sensors (KTY84 or PT100) feed back into the drive’s thermal model, triggering controlled derating before insulation damage can occur — a feature particularly valued in continuous casting and extrusion lines where unplanned downtime carries significant cost.

Application in Critical Infrastructure

The Siemens 1PH8081-1SU02-3NA1-Z has established a strong track record across critical infrastructure sectors where uptime is measured in millions of dollars per hour of lost production.

In oil and gas processing, the motor drives metering pump heads and valve actuators in environments saturated with hydrocarbon vapors and corrosive H₂S. Its IP65 sealing and Class F insulation allow it to operate continuously at elevated ambient temperatures without accelerated winding degradation. Offshore platform operators particularly value the motor’s compact SH80 frame, which fits within the constrained equipment bays of FPSO vessels.

In mining and mineral processing, the 1PH8081-1SU02-3NA1-Z is deployed on conveyor positioning drives and ore-sampling gantries where fine silica dust and mechanical shock are constant threats. The motor’s robust bearing arrangement and sealed encoder housing prevent ingress that would otherwise cause premature failure in open-frame alternatives.

In power generation and grid infrastructure, the motor serves as the positioning actuator for turbine inlet guide vanes and transformer tap-changer mechanisms, where absolute encoder feedback ensures repeatable positioning accuracy after power cycling — critical for grid-synchronization sequences.

In water and wastewater treatment, the motor drives dosing pump heads and filter-press mechanisms in chemically aggressive atmospheres. Its compatibility with the SINAMICS S210 single-axis drive system allows plant engineers to implement a standardized, compact servo solution that integrates directly with existing SIMATIC S7-1200 PLC infrastructure via PROFINET, reducing commissioning time and spare-parts inventory complexity.

In metallurgy and heavy rolling mills, the motor’s high dynamic stiffness and fast torque response make it suitable for tension-control and looper-arm applications on hot-strip mills, where load reversals occur hundreds of times per shift. The absolute encoder eliminates the homing cycle required after each power interruption, a significant productivity advantage in 24/7 continuous casting operations.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a brief fault description. Our technical team typically responds within one business day.

Q2: How is each unit tested before shipment?
Every 1PH8081-1SU02-3NA1-Z unit in our inventory undergoes a pre-shipment inspection that includes visual examination of the housing, encoder connector, and shaft seal; continuity and insulation resistance testing of the motor windings; and verification of encoder signal integrity. Units that do not pass inspection are quarantined and not offered for sale. A test report is available upon request for critical procurement projects.

Q3: Is this motor compatible with my existing SINAMICS or third-party drive system?
The 1PH8081-1SU02-3NA1-Z is natively compatible with the SINAMICS S120 and SINAMICS S210 drive families using the DRIVE-CLiQ encoder interface. For integration with third-party drives, the absolute encoder signal can be adapted via a suitable encoder converter module, provided the drive supports the encoder protocol. Our technical team can advise on compatibility for specific drive configurations — contact us before ordering if you have non-standard requirements.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains a dedicated inventory of SIMOTICS M-1PH8 series motors and related Siemens automation components to support both planned maintenance schedules and emergency breakdown replacements. For customers operating fleets of machines with this motor, we offer reserved-stock arrangements and priority dispatch to minimize mean time to repair. Contact our sales team to discuss a supply agreement tailored to your maintenance strategy.
