SIEMENS 1XP8032-10 Original Industrial Spare SIMOTICS Compatible

Product Overview

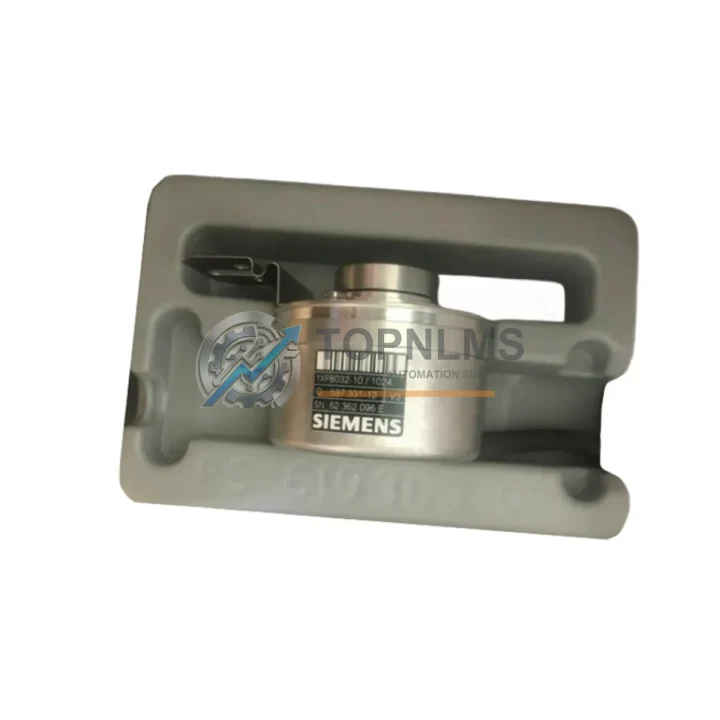

SIEMENS 1XP8032-10 Original SIMOTICS Incremental Rotary Encoder — System Stability & Industrial Spare Value

The SIEMENS 1XP8032-10 is an original incremental rotary encoder from the SIMOTICS feedback module series, engineered for precision position and speed feedback in demanding industrial drive and servo applications. As a genuine OEM spare part, it is the preferred replacement for aging or failed encoders in SINAMICS, SIMODRIVE, and MASTERDRIVES systems, ensuring seamless compatibility without parameter reconfiguration or drive re-commissioning. For maintenance engineers managing aging production lines, sourcing an original 1XP8032-10 is the fastest path to restoring full closed-loop control and eliminating unplanned downtime.

Whether you are responding to an emergency encoder failure on a CNC spindle, a servo axis fault on a packaging line, or a scheduled overhaul of a multi-axis motion system, the 1XP8032-10 delivers the signal integrity and mechanical robustness required for continuous industrial operation. Its robust housing, high-resolution pulse output, and wide operating temperature range make it equally suited for preventive replacement during planned shutdowns and for emergency stock held in the maintenance room.

Critical Technical Specs

Preventive Maintenance Strategy

Encoder failure is one of the most common causes of servo axis faults and unplanned production stoppages. A proactive maintenance strategy for any SIMOTICS-driven system should treat the 1XP8032-10 not as a reactive spare but as a scheduled replacement item with a defined service interval — typically aligned with motor bearing replacement cycles or every 20,000 operating hours, whichever comes first.

When inspecting or replacing the 1XP8032-10, maintenance teams should simultaneously audit the encoder feedback cable assembly (6FX series shielded encoder cables) for insulation wear, connector corrosion, and shield continuity. A degraded cable is frequently the root cause of intermittent encoder faults that are misdiagnosed as encoder hardware failure. Alongside the cable, the SMC10 or SMC20 Sensor Module Cabinet-Mounted units in the SINAMICS S120 cabinet should be checked for firmware currency and connector seating, as these modules process the encoder signal before it reaches the CU320-2 Control Unit.

For multi-axis systems, it is best practice to inspect all encoder connections during a single planned shutdown rather than addressing axes individually. This approach reduces total maintenance windows and ensures that a second axis does not fail shortly after the first is restored. During the same inspection, the DRIVE-CLiQ hub module (DMC20 or DME20) should be verified for proper topology recognition, and the 24 VDC power supply module feeding the encoder circuit should be load-tested to confirm stable output under full cabinet load.

In applications where the 1XP8032-10 is mounted on a motor driving a high-inertia load — such as a winding machine, extruder, or heavy conveyor — vibration-induced connector loosening is a known failure mode. Maintenance schedules should include torque verification of the M23 encoder connector and inspection of the encoder mounting flange for fretting corrosion. If the motor is also equipped with a SIMOTICS temperature sensor (KTY84 or PT100), this is an ideal time to verify sensor continuity and cross-reference motor temperature trends in the SINAMICS fault log.

For facilities managing legacy SIMODRIVE 611 systems, the 1XP8032-10 is a direct-fit replacement that eliminates the need for encoder adaptation modules. When planning a SIMODRIVE 611 overhaul, it is advisable to simultaneously stock the corresponding SIMODRIVE 611 power module (6SN1145 series) and the associated control board (6SN1118 series), as these components share similar service life curves and are frequently replaced together during major drive refurbishments.

Strategic Replacement Solutions

The 1XP8032-10 is designed as a drop-in replacement for earlier SIMOTICS encoder variants used across the SINAMICS S120, SIMODRIVE 611, and MASTERDRIVES MC/VC platforms. Because it uses the standard SIMOTICS mechanical interface and TTL/HTL signal protocol, no drive parameter changes are required upon installation — the drive recognizes the encoder automatically via DRIVE-CLiQ or through the existing encoder evaluation card.

For plants operating older SIMODRIVE 611 systems that are approaching end-of-support, stocking the 1XP8032-10 as a long-term spare is a cost-effective strategy to extend system life without committing to a full SINAMICS migration. A single encoder replacement can restore a drive axis to full performance for an additional 3–5 years of service, deferring capital expenditure while maintaining production output.

In retrofit scenarios where the original motor is being reused with a new SINAMICS S120 drive, the 1XP8032-10 can be paired with an SMC10 Sensor Module to convert the incremental signal to DRIVE-CLiQ, enabling full integration with the new drive topology without motor replacement. This approach significantly reduces retrofit cost and commissioning time compared to a full motor swap.

All units supplied by TOPNLMS are sourced from authorized channels, individually tested for signal output integrity, and shipped with full documentation. Each 1XP8032-10 is covered by a 12-month warranty from the date of shipment, with pre-shipment functional testing records available upon request.

Support FAQ

Q1: Is the 1XP8032-10 compatible with both SINAMICS S120 and SIMODRIVE 611 systems?
Yes. The 1XP8032-10 uses the standard SIMOTICS incremental encoder interface (TTL/HTL, A/B/Z channels) and is mechanically and electrically compatible with both SINAMICS S120 (via SMC10/SMC20 sensor module) and SIMODRIVE 611 (direct encoder input). No drive parameter modification is required for a like-for-like replacement.

Q2: What is the recommended inventory strategy for this encoder?
For facilities with 3 or more SIMOTICS-driven axes, we recommend holding a minimum of 1–2 units of the 1XP8032-10 as on-site hot spares. Encoder MTBF in continuous industrial operation is typically 30,000–50,000 hours, but environmental factors (vibration, contamination, cable stress) can significantly reduce service life. A pre-positioned spare eliminates lead-time risk during emergency shutdowns.

Q3: How is the encoder tested before shipment?
Each 1XP8032-10 unit undergoes pre-shipment functional testing including signal output verification (A, B, Z channel integrity), supply voltage range check, and mechanical rotation test. A test report is available upon request. Units are packed in anti-static, shock-resistant packaging to prevent transit damage.

Q4: What does the 12-month warranty cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It includes free replacement or full refund for confirmed defective units. The warranty does not cover damage resulting from incorrect installation, overvoltage, or mechanical impact. Our technical team is available to assist with installation guidance and compatibility verification prior to installation.
