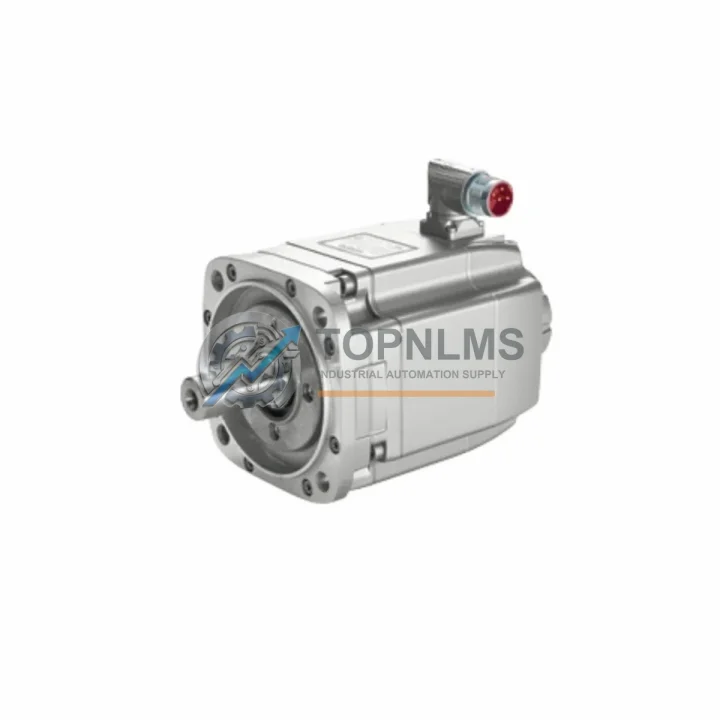

Siemens 1FK7063-2AF71-1RH1 Ruggedized Servo Motor for Harsh Environments

Product Overview

Siemens 1FK7063-2AF71-1RH1 Ruggedized Servo Motor for Harsh Environments

The Siemens 1FK7063-2AF71-1RH1 is a compact, high-performance permanent-magnet synchronous servo motor from the SIMOTICS S-1FK7 series — engineered specifically for demanding industrial environments where reliability is non-negotiable. Designed to operate continuously in conditions characterized by elevated temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this motor delivers consistent torque output and precise speed control across the full operating cycle. Whether deployed on a high-speed packaging line, a precision CNC machining center, or a continuous-process chemical plant, the 1FK7063-2AF71-1RH1 maintains stable performance where lesser drives fail.

Built to Siemens’ stringent quality standards in Germany, this motor integrates seamlessly with the SINAMICS S120 drive system — one of the most widely adopted servo drive platforms in global industrial automation. The native compatibility between the 1FK7063-2AF71-1RH1 and the SINAMICS S120 power module eliminates integration risk and simplifies commissioning through DRIVE-CLiQ digital communication, which transmits encoder data, motor identification, and thermal monitoring signals over a single cable. This architecture reduces wiring complexity inside the control cabinet and improves diagnostic transparency for maintenance teams operating in remote or hazardous locations.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the servo motor is only one element of a tightly integrated motion and safety system. The 1FK7063-2AF71-1RH1 is designed to operate as part of a coordinated drive train that typically includes the SINAMICS S120 booksize power module, the SINAMICS S120 Control Unit CU320-2 DP, and the SIMATIC S7-1500 PLC — all communicating over PROFINET IO with IRT (isochronous real-time) synchronization. This deterministic communication backbone ensures that position commands, torque limits, and safety signals are exchanged within microsecond-level cycle times, which is critical for multi-axis coordinated motion in press lines, robotic welding cells, and precision assembly equipment.

For applications requiring functional safety, the 1FK7063-2AF71-1RH1 can be paired with the SINAMICS S120 Safety Integrated functions — including STO (Safe Torque Off), SS1 (Safe Stop 1), and SLS (Safely Limited Speed) — without the need for external safety relays or contactors. This integrated safety approach reduces the component count inside the control cabinet, lowers the probability of wiring errors, and simplifies SIL 2 / PLd certification audits. When the motor is installed in a zone requiring additional protection, the SIRIUS 3SK safety relay module or the SIMATIC ET 200SP fail-safe I/O module can be used to extend the safety circuit to field-level sensors and emergency stop devices.

Power quality and supply stability are equally important in harsh industrial environments. The 1FK7063-2AF71-1RH1 is typically fed through a SINAMICS S120 Active Line Module, which provides regenerative braking capability and active harmonic filtering — protecting the motor from voltage spikes, line transients, and harmonic distortion that are common in heavy industrial facilities with large inductive loads. For installations where the supply voltage is unstable, a SITOP PSU8600 industrial power supply can be added upstream to regulate the 24 VDC control voltage and protect the DRIVE-CLiQ encoder interface from brownout-induced data corruption.

Thermal management is another critical consideration. In high-duty-cycle applications, the motor’s winding temperature is continuously monitored via the integrated KTY84 temperature sensor, which feeds real-time thermal data back to the SINAMICS S120 drive. If the winding temperature approaches the Class F insulation limit, the drive automatically reduces the output current to protect the motor — a feature that prevents catastrophic failure during unplanned production surges. For cabinet-level thermal management, the SIEMENS SIRIUS 3RU2 thermal overload relay provides an additional layer of protection for auxiliary motors and cooling fans within the same enclosure.

Application in Critical Infrastructure

The Siemens 1FK7063-2AF71-1RH1 servo motor has established a strong track record in critical infrastructure sectors where unplanned downtime carries severe operational and financial consequences. In oil and gas upstream facilities, this motor drives precision valve actuators and wellhead control systems that must operate reliably in Class I, Division 2 hazardous areas — where flammable vapors may be present intermittently. Its IP64 protection rating and robust shaft seal design prevent hydrocarbon contamination of the bearing cavity, extending mean time between maintenance intervals in offshore and onshore drilling environments.

In mining operations, the 1FK7063-2AF71-1RH1 is deployed in conveyor positioning systems, ore-sorting machinery, and underground ventilation control drives. The motor’s ability to deliver high peak torque — up to three times its rated continuous torque — makes it well-suited for the frequent start-stop cycles and high inertia loads characteristic of bulk material handling. Its vibration resistance, validated against IEC 60068-2-6, ensures that the encoder alignment and bearing preload remain within specification even when the motor is mounted on structures subject to continuous mechanical shock from blasting operations or heavy vehicle traffic.

Power generation facilities — including thermal, hydro, and wind — rely on the 1FK7063-2AF71-1RH1 for turbine blade pitch control, generator excitation adjustment, and auxiliary system positioning. In these applications, the motor’s DRIVE-CLiQ absolute multiturn encoder eliminates the need for homing routines after power restoration, which is critical for systems that must return to a defined safe position immediately following a grid fault or emergency shutdown. Water treatment plants use this motor in chemical dosing pump drives and filter backwash valve actuators, where the combination of corrosion-resistant housing materials and sealed bearing design provides reliable service in high-humidity, chemically aggressive atmospheres.

In steel mills and aluminum smelters, the 1FK7063-2AF71-1RH1 controls rolling mill gap adjustment, coiler tension regulation, and ladle transfer positioning — applications that demand both high dynamic response and sustained thermal stability under continuous duty cycles. The motor’s Class F insulation system and integrated thermal monitoring provide the headroom needed to sustain rated torque output even when ambient temperatures in the mill bay exceed 40°C during summer production campaigns.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects, premature bearing failure, encoder malfunction, winding insulation breakdown, and any functional failure that occurs under normal operating conditions within the rated specifications. To initiate a warranty claim, contact TOPNLMS at [email protected] with the order number, a description of the fault, and any available diagnostic data from the SINAMICS drive. Our technical team will assess the claim within 2 business days and arrange for replacement or repair at no additional cost to the buyer.

Q2: How is each unit tested before shipment?
Every 1FK7063-2AF71-1RH1 unit in our inventory undergoes a pre-shipment inspection that includes visual examination of the housing, shaft, and connector integrity; insulation resistance testing (megger test) between windings and frame; encoder signal verification via DRIVE-CLiQ readout; and rotational smoothness check across the full speed range. Units that do not pass all inspection criteria are quarantined and not offered for sale. A test report is available upon request for customers with documented quality assurance requirements.

Q3: Is this motor compatible with my existing SINAMICS S120 drive system?
Yes. The 1FK7063-2AF71-1RH1 is fully compatible with all SINAMICS S120 single-axis and multi-axis booksize and chassis format drive modules that support DRIVE-CLiQ motor identification. The drive automatically reads the motor’s electronic nameplate upon connection, eliminating manual parameter entry and reducing commissioning time. Compatibility has been verified with SINAMICS S120 firmware versions V4.7 and above. If you are integrating this motor into an existing multi-axis system, TOPNLMS can provide application engineering support to verify axis configuration and safety function parameterization.

Q4: Can TOPNLMS guarantee long-term supply and provide replacement support for discontinued variants?
Yes. TOPNLMS maintains a dedicated inventory of SIMOTICS S-1FK7 series motors, including the 1FK7063-2AF71-1RH1 and closely related variants such as the 1FK7063-2AF71-1EA1 and 1FK7063-2AF71-1AA1, to support customers with long production lifecycles and multi-year maintenance contracts. For OEMs and system integrators managing installed bases of 50 or more axes, we offer reserved stock agreements and priority fulfillment to ensure that replacement units are available within 5 business days of a field failure notification. Contact our sales team to discuss a tailored supply continuity plan for your facility.
