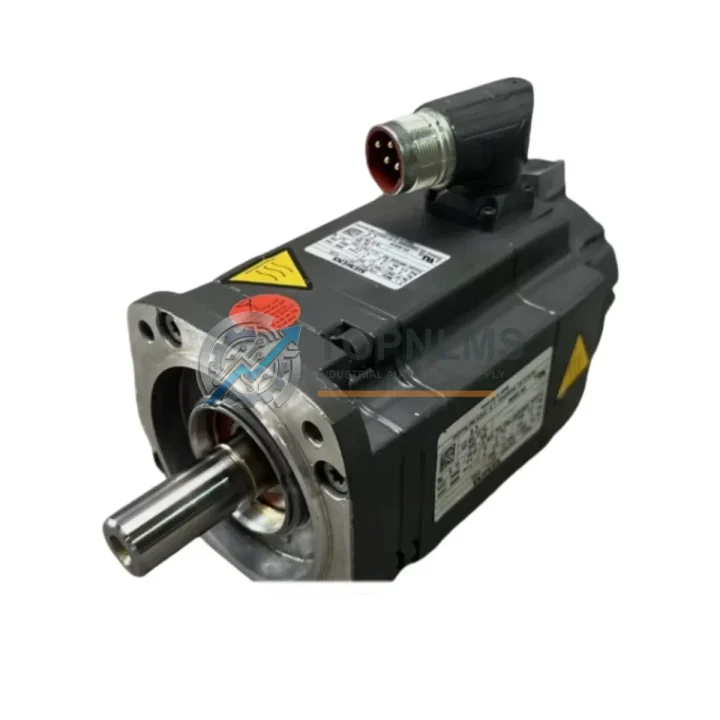

Siemens 1FK7042-2AF71-1CG0 Original Industrial Spare S-1FK7 Compatible

Product Overview

Siemens 1FK7042-2AF71-1CG0 Original Industrial Spare S-1FK7 Compatible: System Stability and Industrial Spare Parts Maintenance Value

The Siemens 1FK7042-2AF71-1CG0 is a compact, high-performance AC servo motor from the SIMOTICS S-1FK7 series, engineered for precision motion control in demanding industrial automation environments. Whether you are managing a planned maintenance shutdown, responding to an unscheduled line stoppage, or building a strategic spare parts inventory for aging SINAMICS-driven systems, this motor represents a critical asset in your maintenance toolkit. Its compact frame, integrated holding brake, and full compatibility with Siemens SINAMICS S120 and S110 drive systems make it a direct, drop-in replacement that minimizes engineering rework and reduces mean time to repair (MTTR) on the production floor.

In modern manufacturing facilities — from automotive body shops and packaging lines to CNC machining centers and material handling conveyors — servo motor failures are among the most disruptive events a maintenance team can face. The 1FK7042-2AF71-1CG0 is stocked and tested to ensure that when a failure occurs, your team can restore motion control capability within hours, not days. Every unit shipped from TOPNLMS undergoes functional verification and is backed by a 12-month warranty, giving procurement managers and maintenance engineers the confidence to approve the purchase without extended qualification cycles.

Critical Technical Specs Table

Preventive Maintenance Strategy

A servo motor failure rarely occurs in isolation. In a typical SINAMICS S120 multi-axis drive cabinet, the 1FK7042-2AF71-1CG0 operates as part of an integrated motion system where the health of surrounding components directly affects motor longevity and system uptime. A disciplined preventive maintenance program should treat this motor as one node in a broader electrical and mechanical ecosystem.

During scheduled inspections, maintenance engineers should simultaneously evaluate the SINAMICS S120 Control Unit (CU320-2 DP or CU320-2 PN) for firmware currency and fault log history, as communication errors at the controller level are frequently misdiagnosed as motor faults. The SINAMICS S120 Motor Module (single-axis or double-axis booksize) that powers this motor should be checked for DC bus voltage stability, IGBT thermal performance, and capacitor aging — components that degrade on a similar timeline to the servo motor itself.

The DRIVE-CLiQ cable connecting the 1FK7042-2AF71-1CG0 to its Motor Module is a common failure point in high-vibration environments. Inspecting and stocking a spare DRIVE-CLiQ signal cable (MOTION-CONNECT 800 series) is strongly recommended, as encoder communication faults caused by cable degradation can produce symptoms identical to motor encoder failure, leading to unnecessary motor replacements. Similarly, the power cable assembly (MOTION-CONNECT 500 or 800) between the Motor Module and the motor should be inspected for insulation wear at cable entry points and connector seating integrity.

For systems using the integrated holding brake, the brake relay module or brake control output on the Motor Module should be tested for correct release voltage and response time. A sluggish or failed brake release is a leading cause of motor winding damage during axis homing sequences. If your cabinet includes a Siemens SITOP power supply module providing 24 VDC control voltage, verify output voltage stability under load — undervoltage conditions at the control bus can cause erratic encoder behavior and spurious fault trips on the servo axis.

At the I/O level, the SIMATIC ET 200SP or ET 200M distributed I/O modules interfacing with the motion controller should be inspected for terminal corrosion, loose wiring, and module status LEDs. In systems where the servo axis is coordinated by a SIMATIC S7-300 or S7-1500 PLC, reviewing the PLC’s motion control function blocks and axis configuration parameters during a planned outage can prevent nuisance faults after motor replacement. Finally, terminal blocks and shield clamps within the drive cabinet — often overlooked during routine maintenance — should be re-torqued and inspected for oxidation, particularly in humid or chemically aggressive plant environments.

Strategic Replacement Solutions

The 1FK7042-2AF71-1CG0 is a direct replacement for aging or failed units of the same part number within existing SIMOTICS S-1FK7 installations. Because Siemens maintains backward compatibility within the 1FK7 compact series, this motor can also serve as a functional replacement for earlier 1FK7 variants with equivalent frame size and torque ratings, provided the encoder type and brake configuration are matched during commissioning. This compatibility significantly reduces the engineering burden on maintenance teams who would otherwise need to re-engineer motor mounts, cable assemblies, or drive parameters.

For facilities managing legacy SINAMICS S110 single-axis systems — a platform that has reached end-of-mainstream-support — stocking the 1FK7042-2AF71-1CG0 as a critical spare is a cost-effective strategy to extend system life without committing to a full drive and motor platform migration. The motor’s DRIVE-CLiQ interface ensures seamless parameter upload from the existing Motor Module, and the absolute encoder eliminates the need for homing routines after replacement, dramatically reducing commissioning time during emergency repairs.

Procurement teams managing multi-site operations should consider consolidating 1FK7 spare motor inventory across facilities to reduce per-unit holding costs while maintaining adequate coverage for high-criticality axes. TOPNLMS supports bulk procurement inquiries and can provide lead time commitments for scheduled maintenance windows, ensuring that spare units arrive tested, labeled, and ready for immediate installation.

Support FAQ

Q1: Is the 1FK7042-2AF71-1CG0 covered by a warranty, and what does it include?
Yes. Every unit supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Prior to shipment, each motor undergoes functional verification including encoder communication check and brake operation test. Warranty claims are supported via email at [email protected].

Q2: How do I verify compatibility with my existing SINAMICS drive system before ordering?
Compatibility is primarily determined by the Motor Module type, DC bus voltage, and DRIVE-CLiQ protocol version in your drive cabinet. The 1FK7042-2AF71-1CG0 is natively compatible with SINAMICS S120 and S110 Motor Modules. If you are unsure, share your existing motor nameplate data and drive configuration with our technical team at [email protected] and we will confirm compatibility before you commit to the purchase.

Q3: What is the recommended inventory strategy for this motor in a multi-axis production line?
For lines with three or more axes using 1FK7 compact motors, maintaining at least one spare unit per motor frame size is standard practice. For high-criticality axes — such as those controlling indexing, clamping, or precision positioning — a dedicated hot spare is justified by the cost of unplanned downtime. TOPNLMS can support scheduled replenishment orders to keep your spare parts inventory current without overstocking.

Q4: How quickly can the 1FK7042-2AF71-1CG0 be installed as a field replacement?
For a trained servo technician familiar with SINAMICS commissioning tools (STARTER or TIA Portal with Startdrive), a complete motor swap — including mechanical installation, cable reconnection, and drive parameter restore from backup — typically takes 2 to 4 hours on a prepared axis. The absolute encoder eliminates the homing step, and the DRIVE-CLiQ interface allows automatic motor data upload, further reducing commissioning time compared to resolver-based or incremental encoder motors.
