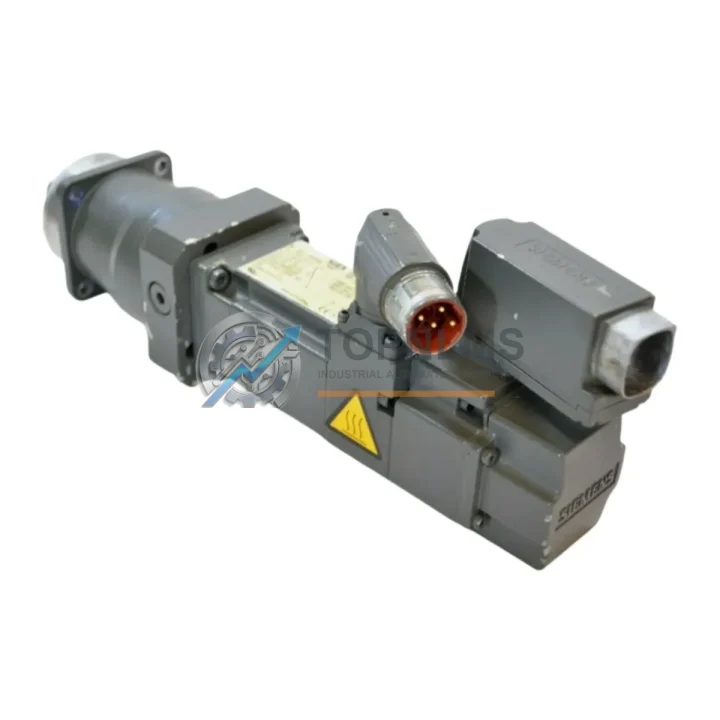

Siemens 1FK7022-5AK71-1LG5 Ruggedized Servo Motor

Product Overview

Siemens 1FK7022-5AK71-1LG5 Ruggedized Servo Motor: Industrial Resilience for Harsh Environments

The Siemens 1FK7022-5AK71-1LG5 is a compact synchronous servo motor from the SIMOTICS S-1FK7 series — engineered for continuous, high-precision motion control in the most demanding industrial environments. Designed and manufactured in Germany to Siemens’ exacting quality standards, this motor delivers exceptional torque density, thermal stability, and electromagnetic compatibility, making it the preferred choice for system integrators and maintenance engineers operating in high-temperature, high-humidity, dusty, vibration-intensive, or electromagnetically noisy facilities.

Whether deployed on a continuous production line in a steel mill, a packaging machine in a food-processing plant, or a precision axis in a semiconductor fab, the 1FK7022-5AK71-1LG5 maintains stable, repeatable performance where lesser motors fail. Its compact frame reduces cabinet footprint while its ruggedized construction resists the ingress of particulates and moisture — critical in environments where unplanned downtime translates directly to production loss and safety risk.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial automation architectures, a servo motor does not operate in isolation — it is the final actuator in a tightly integrated control chain. The Siemens 1FK7022-5AK71-1LG5 is designed to work seamlessly within Siemens’ SINAMICS and SIMATIC ecosystems, ensuring system-level reliability from the controller to the load.

At the drive level, this motor pairs directly with the SINAMICS S120 servo drive via the DRIVE-CLiQ interface, enabling closed-loop vector control with sub-millisecond response times. For smaller machine axes, the SINAMICS V90 servo drive offers a cost-optimized alternative while maintaining full compatibility with the 1FK7 encoder protocol. The DRIVE-CLiQ connection eliminates manual encoder parameterization, reducing commissioning time and the risk of configuration errors in the field.

At the controller level, the motor integrates naturally with SIMATIC S7-1500 PLC motion control functions via PROFINET, enabling synchronized multi-axis coordination. For legacy installations, the SIMATIC S7-300 with a FM 357-2 motion module provides a proven upgrade path. Safety-critical applications benefit from the SINAMICS S120 Safety Integrated functions — including STO (Safe Torque Off) and SS1 (Safe Stop 1) — which comply with IEC 62061 SIL 2 and EN ISO 13849-1 PL d, eliminating the need for external safety relays in many configurations.

Power quality and protection are equally important in harsh industrial environments. A SITOP PSU100S 24 V DC power supply provides stable, filtered DC bus voltage to the control cabinet, protecting sensitive I/O modules and communication cards from voltage transients common in heavy-industry switchgear rooms. Line-side SINAMICS line filters and output reactors suppress conducted EMI, protecting both the motor winding insulation and adjacent instrumentation. For cabinet-level protection, SIRIUS 3RV2 motor protection circuit breakers provide coordinated short-circuit and overload protection, while SIRIUS 3RT2 contactors handle switching duties with rated mechanical endurance exceeding 10 million operations.

Communication integrity is maintained through SCALANCE X industrial Ethernet switches, which provide managed PROFINET connectivity with redundancy options suitable for ring topologies in continuous-process plants. Where fieldbus legacy infrastructure exists, PROFIBUS DP communication modules for the S7-1500 ensure backward compatibility without sacrificing real-time performance.

Application in Critical Infrastructure

The Siemens 1FK7022-5AK71-1LG5 has established a strong track record across the most demanding sectors of critical infrastructure worldwide.

Oil & Gas: In upstream and midstream facilities, servo-driven valve actuators and metering pump drives must operate reliably in the presence of explosive atmospheres, H₂S exposure, and extreme temperature cycling. The 1FK7022-5AK71-1LG5’s IP65 sealing and Class F insulation make it suitable for Zone 2 classified areas when installed within appropriately rated enclosures, providing precise flow control on injection skids and compressor anti-surge systems.

Mining & Mineral Processing: Conveyor positioning systems, ore-sorting machines, and flotation cell agitators in underground and open-pit mines subject drive components to continuous vibration, coal dust, and high ambient temperatures. The motor’s robust permanent-magnet rotor construction and sealed bearing arrangement resist contamination ingress, maintaining positioning accuracy over extended service intervals between planned maintenance shutdowns.

Power Generation & Utilities: In thermal and hydroelectric power plants, servo axes control turbine inlet guide vanes, fuel control valves, and excitation system components. The 1FK7022-5AK71-1LG5’s low cogging torque and high dynamic response enable smooth, precise positioning that directly impacts plant efficiency and grid stability. Its compatibility with SIMATIC PCS 7 DCS via SINAMICS drive objects simplifies integration into plant-wide control architectures.

Water & Wastewater Treatment: Dosing pump drives, sluice gate actuators, and aeration system controls in water treatment facilities demand motors that resist the corrosive effects of chlorine, ozone, and high-humidity environments. The motor’s sealed construction and corrosion-resistant surface treatment extend service life in these chemically aggressive conditions.

Metallurgy & Heavy Industry: Rolling mill positioning systems, continuous casting machine drives, and ladle transfer car controls in steel and aluminum plants operate in environments with radiated heat, metal dust, and intense electromagnetic fields from arc furnaces. The 1FK7022-5AK71-1LG5’s EMC-compliant design and thermally stable insulation system maintain reliable operation in these extreme conditions, supporting the high-cycle, high-duty-factor demands of 24/7 production schedules.

Security & Quality FAQ

Q1: What warranty coverage is provided with the Siemens 1FK7022-5AK71-1LG5?
All units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects, premature bearing failure, encoder malfunction, and winding insulation breakdown under normal operating conditions. Warranty claims are processed with priority, and replacement units are dispatched from our Xiamen warehouse within 3 business days of fault confirmation.

Q2: How is each unit tested before shipment?
Every 1FK7022-5AK71-1LG5 unit undergoes a pre-shipment inspection protocol that includes visual inspection for physical damage, encoder communication verification via DRIVE-CLiQ handshake test, insulation resistance measurement (≥ 100 MΩ at 500 V DC), and shaft runout check. Units that do not pass all inspection criteria are quarantined and not shipped. A test report is available upon request.

Q3: Is this motor compatible with my existing SINAMICS or SIMATIC installation?
The 1FK7022-5AK71-1LG5 is fully compatible with SINAMICS S120 and SINAMICS V90 drive systems using DRIVE-CLiQ connectivity. It integrates with SIMATIC S7-1500 and S7-300/400 motion control functions via standard Siemens drive object configuration in TIA Portal or STEP 7. If you are replacing an existing 1FK7 series motor, the mechanical and electrical interfaces are backward-compatible within the same frame size. Contact our technical team with your existing drive firmware version for confirmation.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains a dedicated inventory of Siemens SIMOTICS S-1FK7 series motors, including the 1FK7022-5AK71-1LG5, to support both planned maintenance schedules and emergency breakdown replacements. We offer same-day dispatch for in-stock items, export documentation for international shipments, and a technical consultation service to assist with cross-referencing discontinued part numbers to current equivalents. Long-term supply agreements are available for OEMs and system integrators requiring guaranteed stock allocation.
