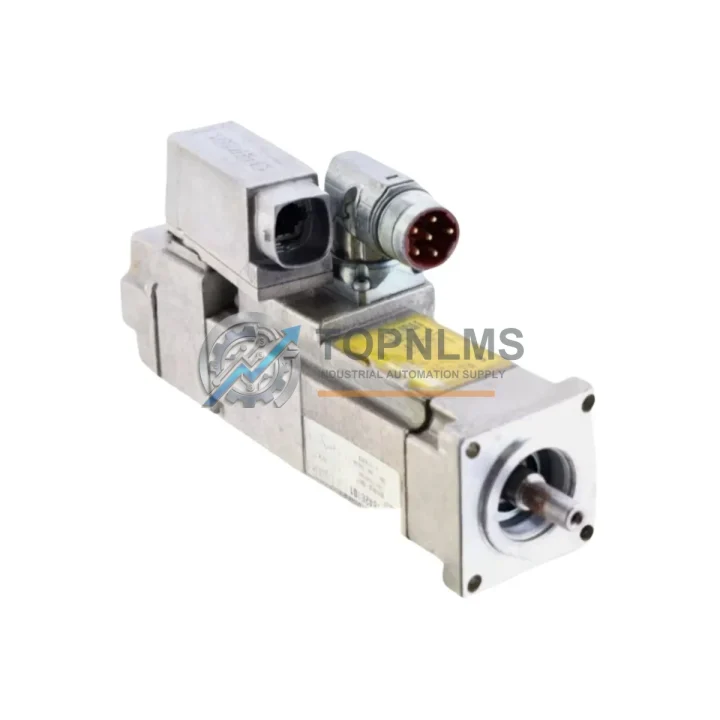

Siemens 1FK7022-5AK71-1HH0 Ruggedized Servo Motor

Product Overview

Siemens 1FK7022-5AK71-1HH0 Ruggedized Servo Motor: Industrial Resilience for Harsh Environments

The Siemens 1FK7022-5AK71-1HH0 is a compact, high-performance servo motor from the SIMOTICS S-1FK7 series — engineered to deliver precise motion control under the most demanding industrial conditions. Designed and manufactured in Germany to Siemens’ exacting quality standards, this servo motor is built for continuous-duty operation in environments characterized by elevated temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference (EMI). Whether deployed on a high-speed packaging line, a precision CNC machining center, or a safety-critical process control loop in a petrochemical facility, the 1FK7022-5AK71-1HH0 maintains stable, repeatable performance where lesser drives fail.

At TOPNLMS, we stock the Siemens 1FK7022-5AK71-1HH0 as a verified genuine component, fully tested prior to dispatch and backed by our 12-month quality warranty. Every unit undergoes incoming inspection and functional verification before it leaves our warehouse in Xiamen, China, ensuring that what arrives on your production floor is ready to install and run.

Rugged Specifications Table

Comprehensive Protection Solutions

The Siemens 1FK7022-5AK71-1HH0 does not operate in isolation — it is the motion-control heart of a broader automation architecture that must remain cohesive and fault-tolerant across every layer. In a typical SINAMICS S120 multi-axis system, this servo motor connects directly to a SINAMICS S120 Motor Module (such as the 6SL3120-1TE21-0AA3) via the DRIVE-CLiQ cable, enabling closed-loop vector control with sub-millisecond response times. The SINAMICS S120 Control Unit CU320-2 DP or CU320-2 PN orchestrates axis coordination, safety functions, and PROFIBUS/PROFINET communication — ensuring that even in the event of a network disturbance, the drive system maintains safe torque-off (STO) compliance per IEC 62061.

On the power supply side, a SINAMICS S120 Active Line Module (ALM) provides clean, regulated DC bus voltage to the motor module, with active front-end technology that suppresses harmonic distortion and protects upstream equipment from voltage spikes generated during regenerative braking. This is particularly critical in high-cycle applications such as press feeders or winding machines, where the 1FK7022-5AK71-1HH0 may reverse direction hundreds of times per hour.

For cabinet-level protection, the servo motor’s power and signal cables should be routed through Siemens SIRIUS 3RT2 contactors and protected by 3RV2 motor starter protectors, which provide overload and short-circuit protection without introducing additional latency into the safety chain. In installations where the control cabinet also houses a SIMATIC S7-1500 PLC — for example, a CPU 1516-3 PN/DP — the 1FK7022-5AK71-1HH0 integrates seamlessly via the TIA Portal engineering framework, allowing motion tasks to be programmed in PLCopen-compliant Motion Control function blocks alongside standard ladder or structured text logic.

Where functional safety is mandated — such as in machinery subject to EN ISO 13849-1 or IEC 62061 — the SINAMICS S120 Safety Integrated functions (STO, SS1, SLS, SDI) embedded in the drive firmware eliminate the need for external safety relays for many common safety functions. For applications requiring hardwired safety loops, a SIRIUS 3SK1 safety relay module or a SIMATIC ET 200SP F-DI/F-DO module can be integrated into the same cabinet, providing certified PLd/SIL2 protection with full diagnostic coverage. Terminal connectivity within the cabinet is typically handled via SIMATIC S7-1500 CM PtP communication modules or ET 200SP BaseUnit BU15-P16+A0+2D terminal modules, which support hot-swappable I/O replacement without powering down the entire rack — a significant advantage during planned maintenance windows on continuous production lines.

Application in Critical Infrastructure

The Siemens 1FK7022-5AK71-1HH0 is deployed across a wide spectrum of critical industrial infrastructure where unplanned downtime carries severe operational and financial consequences.

In oil and gas upstream and midstream facilities, compact servo motors of this class are used to drive valve actuators, metering pump heads, and pipeline pig launcher mechanisms. The IP65 sealing and wide operating temperature range make the 1FK7022-5AK71-1HH0 suitable for installation in Zone 2 classified areas when paired with an appropriate ATEX-rated enclosure and a certified drive system. The motor’s low rotor inertia enables rapid response to flow-control setpoint changes, reducing product loss during batch transitions.

In mining and mineral processing, servo motors in the SIMOTICS S-1FK7 family are used on conveyor indexing drives, ore sampling systems, and flotation cell agitator positioning mechanisms. The robust bearing design and vibration-resistant construction allow continuous operation in environments where floor-transmitted shock loads from blasting or heavy crushing equipment would cause premature failure in standard industrial motors.

In power generation and electrical utilities, the 1FK7022-5AK71-1HH0 finds application in turbine governor actuators, transformer tap-changer drives, and circuit breaker charging mechanisms. The absolute encoder with DRIVE-CLiQ interface provides exact position feedback without the need for homing routines after a power interruption — a critical feature in grid-connected equipment where restart time directly affects system stability.

In water and wastewater treatment, servo motors of this type control dosing pump heads, filter backwash valve actuators, and UV disinfection system positioning stages. The corrosion-resistant housing and sealed bearing arrangement resist the humid, chemically aggressive atmosphere typical of treatment plant motor control centers.

In metallurgy and steel production, the 1FK7022-5AK71-1HH0 is used in rolling mill auxiliary drives, ladle car positioning systems, and continuous casting mold oscillation mechanisms. The motor’s thermal class F insulation and forced-convection-compatible design allow it to sustain rated torque output even when ambient temperatures in the mill bay exceed 40°C during summer production campaigns.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the Siemens 1FK7022-5AK71-1HH0?
All units sold by TOPNLMS carry a 12-month warranty from the date of shipment. This covers manufacturing defects and verified functional failures under normal operating conditions. In the event of a warranty claim, we provide advance replacement support to minimize your production downtime, and our technical team will assist with root-cause analysis documentation for your maintenance records.

Q2: How is each unit tested before shipment?
Every Siemens 1FK7022-5AK71-1HH0 in our inventory undergoes a multi-point incoming inspection that includes visual examination for physical damage, encoder interface continuity verification, winding resistance measurement, and insulation resistance testing. Units that do not pass all inspection criteria are quarantined and not offered for sale. A test report summary is available upon request for quality-critical procurement processes.

Q3: Is the 1FK7022-5AK71-1HH0 compatible with my existing SINAMICS or SIMATIC system?
The 1FK7022-5AK71-1HH0 is natively compatible with SINAMICS S120 and SINAMICS V90 drive systems via the DRIVE-CLiQ interface. It integrates with SIMATIC S7-300, S7-400, S7-1200, and S7-1500 PLC families through the respective drive communication modules. If you are replacing an existing 1FK7 series motor, the mechanical and electrical interface dimensions are standardized within the series, simplifying drop-in replacement. Please share your existing drive configuration with our technical team and we will confirm compatibility before you commit to purchase.

Q4: Can TOPNLMS support long-term supply continuity for this part?
Yes. TOPNLMS maintains strategic stock of high-demand Siemens SIMOTICS S-1FK7 series components to support customers with ongoing MRO (maintenance, repair, and operations) requirements. We can accommodate blanket purchase orders, scheduled release agreements, and priority reservation arrangements for customers with critical spare-part programs. Contact our sales team to discuss a supply agreement tailored to your production schedule and safety stock targets.
