Siemens 1FK6101-8AF71-1 Replacement for SIMOTICS S 1FK6: Smooth Transition & Legacy System Compatibility

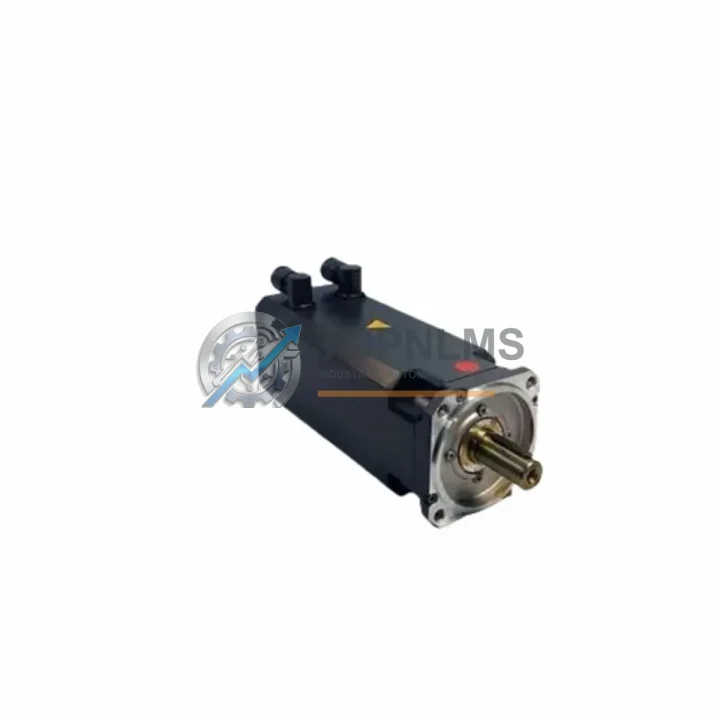

When your existing SIMOTICS S 1FK6 series servo drive system reaches end-of-life or a critical component fails, unplanned downtime becomes your most expensive problem. The Siemens 1FK6101-8AF71-1 — a high-performance synchronous servo motor with integrated holding brake from the SIMOTICS S 1FK6 family — is a proven replacement and upgrade solution for aging or discontinued servo axis configurations across a wide range of industrial automation platforms.

Whether you are migrating from an earlier 1FK6 variant, replacing a failed unit in a SINUMERIK CNC machine tool, or modernizing a SINAMICS S120 multi-axis drive system, the 1FK6101-8AF71-1 is engineered to deliver a drop-in compatible upgrade path with minimal re-engineering. Its shaft height, flange dimensions, and encoder interface are consistent with the broader 1FK6 product family, allowing direct mechanical substitution in most retrofit scenarios without modification to the machine bed or motor mounting bracket.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful 1FK6101-8AF71-1 retrofit rarely involves the motor alone. In practice, the migration scope typically extends to several interconnected components within the same control cabinet or drive line. When replacing a servo axis in a SINAMICS S120 booksize or chassis configuration, engineers commonly need to verify or replace the Motor Module (single-axis or double-axis), the DRIVE-CLiQ hub module (DMC20 or DME20), and the associated 6FX series pre-assembled DRIVE-CLiQ signal cable that connects the motor encoder directly to the Control Unit CU320-2 DP or CU320-2 PN.

For systems still running on older MASTERDRIVES MC or VC platforms, the migration to 1FK6101-8AF71-1 typically requires a parallel upgrade of the inverter to a SINAMICS S120 Motor Module, along with reconfiguration of the STARTER or SINAMICS Startdrive commissioning software. In these cases, the Active Line Module (ALM) or Smart Line Module (SLM) at the DC bus level must also be sized to accommodate the updated motor’s peak current demand.

Where the control cabinet layout is constrained, the compact booksize format of the SINAMICS S120 Motor Module paired with the 1FK6101-8AF71-1 offers a significant space advantage over legacy drive configurations. The 24 VDC brake control circuit for the integrated holding brake can typically be sourced from the existing SITOP PSU100S or PSU200M power supply already present in the cabinet, avoiding the need for additional power supply hardware.

For machine tool applications under SINUMERIK 840D sl or 828D control, the 1FK6101-8AF71-1 is fully supported via the NCU (Numerical Control Unit) and the associated SINAMICS S120 drive topology. The DRIVE-CLiQ daisy-chain architecture allows the motor to be integrated into the existing axis topology without additional hardware, provided the NCU firmware version supports the motor’s encoder data set. The motor’s electronic nameplate, stored in the DRIVE-CLiQ encoder, is automatically read during commissioning, eliminating manual parameter entry for motor identification data.

In distributed I/O architectures using ET 200SP or ET 200M remote I/O stations, the brake control and motor temperature monitoring signals are typically routed through digital output and analog input modules on the same PROFINET or PROFIBUS segment as the drive. Ensuring signal isolation between the brake circuit and the I/O module commons is a standard commissioning step that prevents ground loop interference in sensitive servo positioning applications.

For applications requiring position feedback redundancy or functional safety (SIL 2 / PLe), the 1FK6101-8AF71-1 can be paired with a SINAMICS S120 Safety Integrated Motor Module and configured for Safe Torque Off (STO) or Safe Stop 1 (SS1) functions without external safety relays, reducing cabinet wiring complexity and improving response time for emergency stop scenarios.

Retrofit Guidance FAQ

Q: Can I reuse my existing motor power cable when replacing with the 1FK6101-8AF71-1?
A: In most cases, yes. The M23 power connector pinout follows the SIMOTICS S 1FK6 series standard. Verify the cable cross-section matches the motor’s rated current and that the shield termination at the drive end is intact. Replace the cable if insulation shows signs of thermal degradation.

Q: Do I need to re-parameterize the drive after installing the 1FK6101-8AF71-1?
A: The DRIVE-CLiQ interface automatically uploads the motor’s electronic nameplate to the Control Unit during first power-up. In SINAMICS S120 systems, run the “Identify motor data” routine in STARTER or Startdrive to confirm the motor data set is correctly loaded. For SINUMERIK applications, verify the axis machine data (MD30130, MD30240) matches the new motor’s encoder resolution.

Q: Is the holding brake wiring compatible with my existing cabinet layout?
A: The integrated holding brake operates on 24 VDC (spring-applied, electrically released). The brake control output on the SINAMICS S120 Motor Module (terminal X241) is directly compatible. If your legacy system used a separate brake relay, this can typically be bypassed once the Motor Module’s integrated brake control is enabled via parameter p1215.

Q: What is the physical installation space requirement compared to my current motor?
A: The 1FK6101-8AF71-1 uses the standard 1FK6 shaft height and flange dimensions. Confirm the motor length (including brake) against your machine envelope — the holding brake adds approximately 40–50 mm to the overall motor length compared to a non-brake variant. Mounting bolt pattern and shaft diameter are unchanged within the series.

Q: Which communication protocols are supported for drive-level diagnostics?
A: The SINAMICS S120 platform supports PROFIBUS DP and PROFINET IO at the drive level. The 1FK6101-8AF71-1’s DRIVE-CLiQ encoder communicates internally within the drive topology and does not require separate fieldbus configuration. For higher-level SCADA or DCS integration, the drive’s process data is accessible via the configured fieldbus interface on the Control Unit.

Q: Can this motor be used as a direct replacement in a SINAMICS S110 single-axis system?
A: The SINAMICS S110 supports DRIVE-CLiQ motors from the 1FK6 series. Verify the S110 Control Unit firmware version and the Motor Module current rating against the 1FK6101-8AF71-1 specifications. In most S110 configurations, the motor can be substituted with a firmware update and motor data re-identification.

Warranty Assurance

Every Siemens 1FK6101-8AF71-1 unit shipped by TOPNLMS carries a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment functional inspection covering insulation resistance, encoder signal integrity, brake engagement/release cycle, and shaft runout verification. Units are packed in anti-static, shock-absorbing export packaging suitable for international air freight and sea freight.

In the event of a confirmed defect within the warranty period, TOPNLMS provides a replacement unit or full refund based on the customer’s preference and stock availability. Our technical support team responds to warranty claims and commissioning queries within 1 business day. Replacement units for in-warranty claims are prioritized for same-week dispatch from our Xiamen warehouse.

For procurement teams requiring documentation, we provide a commercial invoice, packing list, certificate of origin, and test report with each shipment. DDP (Delivered Duty Paid) and DAP (Delivered At Place) Incoterms are available for qualified accounts. Bulk order pricing and consignment stock arrangements are available for MRO and OEM customers with recurring demand for 1FK6 series servo motors.

Contact our sales team to confirm current stock availability, lead time, and pricing before placing your order.
