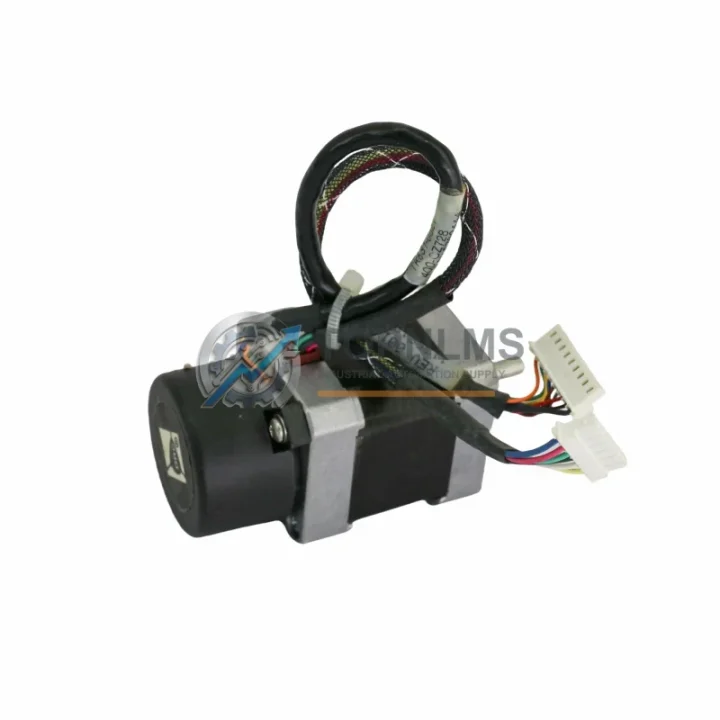

YASKAWA SGMPH-04AAAP20 Replacement Upgrade for SGMPH

Product Overview

YASKAWA SGMPH-04AAAP20 Replacement Upgrade for SGMPH: Smooth Transition from Legacy Servo Systems

The YASKAWA SGMPH-04AAAP20 is a 400W AC Servo Motor from YASKAWA’s SGMPH Series — a compact, high-performance servo motor platform widely deployed in CNC machining centers, robotic assembly lines, semiconductor handling equipment, packaging machinery, and precision motion control applications across Asia, Europe, and North America. As original equipment manufacturers and end-users face the challenge of maintaining aging servo drive systems, the SGMPH-04AAAP20 has become one of the most frequently requested replacement and upgrade components for engineers managing the transition from discontinued or end-of-life servo hardware to a verified, in-production alternative.

This product page is designed for maintenance engineers, procurement specialists, and MRO teams who are managing servo system replacements — whether as an emergency breakdown response, a planned preventive maintenance upgrade, or a broader motion control system modernization project. The SGMPH-04AAAP20 is a direct mechanical and electrical replacement for earlier SGMPH-04 variants and is fully compatible with YASKAWA’s SGDH, SGDS, and SGDV series servo drives when properly matched by capacity and encoder type.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the SGMPH-04AAAP20 in a production environment is rarely a standalone task. In most servo system retrofit projects, the motor replacement is one element of a broader motion control upgrade that must be carefully coordinated to minimize downtime and ensure system-level compatibility.

The most common pairing for the SGMPH-04AAAP20 is the SGDH-04AE Servo Drive — YASKAWA’s Σ-II series amplifier that is electrically and mechanically matched to the SGMPH motor family. If your existing drive is a SGDH-04AE and only the motor has failed, the replacement is straightforward: disconnect the motor power cable and encoder cable, install the SGMPH-04AAAP20, and verify the drive’s motor code parameter (Pn002) matches the new motor. No re-tuning is typically required if the load inertia ratio has not changed.

For facilities that are also upgrading the drive to the Σ-V platform, the SGDV-2R8A01A Servo Drive is the recommended Σ-V counterpart for 400W SGMPH motors. The Σ-V drive supports MECHATROLINK-II network communication, which enables integration with YASKAWA’s MP2000 Series Machine Controllers and third-party PLCs via MECHATROLINK-II master modules. This upgrade path is particularly relevant for facilities that are migrating from standalone pulse-train motion control to coordinated multi-axis network control.

Encoder cable compatibility is a critical checkpoint in any SGMPH replacement. The JZSP-CMP00-03 Encoder Cable (or equivalent site-length variant) is the standard cable assembly for connecting the SGMPH encoder to the SGDH or SGDV drive. If the existing cable is damaged or uses a non-standard connector from an older SGMP-series installation, a new cable assembly must be sourced alongside the motor. Using a damaged or mismatched encoder cable is one of the most common causes of post-replacement encoder fault alarms (A.810, A.820 on SGDH drives).

Motor power cable integrity should also be verified during the replacement process. The JZSP-B9P03 Motor Power Cable provides the 4-pin power connection between the SGMPH motor and the SGDH/SGDV drive. In high-cycle applications such as pick-and-place or press-feed systems, power cable insulation fatigue is a common secondary failure mode that is often discovered only after the motor has been replaced and the system is returned to service.

For multi-axis systems, the SGMPH-04AAAP20 replacement should be coordinated with a review of the SGDH or SGDV drive rack configuration, including the shared DC bus connections and regenerative resistor sizing. In systems where multiple axes share a common regenerative discharge resistor — such as the JUSP-RA04-E Regenerative Resistor Unit — the resistor capacity must be verified against the updated motor configuration to prevent overvoltage faults during deceleration.

For facilities operating YASKAWA servo systems within a broader Siemens, Mitsubishi, or Rockwell PLC environment, the motion command interface between the PLC and the SGDV drive is typically handled via a MECHATROLINK-II master module or a pulse-train output card. Verifying the pulse frequency scaling and electronic gear ratio parameters (Pn20E, Pn210 on SGDV) after motor replacement is essential to ensure that the machine’s positional accuracy and speed profile are maintained.

Finally, for plants managing a broader servo system modernization — including replacement of SGMAH-04AAA21 motors on adjacent axes, upgrading SGDH drives to the Σ-V SGDV platform, or reconfiguring the JUSP-NS600 MECHATROLINK-II module for network-based motion control — the SGMPH-04AAAP20 procurement can be bundled with these related components to consolidate shipping, reduce lead time, and simplify incoming inspection.

Retrofit Guidance FAQ

Q: Is the SGMPH-04AAAP20 a direct plug-and-play replacement for the SGMPH-04AAA21?
A: Yes, with one important check. The SGMPH-04AAAP20 (P20 suffix = no brake, no oil seal) is the direct replacement for the SGMPH-04AAA21 if the legacy unit also has no brake. If the legacy motor has a brake (suffix P21 or similar), the SGMPH-04AAAP20 is not the correct replacement — you will need the brake-equipped variant. Confirm the suffix on the nameplate of the failed motor before ordering.

Q: Can the SGMPH-04AAAP20 be used with an older SGDA series drive?
A: No. The SGDA (Σ-I) drive is not compatible with SGMPH series motors. If your existing drive is an SGDA, you must upgrade the drive to an SGDH or SGDV alongside the motor replacement. The SGDH-04AE is the recommended drive for this motor at 400W capacity.

Q: What encoder signal does the SGMPH-04AAAP20 use?
A: The standard SGMPH-04AAAP20 uses an incremental encoder (2000 P/R). The drive must be configured for incremental encoder input (Pn002.2 = 0 on SGDH). If your application requires absolute position retention after power loss, you will need the absolute encoder variant and a battery backup unit on the drive.

Q: Do I need to re-tune the servo after replacing the motor?
A: In most cases, no — if the replacement motor is the same model and the mechanical load has not changed. The SGDH and SGDV drives store tuning parameters in non-volatile memory. After motor replacement, perform a JOG operation at low speed to verify encoder feedback direction and check for vibration before returning to full-speed production.

Q: How much cabinet space does the SGMPH-04AAAP20 require?
A: The SGMPH-04AAAP20 is a motor unit mounted externally on the machine — it does not occupy cabinet space. The associated SGDH-04AE drive requires approximately 45 mm width in a standard DIN-rail or panel-mount servo cabinet. If you are replacing an SGDH drive alongside the motor, verify that the cabinet has adequate ventilation clearance (minimum 50 mm top and bottom) per YASKAWA installation guidelines.

Q: What is the lead time and shipping arrangement?
A: Units are shipped from our Xiamen warehouse. Standard international shipping via DHL/FedEx Express typically delivers within 3–7 business days to most destinations. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All units are tested and inspected prior to shipment.

Warranty Assurance

Every YASKAWA SGMPH-04AAAP20 unit supplied by TOPNLMS is covered by a 12-Month Warranty from the date of shipment. This warranty covers functional failure under normal operating conditions and includes the following protections:

• Pre-shipment functional testing: Each unit undergoes bench-level power-on testing and visual inspection before dispatch. Units with visible damage, corrosion, bearing noise, or suspected encoder failure are quarantined and not shipped.
• Replacement support: In the event of a warranty claim, TOPNLMS will arrange a replacement unit shipment upon receipt and verification of the returned defective motor. Return shipping costs for warranty claims are covered by TOPNLMS for the first occurrence.
• After-sales technical response: Our technical team is available via email ([email protected]) and phone (+86 18359293191) to assist with installation questions, drive parameter configuration, compatibility verification, and commissioning support during the warranty period.
• Procurement assurance: All units are sourced through verified supply channels. Certificates of conformance and test reports are available upon request. We do not supply units of unknown provenance or units that have been repaired without documentation.
• Exclusions: The warranty does not cover damage caused by incorrect installation, overvoltage events, physical impact, shaft overloading, or unauthorized disassembly of the motor.

For procurement teams requiring additional documentation — including material certifications, country of origin declarations, or customs HS code information — please contact us directly. We support both spot purchase and blanket order arrangements for MRO and capital project procurement.
