Schneider XS630B1MAL2 Replacement Solution for XS6 Series

Product Overview

Schneider XS630B1MAL2 Replacement Solution for XS6 Series: Seamless Transition from Legacy Inductive Sensing Systems

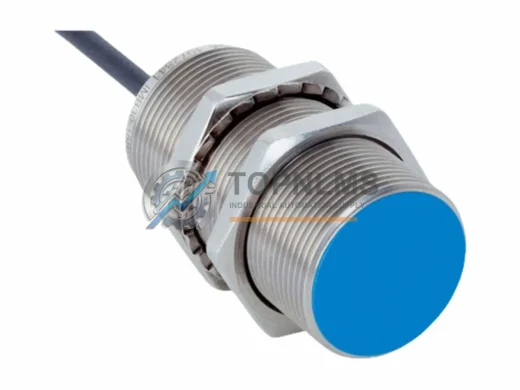

The Schneider Electric XS630B1MAL2 is an M30-format, PNP normally-open inductive proximity sensor belonging to the XS6 Series product family. As industrial facilities continue to modernize aging automation infrastructure, this sensor has become a critical replacement and upgrade target for engineers managing legacy Telemecanique-branded sensing networks, older Modicon-integrated I/O chains, and first-generation Schneider Altivar drive feedback loops. TOPNLMS maintains verified stock of the XS630B1MAL2 to support planned maintenance windows, emergency breakdowns, and phased modernization projects across manufacturing, packaging, and process control environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the XS630B1MAL2 is rarely an isolated task. In most retrofit and modernization projects, the sensor is one node in a broader sensing and control architecture. Engineers upgrading from legacy Telemecanique or early Schneider XS6 installations typically also address adjacent components to ensure system-wide reliability.

On the I/O side, the XS630B1MAL2 connects directly to discrete input modules such as the Schneider TM3DI16G or TM2DI16DT digital input cards used in Modicon M221 and M241 controller racks. When the sensor is replaced as part of a broader I/O refresh, engineers often simultaneously upgrade the Schneider XZCP1141L10 M12 pre-wired cordset to ensure connector integrity and eliminate intermittent signal faults caused by aged cable insulation.

For installations where the XS630B1MAL2 feeds position feedback into an Altivar ATV312 or Altivar ATV320 variable frequency drive, the sensor’s PNP output interfaces with the drive’s digital input terminals (DI1–DI6) without any signal conditioning. However, if the control cabinet also contains older relay logic or NPN-only input cards, a Schneider XPSAF5130 safety relay module or a discrete signal isolator may be required to bridge output polarity differences during the transition period.

In conveyor, press, and assembly line applications, the XS630B1MAL2 is frequently installed alongside Schneider XS618B1MAL2 (M18 variant) and XS512B1MAL2 (M12 variant) sensors on the same detection rail. Replacing the full sensor family in a single maintenance window reduces future downtime risk and ensures consistent sensing distances and output characteristics across the machine zone.

For communication-intensive architectures where sensing data is aggregated via Schneider STB NIP 2212 Profibus DP network interface modules or Advantys STB island bus systems, the XS630B1MAL2’s discrete output connects to local I/O slice modules. Upgrading the sensor does not require any fieldbus reconfiguration, as the I/O address mapping remains unchanged at the PLC program level.

Where the control system is built around a Modicon M340 or Premium TSX rack, the sensor’s signal typically terminates at a BMX DDI 1602 or TSX DEY 16D2 discrete input module. These modules accept standard PNP sourcing inputs, making the XS630B1MAL2 a confirmed compatible replacement without any hardware or software modification to the existing rack configuration.

Retrofit Guidance FAQ

Q: Do I need to modify the wiring when replacing a legacy XS6 sensor with the XS630B1MAL2?
No. The XS630B1MAL2 uses the same M30 body, identical cable length, and the same PNP NO output polarity as the original XS6 generation sensors. The three-wire connection (Brown = +V, Blue = 0V, Black = signal) is unchanged. Simply disconnect the old sensor and reconnect the new unit to the existing cable harness.

Q: Will the PLC program require modification after replacement?
No program changes are required. The XS630B1MAL2 delivers the same discrete digital output signal. The I/O address, function block, and ladder logic referencing the sensor input remain valid without modification.

Q: Is the sensing distance identical to the unit being replaced?
Yes. The nominal sensing distance is 10 mm for standard ferrous targets. No teach-in or potentiometer adjustment is required after installation.

Q: Can this sensor be used in a Profibus or EtherNet/IP network?
The XS630B1MAL2 is a discrete output sensor and does not communicate directly over fieldbus protocols. It connects to a local I/O module (e.g., Modicon BMX DDI or STB slice I/O) which handles the fieldbus communication upstream. No network reconfiguration is needed.

Q: What is the physical installation space requirement?
The M30 × 1.5 threaded body fits standard M30 mounting brackets and through-hole panels. The overall length and cable exit direction are identical to the replaced unit, so no bracket modification or cable routing change is required.

Q: How do I verify the replacement sensor before installation?
Each XS630B1MAL2 shipped by TOPNLMS is function-tested prior to dispatch. You can perform a bench test using a 24 V DC bench supply and a standard ferrous target to confirm switching behavior before installing in the machine.

Warranty Assurance

Every XS630B1MAL2 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes output switching verification, supply voltage tolerance testing, and physical inspection for connector and cable integrity. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides replacement unit dispatch within 3 business days of confirmed fault diagnosis. Customers are not required to return the defective unit before a replacement is shipped for critical production applications — contact our sales team to arrange priority replacement under the warranty program.

Stock is maintained in Xiamen, China, with express international shipping available to most industrial regions. Standard lead time for in-stock units is 3–7 business days to major destinations. Expedited air freight options are available for emergency breakdown situations.

For volume procurement, OEM replacement programs, or multi-site maintenance contracts, TOPNLMS offers consolidated invoicing, batch testing reports, and dedicated account management. Contact our team to discuss your specific procurement requirements.
