Schneider Electric XS1M30MA250 Ruggedized Inductive Sensor

Product Overview

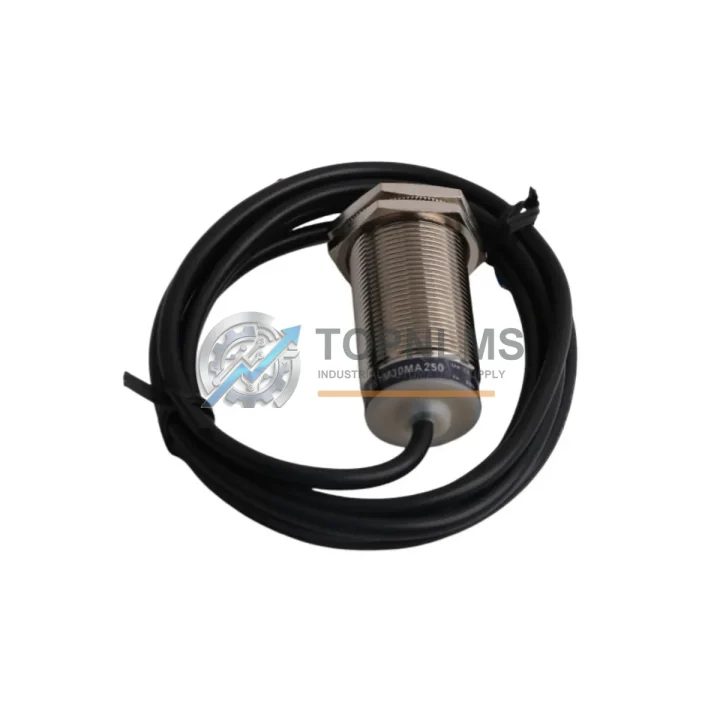

Schneider Electric XS1M30MA250 Ruggedized Inductive Proximity Sensor for Harsh Industrial Environments

The Schneider Electric XS1M30MA250 is a high-performance M30-barrel inductive proximity sensor from the OsiSense XS Series, engineered to deliver consistent, interference-free detection in the most demanding industrial environments. With a nominal sensing range of 15 mm, a PNP-NO output configuration, and an IP67-rated stainless-steel housing, this sensor is purpose-built for continuous operation on production lines where vibration, moisture, chemical exposure, and electromagnetic interference are everyday realities.

Whether deployed on a high-speed stamping press, a wet-process conveyor in a food-grade facility, or a heavy-duty transfer line in an automotive body shop, the XS1M30MA250 maintains stable switching performance without false triggering. Its robust M30 threaded barrel allows secure panel or bracket mounting, and the shielded coil design suppresses EMI from adjacent variable frequency drives (VFDs), servo amplifiers, and high-current bus bars — a critical advantage in control cabinets where Schneider Electric Altivar ATV320 or ATV630 drives operate in close proximity.

Rugged Specifications Table

Comprehensive Protection Solutions

The XS1M30MA250 is rarely deployed in isolation. In a fully integrated machine safety and control architecture, it works alongside a coordinated ecosystem of Schneider Electric components. On the I/O side, it connects directly to Modicon TM3DI16 digital input expansion modules or the TM3DI8 module within a Modicon M221 or M241 PLC system, feeding real-time position and presence data into the controller’s logic engine without signal conditioning hardware.

For safety-critical applications — such as guarding a press brake or monitoring a robot cell boundary — the XS1M30MA250 output can be wired into a Schneider Electric Preventa XPSAF safety relay module, which monitors the sensor’s switching state and triggers a controlled stop via the machine’s safety circuit. This pairing satisfies PLd / Category 3 requirements under ISO 13849-1 when properly validated.

In control cabinet assemblies, the sensor cable is typically terminated through Schneider Electric Linergy TB terminal blocks or NSYTRV series DIN-rail terminals, ensuring clean, labeled wiring that survives vibration and thermal cycling. Power to the sensor is supplied from a Phaseo ABL8 24 V DC SMPS power supply, which provides regulated, noise-filtered DC even when upstream AC supply quality is poor — a common condition in mining substations and steel mill auxiliary panels.

Where the XS1M30MA250 monitors conveyor position or part presence on a high-speed line, its output is often interlocked with a Schneider Electric TeSys D LC1D contactor or a TeSys GV2 motor circuit breaker to enable or inhibit motor starts based on detected object state. This tight integration between sensing, protection, and actuation layers is the hallmark of a well-engineered Schneider Electric control system.

For distributed I/O architectures using Modicon STB island bus or CANopen / Modbus RTU fieldbus topologies, the sensor’s discrete PNP signal is aggregated at a TM3XTRA1 transmitter expansion module or a Modicon OTB1E0DM9LP Ethernet I/O island, enabling remote monitoring from a SCADA or HMI without running long signal cables across the plant floor.

Application in Critical Infrastructure

The XS1M30MA250 has proven its reliability across the full spectrum of heavy industry and critical infrastructure sectors:

Oil & Gas Upstream and Midstream: On wellhead control panels and pipeline pig-launcher stations, the sensor detects valve stem position and actuator travel limits in environments saturated with H₂S, methane, and salt-laden humidity. Its IP67 stainless-steel body resists corrosion, and its shielded coil rejects interference from high-power pump motor starters operating nearby.

Mining and Mineral Processing: In underground coal mines and open-pit copper concentrators, the XS1M30MA250 monitors conveyor belt alignment, crusher jaw position, and skip-hoist limit positions. Constant vibration, coal dust, and water spray are standard operating conditions — all within the sensor’s rated environmental envelope.

Power Generation and Transmission: Thermal power plants and hydroelectric facilities use inductive proximity sensors to confirm turbine valve positions, generator exciter coupling states, and circuit breaker auxiliary contact positions. The sensor’s wide supply voltage range (12–48 V DC) accommodates both 24 V control circuits and 48 V battery-backed UPS systems common in substation control rooms.

Water and Wastewater Treatment: Pump stations, sluice gate actuators, and chemical dosing systems in water treatment plants demand sensors that survive continuous moisture exposure and aggressive cleaning agents. The XS1M30MA250’s IP67 rating and stainless-steel housing make it a standard choice for these installations.

Metallurgy and Steel Production: On continuous casting lines and rolling mill entry tables, the sensor detects billet presence and roll gap positions at temperatures up to 70 °C ambient, with radiant heat from hot metal adding to the thermal load. Its rated operating temperature range and robust housing ensure uninterrupted production monitoring.

Security & Quality FAQ

Q1: What warranty coverage does the XS1M30MA250 carry when purchased from TOPNLMS?
Every XS1M30MA250 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. If the unit exhibits any manufacturing defect or functional failure under normal operating conditions within this period, we provide a replacement or full refund — no questions asked. Our warranty process is straightforward: contact us with your order number and a brief fault description, and we will arrange the resolution within 3 business days.

Q2: How is each unit tested before shipment?
All XS1M30MA250 sensors undergo a pre-shipment functional test that verifies switching output, sensing range, supply current draw, and cable continuity. Units that fail any parameter are quarantined and not shipped. We source exclusively from authorized distribution channels and maintain traceability records for every batch, so you receive a genuine Schneider Electric component — not a counterfeit or refurbished substitute.

Q3: Is the XS1M30MA250 compatible with my existing Modicon PLC or third-party controller?
Yes. The PNP-NO output is universally compatible with any digital input module that accepts a sourcing (PNP) signal at 12–48 V DC — including Schneider Electric Modicon M221, M241, M251, M262, and M340 PLCs, as well as Siemens S7-1200/1500, Allen-Bradley Micro820/CompactLogix, and Mitsubishi FX/iQ-R series controllers. No signal converter or interposing relay is required for standard 24 V DC I/O cards.

Q4: Can TOPNLMS support long-term supply continuity for maintenance and spare-parts programs?
Absolutely. TOPNLMS maintains standing inventory of the XS1M30MA250 and related OsiSense XS series sensors to support planned maintenance shutdowns, emergency breakdowns, and multi-year spare-parts contracts. We can provide volume pricing, reserved stock agreements, and consolidated shipments for MRO procurement teams. Contact our technical sales team to discuss your facility’s specific stocking requirements.
