Schneider Electric XS630B4PAL2 Ruggedized Inductive Proximity Sensor

Product Overview

Schneider Electric XS630B4PAL2 Ruggedized Inductive Proximity Sensor – Industrial Resilience for Harsh Environments

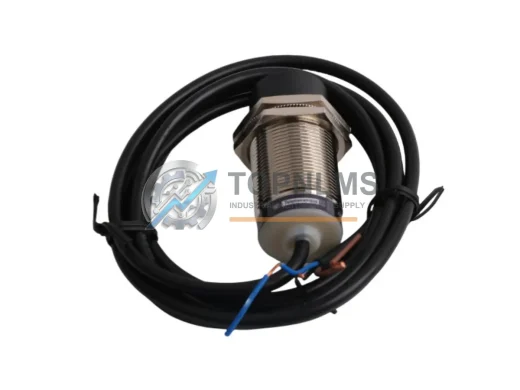

The Schneider Electric XS630B4PAL2 is a heavy-duty M30 inductive proximity sensor engineered for continuous, reliable operation in the most demanding industrial environments. Part of the proven XS6 Series, this NPN normally-open sensor delivers a 4 mm sensing range with an IP67 ingress protection rating, making it fully resistant to dust ingress and temporary immersion in water — a critical requirement for manufacturing floors, outdoor installations, and washdown zones.

Designed to withstand high-vibration machinery, wide temperature swings, aggressive chemical exposure, and intense electromagnetic interference (EMI), the XS630B4PAL2 is the preferred choice for engineers specifying sensors in steel mills, automotive assembly lines, food and beverage processing, and heavy-duty packaging systems. Its robust M30 stainless-steel housing resists mechanical shock and corrosion, ensuring long service life even when mounted directly on conveyor frames, hydraulic presses, or rotating equipment.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, a single sensor rarely operates in isolation. The XS630B4PAL2 is most commonly integrated into Schneider Modicon M340 and Modicon M580 PLC systems, where its NPN signal feeds directly into digital input modules such as the BMX DDI 1602 or BMX DDI 3202K. These I/O modules are designed to handle the fast switching speeds and low-leakage currents typical of inductive sensors, ensuring clean signal acquisition even in electrically noisy environments.

For applications requiring distributed I/O across large production lines, the XS630B4PAL2 pairs seamlessly with Schneider TM3 expansion modules and Advantys STB island bus modules, both of which support Modbus TCP and CANopen communication protocols. This allows sensor data to be transmitted reliably over long cable runs without signal degradation — a common challenge in facilities with large variable-frequency drives (VFDs) or Schneider Altivar ATV320 series inverters generating high-frequency switching noise.

Power supply stability is equally critical. The XS630B4PAL2 operates on 12–48 V DC, making it fully compatible with Schneider Phaseo ABL8 series DIN-rail power supplies, which provide regulated, filtered DC output with built-in overload protection. Pairing the sensor with a quality industrial power supply eliminates voltage sag events that can cause false triggering or premature sensor failure in high-load environments.

For safety-critical zones — such as light curtain bypass interlocks or emergency-stop confirmation circuits — the XS630B4PAL2 is often used alongside Schneider Preventa XPS safety relays and Harmony XPSUAF safety modules. These safety devices monitor the sensor’s output state as part of a broader machine safety loop, ensuring compliance with IEC 62061 and ISO 13849 functional safety standards. The sensor’s fast response time and stable switching behavior make it a dependable input device in such architectures.

Terminal connectivity within the control cabinet is handled by Schneider Linergy terminal blocks or compatible Phoenix Contact PTFIX distribution blocks, which provide secure, vibration-resistant wire termination for the sensor’s 2 m PVC cable. Proper terminal management reduces the risk of intermittent connections — one of the leading causes of nuisance faults in proximity sensor circuits.

Application in Critical Infrastructure

The XS630B4PAL2 has established a strong track record across multiple heavy-industry verticals where sensor reliability directly impacts production uptime and personnel safety.

Oil & Gas and Petrochemical: In upstream and midstream facilities, proximity sensors monitor valve positions, pig launcher doors, and rotating equipment guards. The XS630B4PAL2’s IP67 rating and wide operating temperature range make it suitable for outdoor skid-mounted installations exposed to rain, condensation, and hydrocarbon vapors. Its non-contact detection principle eliminates mechanical wear, reducing maintenance intervals on critical isolation valves.

Mining and Mineral Processing: Conveyor belt systems in mining operations subject sensors to extreme vibration, coal dust, and water spray. The XS630B4PAL2’s IEC 60068-2-6 vibration rating and sealed housing allow it to detect belt misalignment, chute blockages, and crusher jaw positions without the false trips that plague lower-grade sensors in these environments.

Power Generation and Utilities: In thermal and hydroelectric power plants, the sensor is deployed to monitor turbine blade proximity, generator coupling alignment, and switchgear position feedback. Its EMC immunity — tested to IEC 60947-5-2 — ensures stable operation in substations and generator halls where high-voltage switching creates intense electromagnetic fields.

Water and Wastewater Treatment: Pump stations and filtration systems require sensors that can withstand continuous exposure to moisture and cleaning chemicals. The XS630B4PAL2’s IP67 protection and corrosion-resistant housing make it ideal for detecting float levels, valve positions, and screen blockages in wet environments where stainless-steel construction is mandatory.

Metallurgy and Steel Production: Rolling mills and continuous casting lines expose sensors to radiant heat, metal splash, and intense vibration. While the XS630B4PAL2 is rated to +70°C ambient, it is typically installed with thermal shielding in these applications, providing reliable billet detection and roll gap monitoring as part of the mill’s Modicon-based automation system.

Security & Quality FAQ

Q1: What warranty does the XS630B4PAL2 carry, and what does it cover?
All XS630B4PAL2 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, premature electrical failure, and housing integrity issues under normal operating conditions. Warranty claims are processed with full technical support, and replacement units are dispatched promptly to minimize your downtime.

Q2: How is each unit tested before shipment?
Every XS630B4PAL2 unit undergoes pre-shipment functional verification, including output switching confirmation, supply voltage range testing, and visual inspection of the cable, connector, and housing. Units are shipped in original or equivalent protective packaging to prevent transit damage. A test report is available upon request for quality-critical procurement.

Q3: Is the XS630B4PAL2 compatible with my existing Modicon PLC digital input modules?
Yes. The NPN open-collector output of the XS630B4PAL2 is fully compatible with Schneider Modicon M340, M580, and Premium series digital input modules that accept NPN (sinking) signals at 12–48 V DC. If your system uses PNP (sourcing) inputs, please contact our technical team — we can source the equivalent PNP variant from the XS6 series to match your I/O architecture.

Q4: Can TOPNLMS support long-term or repeat procurement of this sensor?
Yes. TOPNLMS maintains stock of XS6 series sensors and can support scheduled blanket orders, emergency replacement procurement, and multi-unit project quantities. We specialize in industrial automation spare parts with consistent availability, competitive lead times, and full traceability documentation. Contact us at [email protected] or +86 18359293191 to discuss your procurement requirements.
