Schneider XBTF034510 Ruggedized HMI Panel for Harsh Environments

Product Overview

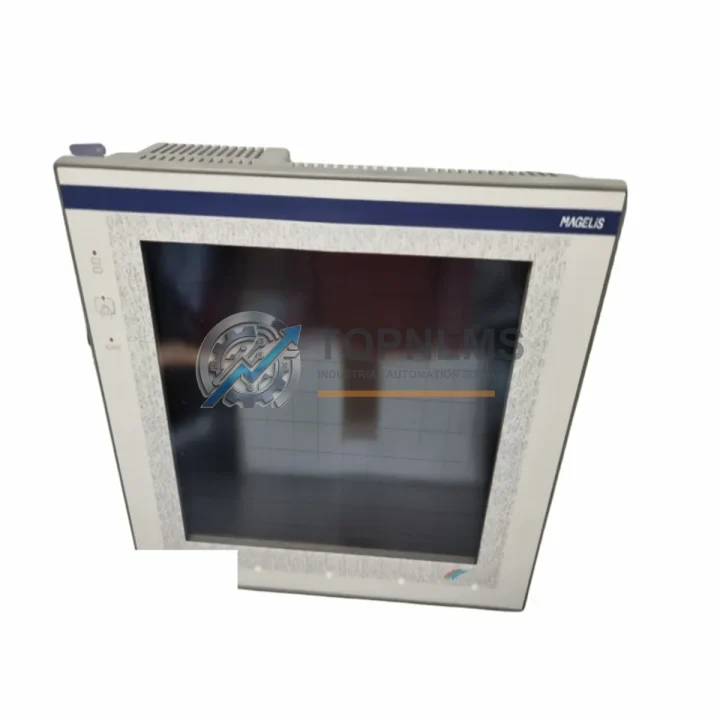

Schneider XBTF034510 Ruggedized HMI Panel for Harsh Environments

The Schneider Electric XBTF034510 is a high-performance operator panel from the Magelis XBT F series, purpose-engineered to deliver uncompromising human-machine interface reliability in the most demanding industrial environments. Designed for continuous duty in conditions defined by extreme temperature cycling, elevated humidity, airborne particulates, persistent mechanical vibration, and intense electromagnetic interference, this ruggedized HMI panel is the trusted visualization solution for plant engineers and automation specialists who cannot tolerate unplanned downtime.

Built on Schneider Electric’s proven Magelis platform, the XBTF034510 integrates seamlessly into control architectures anchored by Modicon M340, Modicon Premium, and Modicon Quantum PLCs, as well as third-party controllers communicating over Modbus RTU, Modbus TCP/IP, CANopen, and Uni-Telway protocols. Its robust enclosure and IP65-rated sealed front panel make it suitable for direct installation in control cabinets exposed to dust, oil mist, and chemical vapors — conditions endemic to petrochemical plants, underground mining operations, and heavy manufacturing facilities. The panel’s high-contrast color TFT LCD touchscreen and glove-operable interface allow operators to monitor process variables, acknowledge alarms, and adjust setpoints without removing personal protective equipment — a critical ergonomic and safety advantage in hazardous area operations.

When deployed alongside Schneider Electric’s Magelis XBTGT series graphic terminals or XBTGK keypad panels, the XBTF034510 forms part of a cohesive, scalable visualization layer that spans from simple status indication to full SCADA-level process overview. Its compact form factor and standard panel-cutout mounting dimensions simplify retrofit installations in existing control cabinets, reducing commissioning time and minimizing production interruption during spare-part replacement programs.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated control cabinet, the XBTF034510 HMI panel operates alongside a range of complementary Schneider Electric components to form a complete, protection-grade automation solution. The Modicon M340 PLC CPU modules — such as the BMX P34 2020 — serve as the primary logic controllers, processing field signals and executing safety interlocks while the XBTF034510 provides the operator visualization layer. Discrete and analog I/O expansion is handled by BMX DDI and BMX AMI I/O modules, which feed real-time process data directly to the HMI display, enabling operators to act on live field conditions without delay.

For power conditioning and surge protection within the same enclosure, Schneider Electric Phaseo ABL8 series 24 VDC industrial power supplies deliver stable, filtered DC power to both the HMI panel and connected I/O racks — essential in environments where mains voltage fluctuations and transient spikes are common. Zelio Logic smart relays and Tesys D series motor starters are frequently co-installed in the same cabinet, providing local motor control and thermal overload protection that the XBTF034510 can monitor and command through its Modbus interface. This tight integration between the HMI, the PLC, and the motor control layer eliminates the need for separate local control panels and reduces overall cabinet footprint.

Communication integrity across the control network is maintained through Schneider Electric ConneXium industrial Ethernet switches and TSXSCA62 serial communication adapters, ensuring that the HMI’s data exchange with upstream SCADA systems or DCS platforms remains uninterrupted even in high-EMI environments generated by variable frequency drives and high-current switching equipment. Where functional safety is required, Preventa XPSAF safety modules provide hardwired emergency stop and safety gate monitoring, with status signals surfaced on the XBTF034510 operator screen for immediate operator awareness. Terminal block connections throughout the cabinet are managed using Schneider Electric Linergy TB series terminal modules, which simplify field wiring, reduce installation errors during commissioning, and accelerate spare-part replacement when the XBTF034510 is swapped in as a like-for-like substitute for an aging or failed unit.

Application in Critical Infrastructure

The XBTF034510 has established a strong operational track record across critical infrastructure sectors where unplanned downtime carries significant safety and financial consequences. In upstream oil and gas facilities, the panel is deployed at wellhead control stations and compressor skids, where operators rely on its IP65-sealed front face to withstand hydrocarbon mist, high-pressure wash-down cleaning cycles, and the corrosive salt-laden atmospheres of offshore platforms. Its Modbus TCP/IP connectivity allows seamless integration with remote terminal units (RTUs) and distributed control systems (DCS) managing pipeline pressure, flow rates, and emergency shutdown sequences.

In underground mining operations, the XBTF034510 is installed in reinforced enclosures at conveyor drive stations and ventilation control panels, where vibration from blasting and continuous mechanical movement would compromise lesser HMI hardware. The panel’s IEC 60068-2-6 vibration compliance and IEC 60068-2-27 shock resistance ratings ensure sustained display and touchscreen performance under these conditions. Power generation facilities — including thermal, hydro, and wind farms — deploy the panel at turbine control desks and switchgear rooms, where its IEC 61000-series EMI immunity ensures stable operation despite the strong magnetic fields generated by high-voltage switching equipment and large rotating machines.

Water and wastewater treatment plants use the XBTF034510 at pump station control panels and chemical dosing skids, benefiting from its resistance to the corrosive chlorine and ammonia atmospheres present in treatment halls. In steel mills and aluminum smelters, the panel withstands radiant heat from furnace operations and the heavy particulate loading of casting and rolling environments, providing operators with continuous visibility of temperature profiles, drive speeds, and safety interlock states across the production line. Across all these sectors, the XBTF034510’s combination of industrial ruggedization, broad protocol compatibility, and proven Magelis platform heritage makes it a reliable long-term investment for facilities committed to operational continuity and personnel safety.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the XBTF034510?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the unit fails to perform to its published specifications within the warranty period, TOPNLMS will arrange repair, replacement, or a full refund — whichever resolution best suits your operational timeline. Warranty claims are processed promptly to minimize any impact on your production schedule.

Q2: How is the XBTF034510 tested before shipment?
Every unit undergoes a comprehensive pre-dispatch functional test that verifies power-on operation, display integrity, touchscreen response, and communication port functionality across all supported interfaces. Units that do not pass this inspection are quarantined and not shipped. A test report is available upon request for customers with quality management system (QMS) documentation requirements.

Q3: Is the XBTF034510 compatible with my existing Modicon PLC or third-party controller?
The XBTF034510 natively supports Modbus RTU and Modbus TCP/IP, making it compatible with the full Modicon M340, Premium, and Quantum PLC families, as well as any third-party controller — including Siemens S7, Allen-Bradley MicroLogix, and Mitsubishi MELSEC series — that supports standard Modbus communication. Our technical team can advise on driver configuration and cable pinouts before your order is placed.

Q4: Can TOPNLMS guarantee long-term supply and replacement support for this model?
Yes. TOPNLMS maintains dedicated stock of the XBTF034510 and its Magelis XBT F series siblings to support customers with ongoing maintenance and spare-part programs. For facilities running multi-year maintenance contracts, we offer reserved stock agreements that guarantee unit availability for the duration of your service cycle, protecting you against obsolescence risk and extended lead times from the original manufacturer.
