Schneider Electric XBTF024510 Original Industrial Spare Magelis Compatible

Product Overview

Schneider Electric XBTF024510 Original Industrial Spare Magelis Compatible: System Stability & Industrial Spare Maintenance Value

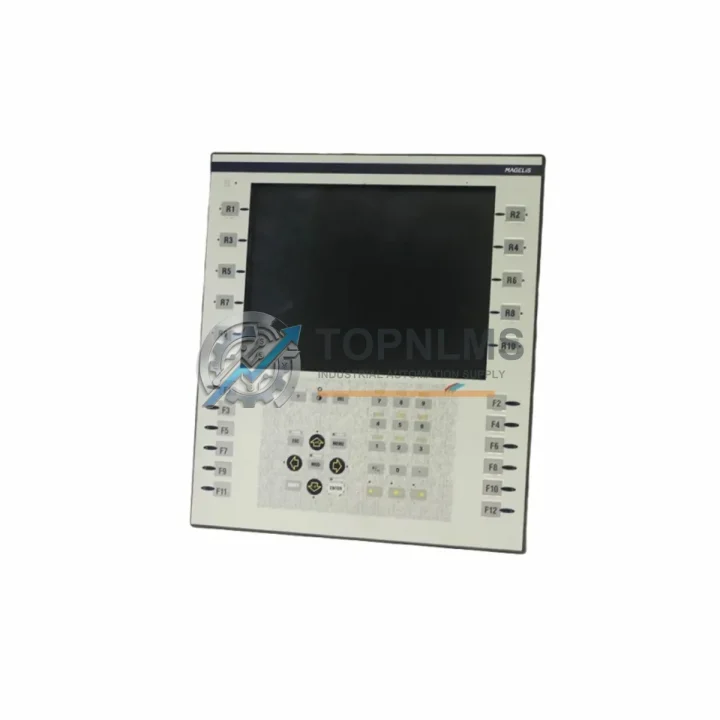

The Schneider Electric XBTF024510 is a genuine Magelis series HMI touch panel engineered for demanding industrial environments. As a critical operator interface in PLC-driven control systems, this unit serves as the primary human-machine interaction point for process monitoring, alarm management, and real-time parameter adjustment. Sourcing an original XBTF024510 spare is a strategic decision that directly impacts system uptime, operator safety, and long-term maintenance cost control.

In modern manufacturing facilities, unplanned downtime caused by HMI failure can cascade into significant production losses within minutes. The XBTF024510 is widely deployed across discrete manufacturing, water treatment, energy distribution, and process automation sectors. Its compatibility with the broader Magelis XBTF platform ensures seamless integration into existing control cabinet architectures without requiring software reconfiguration or PLC program modification.

Critical Technical Specs

Preventive Maintenance Strategy

When scheduling a planned replacement or emergency swap of the XBTF024510, experienced maintenance engineers treat the HMI changeout as an opportunity to audit the entire control cabinet. The HMI is the operator’s window into the control system — but it does not operate in isolation. A systematic inspection of surrounding components significantly reduces the risk of repeat failures and unplanned shutdowns.

Begin by verifying the 24 VDC power supply module feeding the HMI. Voltage fluctuations or ripple from an aging PSU are a leading cause of premature HMI screen degradation and communication faults. While the cabinet is open, inspect the Modicon M340 CPU module (such as the BMX P34 series) that the XBTF024510 interfaces with — check for firmware currency and communication parameter alignment.

Next, examine the RS-232C / RS-485 communication cable connecting the HMI to the PLC. Shielding integrity and connector seating are frequently overlooked during routine inspections. A degraded cable can cause intermittent screen freezes that are misdiagnosed as HMI hardware failure. Alongside this, inspect the Modicon BMX DDI / BMX DDO digital I/O modules in the same rack — their status LEDs provide a quick health snapshot of the control loop the HMI is monitoring.

For facilities running legacy Magelis installations, it is advisable to simultaneously stock a XBTF024110 or XBTF032110 as a cross-compatible backup. These models share the same panel cut-out dimensions and communication protocol stack, enabling rapid substitution during emergency maintenance windows without cabinet modification.

Review the terminal blocks and DIN rail wiring in the HMI power circuit. Loose terminals are a common source of intermittent power interruptions that manifest as random HMI reboots. If the control cabinet also houses a Zelio Logic smart relay or Modicon TM221 controller for auxiliary functions, verify their communication parameters remain synchronized with the replacement HMI’s project file.

Finally, check the surge protection device (SPD) on the 24 VDC rail and the circuit breaker or fuse module protecting the HMI supply circuit. These low-cost components are often deferred during budget-constrained maintenance cycles, yet their failure can destroy a replacement HMI within weeks of installation. A complete preventive maintenance pass — covering the HMI, its power source, communication wiring, I/O modules, and protective devices — is the most cost-effective strategy for extending control system service life.

Strategic Replacement Solutions

The XBTF024510 is a direct replacement for aging Magelis XBTF-series panels that have reached end-of-display-life or suffered physical damage to the touch membrane. Because it maintains full backward compatibility with existing Vijeo Designer project files, maintenance teams can execute a swap without HMI software re-engineering — a critical advantage when the original project files are available but the engineering team is no longer on-site.

For facilities managing a mixed fleet of Schneider Electric HMIs across multiple production lines, standardizing on the XBTF024510 as the primary spare reduces the number of unique part numbers held in the maintenance storeroom. This simplifies procurement, reduces carrying costs, and ensures that any technician on shift can execute the replacement without specialized training.

In older installations where the original XBTF panel has been discontinued or is difficult to source, the XBTF024510 provides a validated upgrade path that preserves the original control cabinet layout, panel cut-out dimensions, and communication wiring. This eliminates the need for cabinet modification or new cable runs — minimizing both labor cost and the risk of introducing wiring errors during an emergency repair.

Each unit supplied by TOPNLMS undergoes pre-shipment functional verification, including power-on testing and communication port validation, before dispatch. This ensures that the replacement unit is confirmed operational before it reaches the maintenance team, reducing the risk of receiving a defective spare during a critical shutdown window.

Support FAQ

Q1: Is the XBTF024510 compatible with my existing Vijeo Designer project file?
Yes. The XBTF024510 is fully compatible with Vijeo Designer project files developed for the Magelis XBTF platform. No software re-engineering is required for a like-for-like replacement. Verify that the communication parameters (baud rate, protocol, node address) in the project file match the PLC configuration before powering on the replacement unit.

Q2: What is the warranty coverage and what does it include?
All XBTF024510 units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit is tested prior to shipment. Warranty claims are supported via email at [email protected] with a standard RMA process.

Q3: How should I verify the unit is genuine before installation?
Genuine Schneider Electric XBTF024510 units carry a factory serial number label on the rear housing with a traceable production date code. Verify the label format, check the Schneider Electric product reference markings on the PCB visible through the ventilation slots, and confirm the unit powers on to the Magelis boot screen before connecting to the PLC.

Q4: What is the recommended spare inventory strategy for multi-line facilities?
For facilities operating three or more production lines with Magelis HMIs, maintaining a minimum of one XBTF024510 spare per five installed units is recommended. Given typical HMI service life of 7–10 years and the increasing difficulty of sourcing legacy Schneider Electric panels, procuring a buffer stock of 2–3 units during planned maintenance budget cycles provides meaningful protection against extended lead times during emergency shutdowns.
