Schneider Electric XBTFC044610 Ruggedized HMI Touch Panel

Product Overview

Schneider Electric XBTFC044610 Ruggedized HMI Touch Panel: Industrial Resilience for Harsh Environments

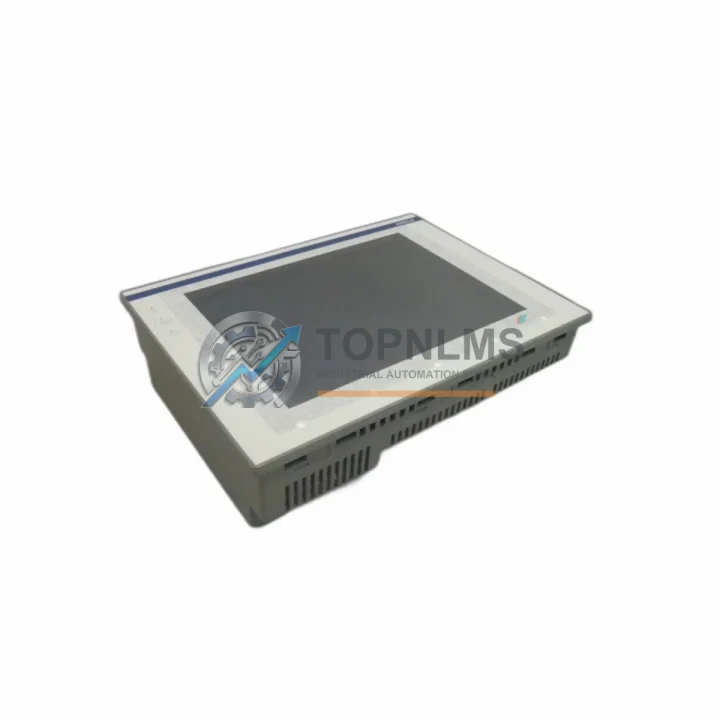

The Schneider Electric XBTFC044610 is a Magelis XBTFC series 4.3-inch color touch panel engineered for continuous, reliable operation in the most demanding industrial environments. Designed to withstand high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference, this HMI module delivers consistent human-machine interface performance where standard panels fail. Whether deployed on a continuous production line, inside a sealed control cabinet, or at a remote field station in a hazardous area, the XBTFC044610 maintains stable communication and display integrity under sustained operational stress.

Built on Schneider Electric’s proven Magelis platform, the XBTFC044610 integrates seamlessly into Modicon M340, M580, and Premium PLC architectures, as well as third-party control systems via its multi-protocol communication ports. Its compact panel-mount form factor fits standard cutouts in industrial enclosures, reducing installation time and simplifying retrofits in legacy control cabinets.

Rugged Specifications Table

Comprehensive Protection Solutions

The XBTFC044610 is most effective when deployed as part of a coordinated control and protection architecture. In a typical Modicon M340 or M580 PLC panel, the HMI connects directly to the CPU module — such as the BMX P34 2020 or BMX NOE 0110 Ethernet communication module — providing real-time visualization of I/O states, alarm conditions, and process variables. Paired with BMX DDI 1602 digital input modules and BMX DAO 1605 analog output modules, the XBTFC044610 gives operators a clear, touch-driven interface to monitor and adjust field signals without requiring a separate SCADA workstation.

In power distribution and motor control applications, the panel works alongside Schneider Electric TeSys D-series contactors and ATV320 variable speed drives, displaying drive status, fault codes, and speed references directly on the HMI screen. When integrated with Preventa XPSMF safety controllers or Zelio Logic smart relays, the XBTFC044610 can visualize safety loop status and emergency stop conditions, supporting IEC 62061 and ISO 13849 safety architectures without adding complexity to the panel wiring.

For communication-intensive installations, the XBTFC044610 supports Modbus RTU over RS-485, enabling it to poll data from PowerLogic PM5000 series power meters, Acti9 iEM energy meters, and third-party field devices on the same serial bus. In distributed I/O configurations, it can display data aggregated from Advantys STB island bus modules or CANopen remote I/O nodes, giving maintenance personnel a single-point view of the entire control network from the cabinet door.

Terminal block integrity is equally important in harsh environments. The XBTFC044610 is routinely installed alongside Linergy TR terminal blocks and Schneider Electric NSYTRV series DIN rail terminals, ensuring that signal wiring to the HMI’s communication ports remains secure against vibration-induced loosening — a common failure mode in mobile plant and mining equipment.

Application in Critical Infrastructure

In oil and gas upstream facilities, the XBTFC044610 is deployed in wellhead control panels and compressor skid enclosures where ambient temperatures fluctuate widely and hydrocarbon vapors demand robust panel sealing. Its IP65-rated front bezel prevents ingress of dust and pressurized wash-down water, making it suitable for Zone 2 classified areas when installed in an appropriately rated enclosure.

In power generation and substation automation, the panel serves as a local operator interface for protection relay panels and transformer monitoring systems. Operators use it to acknowledge alarms from Sepam series protection relays, review event logs, and initiate manual switching sequences — all without requiring remote SCADA access, which is critical during network outages.

In water and wastewater treatment plants, the XBTFC044610 controls pump sequencing, monitors tank levels, and displays chlorination dosing rates in environments with high ambient humidity and chemical vapors. Its non-condensing humidity rating and sealed front panel make it a reliable choice for wet areas where standard office-grade HMIs deteriorate rapidly.

In metallurgical and heavy manufacturing facilities — steel mills, aluminum smelters, and cement plants — the panel withstands radiated heat from furnaces, high-frequency vibration from rolling mills, and intense electromagnetic interference from large motor drives. Maintenance teams value the XBTFC044610 as a direct replacement for aging Magelis XBT panels, preserving existing application software and wiring while restoring display reliability on aging production lines.

In mining operations, both surface and underground, the panel is mounted in mobile equipment control cabinets and fixed conveyor drive stations. Its wide operating temperature range and vibration compliance ensure uninterrupted operation during continuous extraction cycles, where unplanned HMI failures can halt entire production sections.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The XBTFC044610 carries a 12-month warranty from the date of shipment, covering manufacturing defects, component failure, and functional non-conformance under normal industrial operating conditions. If the unit fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every XBTFC044610 unit undergoes a pre-shipment functional inspection that includes power-on verification, display integrity check, touch calibration test, and communication port continuity confirmation. Units sourced as surplus new are additionally inspected for physical condition, connector integrity, and firmware version compatibility. A test report is available upon request for critical infrastructure procurement.

Q3: Is the XBTFC044610 compatible with my existing Magelis application software?
Yes. The XBTFC044610 is fully compatible with Vijeo Designer application software, which is the standard development environment for the Magelis XBTFC series. Existing .xba project files created for the XBTFC series can be downloaded directly to the XBTFC044610 without modification, provided the firmware version is aligned. TOPNLMS can advise on firmware compatibility for your specific application upon inquiry.

Q4: Can TOPNLMS support long-term supply for ongoing maintenance and spare parts programs?
Yes. TOPNLMS maintains stock of Schneider Electric Magelis HMI panels and associated Modicon PLC components to support planned maintenance schedules, emergency breakdowns, and capital project builds. For customers requiring guaranteed availability over a 12–36 month horizon, we offer reserved stock agreements. Contact our team at [email protected] or call +86 18359293191 to discuss your supply continuity requirements.
