Schneider XBTF024610 Replacement for Magelis XBTF Series

Product Overview

Schneider XBTF024610 Replacement for Magelis XBTF Series: Seamless Transition & Legacy System Upgrade

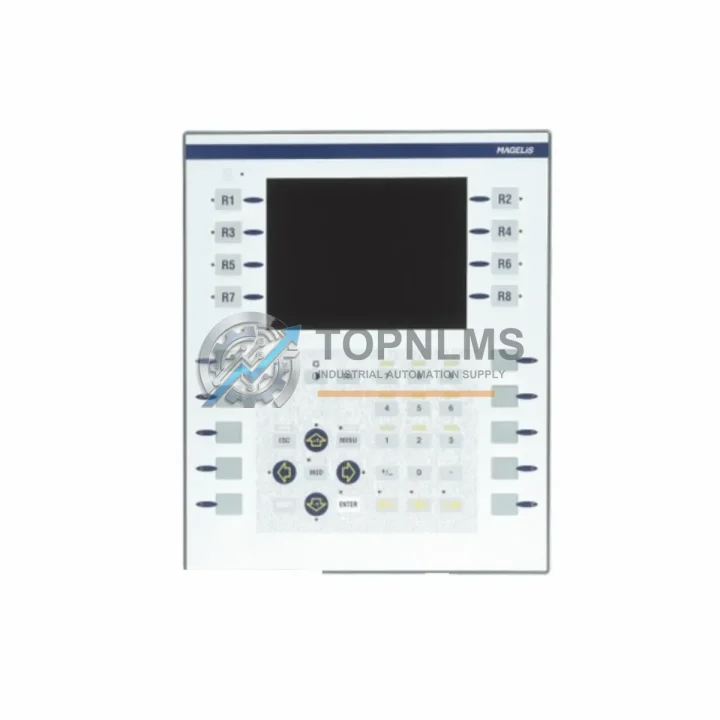

When your Schneider Electric Magelis XBTF024610 HMI membrane keypad reaches end-of-life or sustains physical damage on the production floor, unplanned downtime becomes your most costly risk. The XBTF024610 is a dedicated membrane keypad overlay designed for the Magelis XBTF operator terminal family — a widely deployed HMI platform across manufacturing, water treatment, energy distribution, and process automation facilities worldwide. TOPNLMS maintains verified stock of the XBTF024610 to support emergency replacement, planned maintenance cycles, and full panel retrofit projects, ensuring your control system returns to operation with minimal disruption.

The XBTF series terminals are commonly integrated into legacy SCADA architectures and standalone machine control panels. Over time, membrane keypads experience wear from repeated operator input, chemical exposure, or environmental ingress. Rather than replacing the entire XBTF operator terminal — which would require HMI program migration, panel cutout modification, and communication reconfiguration — a direct membrane keypad replacement using the XBTF024610 restores full functionality while preserving your existing Vijeo Designer application, communication wiring, and panel layout. This approach dramatically reduces retrofit labor hours and eliminates the need for re-commissioning the HMI software stack.

For facilities running Schneider Electric Modicon M340 or Modicon M580 PLCs as the host controller, the XBTF terminal communicates via Modbus RTU or Modbus TCP/IP depending on the installed communication module. The XBTF024610 keypad replacement does not affect the communication protocol layer — your existing RS-485 wiring to the Modicon CPU or the Ethernet connection to the M580 rack remains intact. Similarly, if your system uses a Twido or Premium PLC as the legacy controller, the XBTF terminal’s serial communication configuration is preserved after keypad replacement, avoiding any need to re-establish the PLC-HMI link or modify the Vijeo Designer communication driver settings.

In panel retrofit scenarios where the XBTF terminal is mounted alongside other Schneider Electric components — such as the XBTN400 compact display, XBTGT series graphic terminals, or Zelio Logic smart relays — the XBTF024610 keypad swap is a non-invasive procedure. The terminal body, DIN rail or panel-mount bracket, and rear connector remain undisturbed. Technicians can complete the replacement without removing adjacent devices, disconnecting power supply wiring to the TSXPSY2600M or similar 24VDC power supply modules, or interrupting the I/O wiring connected to the Modicon TM3 or TM2 expansion modules in the same cabinet.

For sites undertaking a broader migration from XBTF-based operator stations to newer Magelis GTO or STO graphic terminals, the XBTF024610 serves as a cost-effective interim solution. Maintaining a spare XBTF024610 in your critical spares inventory allows production to continue while the full HMI migration project — including Vijeo Designer screen redesign, new panel cutout fabrication, and updated communication mapping — is planned and executed without time pressure. This staged approach is widely recommended in industrial maintenance best practices to avoid forcing emergency decisions during production shutdowns.

Wiring compatibility is a primary concern during any HMI component replacement. The XBTF024610 connects to the XBTF terminal body via a standardized flat-flex or ribbon connector interface. No soldering, crimping, or custom cable fabrication is required. The connector orientation and pin assignment are identical across the XBTF024610 production run, ensuring that technicians familiar with the original installation can complete the swap using standard hand tools in under 30 minutes. This is particularly valuable in facilities where certified electricians are scheduled in limited maintenance windows.

Procurement teams evaluating the XBTF024610 should note that Schneider Electric has progressively reduced availability of legacy Magelis XBTF accessories through standard distribution channels. TOPNLMS sources XBTF024610 units through verified industrial supply networks and maintains buffer stock specifically for customers with multi-site XBTF deployments. Each unit is inspected prior to shipment, and orders are typically dispatched within 1–3 business days from our Xiamen warehouse. International shipping to Southeast Asia, the Middle East, and Europe is supported with full commercial documentation including packing lists, commercial invoices, and certificates of origin for customs clearance.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful XBTF024610 replacement is rarely a standalone action — it is part of a broader effort to maintain or modernize the control panel ecosystem. During the keypad replacement procedure, maintenance teams frequently audit adjacent components for wear or obsolescence. The XBTF terminal itself may be paired with a Modicon TM3DI16 digital input module or TM3DQ16R digital output module handling field I/O, and verifying the integrity of the terminal block wiring on these modules is a natural concurrent task. If the XBTF terminal communicates via RS-485 to a Modicon M340 CPU, the BMXNOE0100 Ethernet communication module on the M340 rack may also be reviewed for firmware currency during the same maintenance window.

In panels where the XBTF operator station is mounted alongside a Zelio Logic SR3B261BD smart relay handling auxiliary logic, or a Harmony XB4 pushbutton station for local operator control, the XBTF024610 keypad replacement can be coordinated with a broader panel inspection without requiring a separate shutdown. For facilities that use a TSXPSY2600M or ABLP1A24062 24VDC power supply to feed the HMI and I/O rail, confirming output voltage stability before reinstalling the new keypad is a recommended commissioning step that adds negligible time to the procedure.

Sites planning a longer-term migration from the XBTF platform to the Magelis XBTGT5330 or HMIGTO5310 graphic terminal should retain the XBTF024610 as a bridge spare. The transition to a graphic terminal will require a new Vijeo Designer project, updated communication addressing, and a revised panel cutout — but the existing Modicon PLC program, field wiring to TM3 I/O modules, and cabinet power distribution remain fully reusable, significantly reducing the total migration cost.

Retrofit Guidance FAQ

Q: Will replacing the XBTF024610 keypad require me to reload the HMI application?
A: No. The membrane keypad is a purely mechanical input interface. The XBTF terminal’s internal memory, Vijeo Designer application, and communication configuration are stored on the terminal body and are completely unaffected by a keypad replacement. No re-download from the programming PC is required.

Q: Is the XBTF024610 compatible with all variants of the Magelis XBTF terminal?
A: The XBTF024610 is designed for specific XBTF terminal models. Please confirm your terminal’s full model reference against the XBTF024610 datasheet or contact TOPNLMS at [email protected] with your terminal nameplate information for a compatibility confirmation before ordering.

Q: Does the keypad replacement affect the Modbus communication link between the XBTF terminal and the PLC?
A: No. The Modbus RTU or Modbus TCP/IP communication link is established through the terminal’s communication port and internal firmware — not through the keypad overlay. The communication link remains active during the keypad replacement if the terminal remains powered, and is fully restored immediately upon reassembly.

Q: What tools are required for the XBTF024610 replacement?
A: Typically a Phillips screwdriver and plastic spudger are sufficient. No specialized tools, crimping equipment, or soldering is required. The flat-flex connector is a zero-insertion-force (ZIF) type on most XBTF variants, requiring only careful locking tab manipulation.

Q: Can I install the XBTF024610 without powering down the control panel?
A: TOPNLMS strongly recommends following your facility’s lockout/tagout (LOTO) procedure and powering down the XBTF terminal before performing the keypad replacement. While the keypad itself carries no high-voltage connections, safe work practices require isolation of the panel before opening any enclosure or handling internal components.

Q: My XBTF terminal is communicating with a legacy Twido PLC. Will the replacement affect this link?
A: No. The Twido-to-XBTF serial communication link is entirely independent of the keypad hardware. After replacement, the terminal will resume communication with the Twido controller without any reconfiguration.

Warranty Assurance

Every XBTF024610 unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to dispatch, each unit undergoes a visual and functional inspection to verify connector integrity, keypad actuation response, and overlay condition. Units that do not meet our quality threshold are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the customer’s preference and the nature of the defect. Our after-sales response target is 24–48 hours for initial assessment, with replacement dispatch within 3–5 business days for confirmed warranty cases. Customers are not required to return the defective unit before a replacement is dispatched for critical production applications — contact our team to discuss advance replacement arrangements.

For procurement teams requiring documentation, TOPNLMS provides commercial invoices, packing lists, certificates of origin, and warranty certificates with every shipment. These documents support customs clearance, asset registration, and internal procurement audit requirements. Bulk orders for multi-site spares programs are accommodated with volume pricing — contact [email protected] for a formal quotation.

Orders are dispatched from our Xiamen warehouse within 1–3 business days. Express shipping via DHL, FedEx, or UPS is available for urgent requirements. Standard shipping to most destinations in Asia, the Middle East, and Europe is 5–10 business days.
