Schneider VX4A1104 Original Industrial Spare Altivar Compatible

Product Overview

Schneider VX4A1104 Original Industrial Spare Altivar Compatible: System Stability & Industrial Spare Maintenance Value

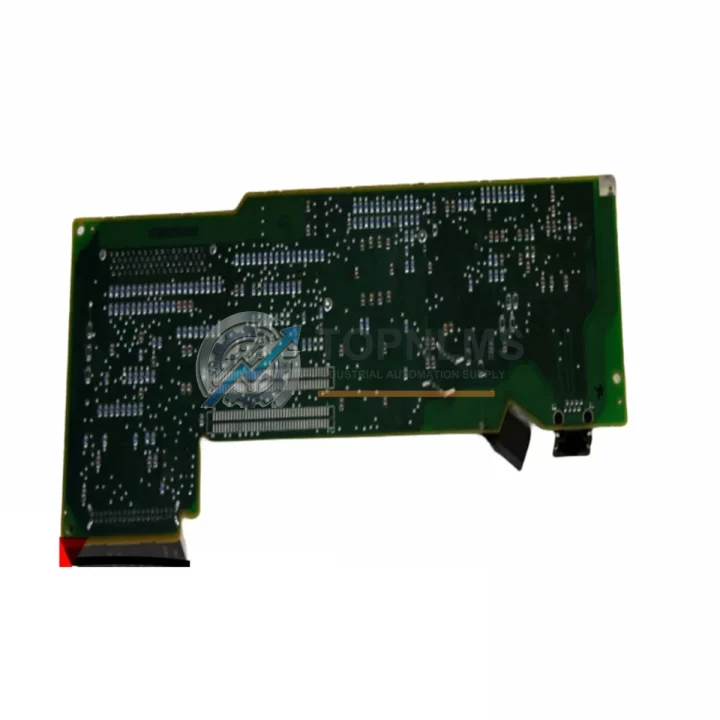

The Schneider Electric VX4A1104 is the original control line terminal board designed for the Altivar ATV71 and ATV61 series variable speed drives — two of the most widely deployed AC drive platforms in global industrial automation. In factory environments where continuous production is non-negotiable, the VX4A1104 plays a critical role in maintaining the integrity of the control signal interface between the drive and the broader automation system. Sourced directly from Schneider Electric’s manufacturing chain and verified against OEM specifications, this spare part is an essential component for any maintenance team responsible for Altivar-based motor control systems.

Whether you are managing a single production line or overseeing a multi-zone facility with dozens of Altivar drives, having a verified VX4A1104 terminal board in your spare parts inventory is a proactive decision that directly reduces unplanned downtime risk. Control line terminal boards are subject to mechanical wear from repeated wiring operations, vibration fatigue, and thermal cycling — making them a predictable failure point in aging drive installations. Replacing a degraded VX4A1104 before failure occurs is far less costly than an emergency shutdown.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled inspection of your Altivar ATV71 or ATV61 drive cabinet should never be limited to a single component. The VX4A1104 control line terminal board sits at the intersection of the drive’s control wiring harness and its internal logic — meaning that any degradation here can cascade into erratic speed references, loss of start/stop commands, or complete drive fault conditions. When your maintenance team opens the control cabinet for a VX4A1104 inspection or replacement, it is best practice to simultaneously evaluate the surrounding components that share the same electrical environment.

Begin with the ATV71 or ATV61 power supply board, which provides regulated DC voltage to the control card and terminal board. A marginal power supply can cause intermittent terminal board faults that are difficult to diagnose without replacing both components. Next, inspect the Altivar control card (such as the VX4A1101 or equivalent series control board) for signs of capacitor bulging, corrosion on the connector pins, or burn marks near the power regulation section.

The I/O extension module connected to the ATV71 — for example, the VW3A3201 or VW3A3202 I/O option card — should be checked for secure seating and clean terminal contacts. Loose I/O connections are a common source of nuisance faults in Altivar installations. Similarly, the communication option card (such as the VW3A3310 Modbus/TCP or VW3A3308 Profibus module) should be inspected for firmware version compatibility and connector integrity, particularly in systems that have undergone network upgrades.

Do not overlook the braking resistor and braking unit in high-inertia applications — these components experience significant thermal stress and should be tested for resistance drift. The EMC input filter upstream of the drive is another component worth inspecting during any planned shutdown, as a degraded filter can introduce conducted interference that affects terminal board signal quality. Inspect the line reactor or input choke for winding insulation integrity, especially in environments with frequent voltage transients.

At the wiring level, check all control cable shielding and grounding connections at the terminal board. Unshielded or improperly grounded control cables are a leading cause of signal noise on Altivar drives. If your installation uses relay output modules for motor contactor control, verify the relay coil voltage and contact resistance — worn relay contacts can create false feedback signals at the terminal board level. Finally, review the condition of the HMI operator panel (such as the VW3A1101 remote display) and its connecting cable, as a faulty panel cable can generate communication errors that are misdiagnosed as terminal board failures.

Strategic Replacement Solutions

The VX4A1104 is a direct OEM replacement for the original control line terminal board fitted to Altivar ATV71 and ATV61 drives at the factory. Unlike third-party alternatives, the original Schneider Electric part ensures full pin-for-pin compatibility with the drive’s internal connector architecture, eliminating the risk of signal mapping errors or mechanical fit issues during installation.

For facilities managing aging Altivar ATV61 or ATV71 installations — drives that may be 10 to 15 years into their service life — the VX4A1104 provides a cost-effective path to extending system lifespan without the capital expenditure of a full drive replacement. Replacing the terminal board restores the control interface to OEM specification, which is particularly valuable in applications where the drive is integrated into a legacy SCADA or DCS architecture that cannot easily accommodate a new drive model with a different parameter set or communication protocol.

Maintenance planners should consider stocking at least one VX4A1104 per every five to ten Altivar drives in service. Given the lead times associated with sourcing original Schneider Electric spare parts through standard distribution channels, having on-site inventory eliminates the risk of extended downtime while waiting for parts procurement. The VX4A1104 is compact, lightweight, and requires no special storage conditions beyond standard ESD-safe packaging — making it an economical addition to any industrial spare parts cabinet.

All units shipped from TOPNLMS are tested prior to dispatch and covered by a 12-month warranty. Each part is packaged in ESD-protective materials and accompanied by basic installation reference documentation. Worldwide shipping is available with tracking, and expedited options are offered for urgent maintenance requirements.
