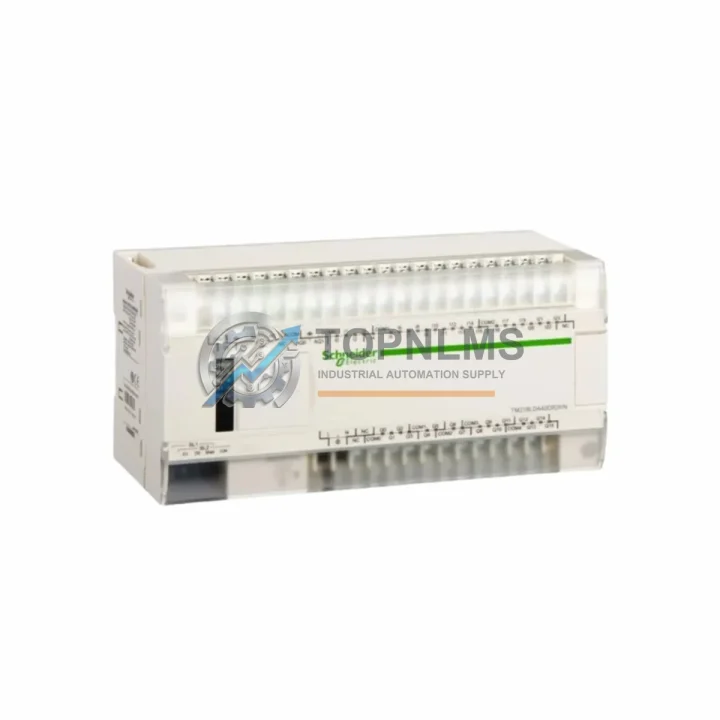

Schneider Electric TM218LDA40DR2HN Original Industrial Spare M218

Product Overview

Schneider Electric TM218LDA40DR2HN Original Industrial Spare M218: System Stability and Maintenance Value

The Schneider Electric TM218LDA40DR2HN is a core controller in the Modicon M218 series, engineered for demanding industrial automation environments where system uptime and control reliability are non-negotiable. As a 40-I/O relay output PLC, this unit serves as the central processing backbone in machine-level automation, discrete manufacturing lines, packaging systems, conveyor control, and building management applications. Sourcing an original, tested TM218LDA40DR2HN spare is one of the most impactful decisions a maintenance team can make to protect against unplanned downtime and extend the operational life of existing control architectures.

At TOPNLMS, every TM218LDA40DR2HN unit is sourced from verified supply channels, inspected prior to dispatch, and backed by a 12-month warranty. We ship globally with full documentation support, ensuring your procurement and maintenance teams receive a part that is ready to install and perform from day one.

Critical Technical Specs

Preventive Maintenance Strategy

A scheduled maintenance approach built around the TM218LDA40DR2HN significantly reduces the risk of cascading failures in your control cabinet. The M218 PLC does not operate in isolation — it is the nerve center of a broader electrical and control architecture. When performing a planned inspection or emergency replacement of this controller, experienced maintenance engineers consistently recommend a simultaneous audit of the surrounding components to avoid repeat callouts and secondary failures.

Begin with the TM2DDI8DT digital input expansion module and TM2DDO8DT digital output module, which are the most common I/O extensions paired with the TM218LDA40DR2HN in machine-level applications. Worn or intermittently faulting I/O modules are a frequent root cause of misdiagnosed PLC failures. While the controller is offline for replacement, inspect the TM2AMI2HT analog input module if your system monitors process variables such as temperature or pressure — analog signal drift is often invisible until a batch quality event occurs.

Next, verify the condition of the 24 VDC power supply module feeding the M218 rack. Voltage ripple or marginal output from an aging power supply is a leading cause of PLC soft faults and unexpected restarts. Brands such as Schneider Electric’s ABL8REM24030 or equivalent 24V DIN rail PSUs should be load-tested during any planned outage. Alongside the power supply, inspect the terminal blocks and wiring ferrules on the I/O connectors — loose terminations on relay output circuits are a common source of intermittent field device faults that are incorrectly attributed to the PLC itself.

For systems using serial communication, check the RS-485 communication cable and any signal isolators in the Modbus RTU loop. Degraded shielding or ground loops on serial lines can cause the M218 to log communication errors that mimic hardware faults. If your installation uses an HMI panel — such as a Schneider Electric Magelis HMIGTO or HMISTO series — verify the Ethernet or serial link between the HMI and the TM218LDA40DR2HN, as a faulty HMI connection can mask legitimate PLC diagnostics.

Finally, review the fuse modules and circuit protection on the relay output circuits. Relay outputs driving inductive loads — motors, solenoids, contactors — are subject to contact wear and arc erosion. Pairing your TM218LDA40DR2HN replacement with a proactive inspection of the relay output wiring, load fuses, and any interposing relay modules in the cabinet ensures the new controller enters service in a clean, low-risk electrical environment. Keeping a stocked spare of the TM218LDA40DR2HN alongside one or two TM2 I/O expansion modules and a spare 24V PSU is the minimum recommended inventory posture for any facility running M218-based control systems.

Strategic Replacement Solutions

The TM218LDA40DR2HN is a direct replacement for earlier Modicon M218 variants and is backward-compatible with existing TM2 and TM3 expansion modules, preserving your wiring infrastructure and reducing installation time during an emergency swap. Unlike migrating to a new PLC platform — which requires re-engineering the program, retraining operators, and recertifying the machine — a like-for-like replacement with an original TM218LDA40DR2HN allows maintenance teams to restore production within hours rather than days.

For facilities managing aging Modicon M218 installations, maintaining at least one cold-standby TM218LDA40DR2HN in the spare parts cabinet is a proven strategy to cap maximum downtime exposure. The unit’s program can be pre-loaded from a backup file using SoMachine or EcoStruxure Machine Expert, meaning a trained technician can complete a full controller swap and production restart in under two hours. This approach is significantly more cost-effective than emergency procurement at spot-market prices during an active production stoppage.

TOPNLMS supplies the TM218LDA40DR2HN as an original Schneider Electric component, not a counterfeit or remanufactured substitute. Each unit is tested for power-on functionality, I/O integrity, and communication port operation before dispatch. Export documentation, CE declarations, and test reports are available upon request to support your incoming inspection and quality records.

Support FAQ

Q1: Is the TM218LDA40DR2HN compatible with my existing TM2 and TM3 I/O expansion modules?
Yes. The TM218LDA40DR2HN is fully compatible with the Modicon TM2 and TM3 I/O expansion module families. You can connect up to 7 TM2/TM3 modules on the right-side expansion bus without any hardware modification. Your existing wiring and I/O addressing remain unchanged, allowing a direct swap with minimal reconfiguration.

Q2: What is included in the 12-month warranty, and what does it cover?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions, including power-on failure, I/O port malfunction, and communication port faults. It does not cover damage caused by incorrect wiring, overvoltage events, or physical impact. TOPNLMS provides a replacement or full refund within the warranty period upon confirmation of the defect.

Q3: How do I verify the TM218LDA40DR2HN is genuine before installation?
Each unit supplied by TOPNLMS includes the original Schneider Electric product label with traceable batch markings. You can verify authenticity by checking the firmware version via SoMachine/EcoStruxure Machine Expert upon first connection — genuine units will report the correct firmware build and hardware revision. We also provide a pre-shipment test report on request.

Q4: What is the recommended spare parts inventory strategy for M218-based systems?
For facilities with 3 or more M218 controllers in operation, we recommend maintaining a minimum of one TM218LDA40DR2HN cold-standby unit, one spare 24V DIN rail power supply, and one spare TM2 digital I/O module. This three-part inventory posture covers the most common failure modes and allows same-shift recovery from the majority of PLC-related production stoppages without emergency procurement.
