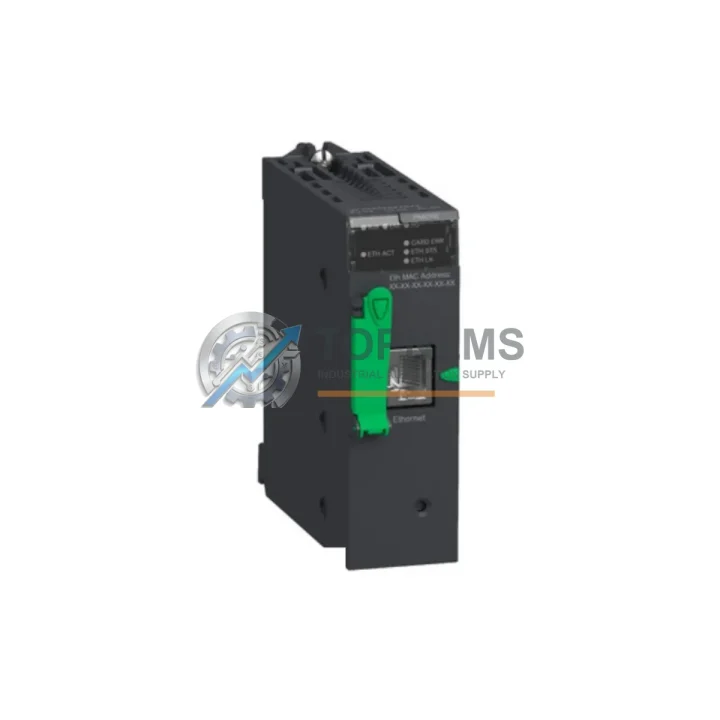

Schneider BMXPRA0100 Ruggedized Remote IO Adapter Module

Product Overview

Schneider BMXPRA0100 Ruggedized Remote IO Adapter Module: Industrial Resilience for Harsh Environments

The Schneider Electric BMXPRA0100 is a high-integrity Remote IO Adapter Module engineered for the Modicon M340 platform — one of the most widely deployed mid-range PLC architectures in global process and discrete manufacturing. Designed to operate reliably under the demanding conditions found in oil and gas facilities, mining operations, power generation plants, water treatment stations, and heavy metallurgical environments, the BMXPRA0100 delivers consistent data exchange between the central CPU rack and distributed I/O sub-racks across extended cable runs. Its ruggedized design addresses the core challenges of industrial field deployment: high ambient temperature, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference — all without compromising scan-cycle integrity or communication throughput.

In continuous production lines where unplanned downtime carries significant financial and safety consequences, the BMXPRA0100 serves as the backbone of distributed control architecture. It connects seamlessly with BMX CPS power supply modules, BMX DDI and BMX DDO discrete I/O modules, BMX AMI and BMX AMO analog I/O modules, and BMX NOM communication modules within the same M340 rack family. This tight ecosystem integration ensures deterministic I/O response times and simplifies cabinet wiring, reducing the risk of field-level faults caused by loose terminations or incompatible signal levels.

Rugged Specifications Table

Comprehensive Protection Solutions

The BMXPRA0100 does not operate in isolation — it is a critical node within a layered control and protection architecture. In a typical M340-based control cabinet, the adapter module works in concert with the BMXP342020 or BMXP342030 CPU modules, which handle program execution and global I/O management. Rack power is delivered by the BMXCPS2000 or BMXCPS3500 power supply modules, both of which provide regulated 24 VDC backplane power with built-in short-circuit and overload protection — essential for maintaining stable operation when field wiring is subject to transient surges or ground faults.

On the I/O side, the BMXPRA0100 sub-rack typically hosts BMXDDI1602 discrete input modules and BMXDDO1602 discrete output modules for digital field signals, alongside BMXAMI0410 analog input modules for 4–20 mA process measurements from pressure transmitters, flow meters, and temperature sensors. In applications requiring functional safety compliance, the adapter integrates within architectures that include Preventa XPSMC safety relay modules and XPSMCMCO safety controller modules, which monitor emergency stop circuits, light curtains, and safety door interlocks in accordance with IEC 62061 and ISO 13849.

For facilities using Modbus TCP or EtherNet/IP as the plant-floor communication backbone, the BMXPRA0100 sub-rack can be paired with BMXNOE0110 Ethernet communication modules, enabling transparent data exchange with SCADA systems, historian servers, and HMI panels such as the Magelis HMIGTO series. In legacy installations where Modbus RTU or serial communication is still in use, BMXNOM0200 serial communication modules provide backward-compatible connectivity without requiring a full network upgrade.

Surge protection at the cabinet entry point — typically provided by Schneider Electric Acti9 iQuick PRD surge protective devices or equivalent DIN-rail SPDs — further shields the BMXPRA0100 and its associated I/O modules from lightning-induced transients and switching surges on power and signal lines. This multi-layer protection strategy is standard practice in critical infrastructure installations where module replacement during live production is operationally unacceptable.

Application in Critical Infrastructure

In upstream oil and gas operations, the BMXPRA0100 is deployed in wellhead control panels and pipeline SCADA outstations where the module must maintain reliable communication despite wide ambient temperature swings, vibration from pumping equipment, and the ever-present risk of electromagnetic interference from variable frequency drives controlling submersible pumps. The module’s X Bus architecture ensures that even in the event of a single I/O module fault, the remaining modules in the sub-rack continue to operate — a critical feature for unmanned remote stations where on-site intervention may take hours.

In coal and metal mining environments, the BMXPRA0100 is integrated into conveyor control systems, ventilation fan controllers, and hoisting equipment automation panels. These installations demand modules that can withstand continuous vibration, coal dust ingress at the cabinet seams, and voltage fluctuations caused by large motor starts. The module’s compliance with IEC 60068 environmental test standards provides documented assurance of mechanical and thermal robustness that procurement engineers and safety auditors require.

Power generation facilities — including thermal, hydroelectric, and combined-cycle gas turbine plants — rely on M340-based distributed control systems for auxiliary equipment automation: cooling water pumps, fuel oil handling, compressed air systems, and generator protection relay interfaces. In these applications, the BMXPRA0100 enables the extension of the main CPU rack’s I/O capacity to remote marshalling panels located up to 100 meters away, reducing the volume of field cabling routed back to the central control room and improving overall system maintainability.

Water and wastewater treatment plants present a uniquely corrosive operating environment, with high ambient humidity, hydrogen sulfide exposure in sludge handling areas, and frequent wash-down cycles near electrical panels. The BMXPRA0100, installed in appropriately rated IP54 or IP65 enclosures with filtered ventilation, provides the I/O expansion capability needed for distributed pump station control, chemical dosing automation, and effluent quality monitoring — all while maintaining the communication integrity required for regulatory compliance reporting.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating and storage conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Modules are inspected upon return, and replacements are dispatched within 3–5 business days of fault confirmation.

Q2: How is each BMXPRA0100 unit tested before shipment?
Every BMXPRA0100 unit in our inventory undergoes a pre-shipment functional verification process that includes power-on self-test confirmation, backplane communication bus integrity check, and visual inspection for physical damage, corrosion, or counterfeit indicators. Units that do not pass all inspection criteria are quarantined and not offered for sale. A test report is available upon request for critical infrastructure procurement.

Q3: Is the BMXPRA0100 compatible with all Modicon M340 CPU and rack configurations?
The BMXPRA0100 is designed for use with Modicon M340 BMX XBP sub-racks (4, 6, 8, and 12-slot configurations) and is compatible with all M340 CPU modules including the BMXP341000, BMXP342000, BMXP342010, BMXP342020, and BMXP342030. It is not compatible with Modicon M580, Quantum, or Premium platform racks. If you are unsure about compatibility with your existing installation, our technical team can review your rack configuration before order confirmation.

Q4: Can TOPNLMS support long-term or repeat supply of the BMXPRA0100 for maintenance and spare parts programs?
Yes. TOPNLMS maintains dedicated stock of the BMXPRA0100 and other Modicon M340 series modules to support planned maintenance schedules, emergency spare parts programs, and capital project procurement. We can provide blanket order arrangements, reserved stock agreements, and advance shipment notifications for customers with critical infrastructure dependencies. Contact [email protected] or call +86 18359293191 to discuss your supply continuity requirements.
