Schneider TSXMFPP004M Replacement for Magelis XBT Series: Seamless Transition to Modern HMI Memory

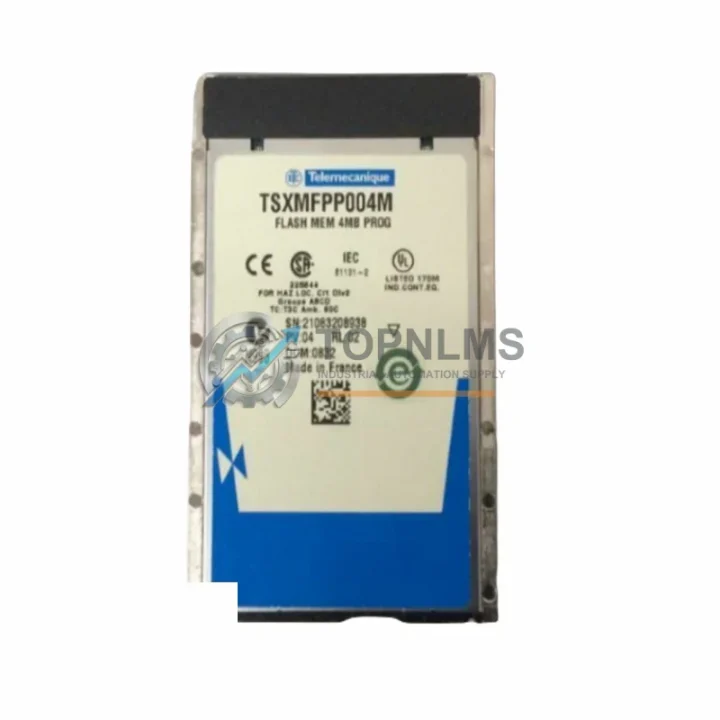

The Schneider Electric TSXMFPP004M is a 4 MB PCMCIA-format Flash Memory Card designed exclusively for the Magelis XBT Premium and XBT-F series of operator panels. As Schneider Electric progressively phases out legacy XBT-F and XBT-P hardware in favor of the current Magelis GTO, GTU, and HMIGTO platform, many industrial facilities are confronted with a critical decision: source a verified replacement TSXMFPP004M to maintain existing panel functionality, or execute a structured migration to a supported HMI generation. TOPNLMS supplies both paths — stocking tested TSXMFPP004M units for immediate drop-in replacement and providing migration guidance for facilities planning a broader control system upgrade.

The TSXMFPP004M stores the XBT-F application program, screen configurations, alarm lists, and recipe data in non-volatile Flash memory. Loss or corruption of this card renders the operator panel inoperable, making rapid sourcing a production-critical priority. Unlike SD or USB-based storage used in newer Magelis HMIGTO and HMISCU panels, the TSXMFPP004M uses a Type II PCMCIA interface that is physically and electrically specific to the XBT-F and XBT-P chassis. No adapter or converter is compatible — the replacement must be an exact TSXMFPP004M or a factory-equivalent module.

For facilities running Schneider Electric Modicon Premium PLCs (TSX P57 series) alongside XBT-F panels, the TSXMFPP004M is often part of a broader memory and communication architecture. The PLC program resides on a separate TSX MFP 064K or TSX MFP 128K RAM/Flash card within the Modicon Premium rack, while the TSXMFPP004M handles only the HMI layer. When replacing the TSXMFPP004M, engineers should simultaneously verify the integrity of the Modicon Premium CPU module (such as the TSX P57 103M or TSX P57 203M) and the TSXCUSB485 or TSXSCA72 communication cable connecting the PLC to the XBT panel, as communication faults are frequently misdiagnosed as memory card failures.

Sites planning a full HMI migration from XBT-F to the current Magelis GTO or HMIGTO platform will need to account for several compatibility dimensions. The XBT-F communicates via Uni-Telway (UTW) or Modbus RTU over RS-232/RS-485, while the HMIGTO natively supports Ethernet/IP, Modbus TCP, and EtherNet-based Vijeo Designer connectivity. A migration therefore typically involves replacing the TSXSCA72 serial communication adapter with an Ethernet drop to the PLC’s TSX ETY 110 or TSX ETY 5103 Ethernet module, re-engineering the Vijeo Designer XBT-F project into Vijeo Designer 6.x for the HMIGTO, and verifying that the new panel’s 24 VDC power supply wiring matches the existing cabinet layout. The TSXMFPP004M itself has no equivalent in the HMIGTO platform — application data is stored internally or on a standard SD card (HMIGTO5310 and above).

For multi-panel installations, the migration sequence matters. Facilities typically begin by replacing the most failure-prone XBT-F units first, running the new HMIGTO panels in parallel with the legacy Modicon Premium PLC before cutting over communication. During this parallel phase, the TSXMFPP004M in the remaining XBT-F panels must remain functional, making a verified spare stock essential. TOPNLMS maintains ready inventory of TSXMFPP004M units to support phased migration projects where downtime windows are narrow and panel failures cannot be tolerated.

Beyond the HMI layer, a complete system modernization often touches the Modicon Premium I/O rack. Discrete input modules such as the TSX DEY 16D2 and analog output modules such as the TSX AEY 414 are frequently upgraded in the same project cycle, as their terminal block wiring is compatible with the newer Modicon M340 and M580 platforms using BMX or BMXDDI/BMXDDO series I/O modules. Signal isolators and marshalling panels may require reconfiguration when transitioning from the Premium’s Fipio or Modbus Plus fieldbus to the M580’s Ethernet-based I/O architecture. The TSXMFPP004M replacement is therefore often the first, lowest-risk step in a multi-phase modernization that ultimately encompasses the PLC CPU, I/O modules, and communication infrastructure.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful TSXMFPP004M replacement or XBT-F migration rarely involves a single component. The following products are commonly required in the same project scope:

The TSXCUSB485 USB-to-RS-485 programming cable is essential for re-uploading or backing up the XBT-F application after a memory card swap — without it, the panel cannot be connected to a programming workstation running Vijeo Designer. For sites migrating to the HMIGTO platform, the HMIGTO5310 is the most common direct-size replacement, offering a 10.4-inch SVGA display in a panel-cut footprint close to the XBT-F1028. The TSX ETY 5103 Ethernet module for the Modicon Premium rack is typically added during migration to enable Modbus TCP communication between the new HMIGTO and the existing PLC, replacing the serial TSXSCA72 adapter. Where the existing Modicon Premium CPU (such as the TSX P57 354M) is retained during a phased upgrade, its firmware should be verified for compatibility with the new communication module before cutover. Facilities also frequently replace the TSX PSY 2600M power supply module at the same time, as aging power supplies are a common root cause of memory card corruption in XBT-F panels. For I/O continuity, the TSX DEY 32D2K discrete input module and TSX DSY 32T2K discrete output module are often swapped in the same maintenance window, as their terminal block wiring is reusable on the Modicon M340 platform. Signal conditioning between legacy 4–20 mA field instruments and the new HMI/PLC architecture may require a TSXCTY2A counting module or a third-party signal isolator to maintain loop integrity during the transition period.

Retrofit Guidance FAQ

Q: Can I replace the TSXMFPP004M without reprogramming the XBT-F panel?
A: Only if you have a valid backup of the application stored on a PC running Vijeo Designer. The TSXMFPP004M does not retain data when removed from the panel — a blank card requires a full application download via the TSXCUSB485 cable before the panel will operate.

Q: Is the TSXMFPP004M compatible with all XBT-F models?
A: Yes — the TSXMFPP004M is compatible with the full XBT-F range (XBT-F024110, XBT-F028110, XBT-F032110, XBT-F1028, XBT-F1128, etc.) and with XBT-P panels that use the same PCMCIA Type II slot. It is not compatible with XBT-N, XBT-GT, or any Magelis HMIGTO/HMIGTU panel.

Q: Will the existing Modbus RTU wiring remain valid after replacing the memory card?
A: Yes. The TSXMFPP004M replacement does not affect the RS-232/RS-485 communication wiring between the XBT-F panel and the Modicon Premium PLC. Communication parameters (baud rate, parity, station address) are stored in the application program on the card — restoring the original application restores all communication settings.

Q: How much panel-cut space does the XBT-F require versus the HMIGTO?
A: The XBT-F1028 requires a 246 × 186 mm panel cutout. The HMIGTO5310 requires a 261 × 201 mm cutout. A migration from XBT-F1028 to HMIGTO5310 therefore requires enlarging the cabinet cutout, which must be planned into the downtime window.

Q: What communication protocol changes are required when migrating from XBT-F to HMIGTO?
A: The XBT-F uses Uni-Telway or Modbus RTU over serial. The HMIGTO uses Modbus TCP or Ethernet/IP over RJ45. Migration requires adding an Ethernet module (TSX ETY 5103 or equivalent) to the Modicon Premium rack and reconfiguring the PLC communication settings in Unity Pro or PL7 Pro.

Q: Does TOPNLMS test TSXMFPP004M units before shipping?
A: Yes. Every TSXMFPP004M unit is powered-on tested and verified for read/write integrity before dispatch. Units are shipped with anti-static packaging and include a test report on request.

Warranty Assurance

Every TSXMFPP004M supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This covers manufacturing defects, read/write failures, and interface faults under normal operating conditions. If a unit fails within the warranty period, TOPNLMS will arrange a replacement dispatch within 3 business days of fault confirmation — no return-to-manufacturer delays. Pre-shipment testing includes powered functional verification and PCMCIA interface continuity checks. Units are individually packaged in anti-static bags with moisture barrier protection suitable for long-term storage in spare parts inventories. Expedited shipping is available to all major industrial regions, with DHL Express and FedEx International Priority options for time-critical plant shutdowns. For bulk procurement or project-based orders, TOPNLMS provides a formal quotation with lead time commitment, inspection certificate, and traceability documentation upon request.
