Schneider GV2-ME22C Replacement/Upgrade for TeSys GV2

Product Overview

Schneider GV2-ME22C Replacement/Upgrade Solution for TeSys GV2: Smooth Transition from Legacy Motor Protection Systems

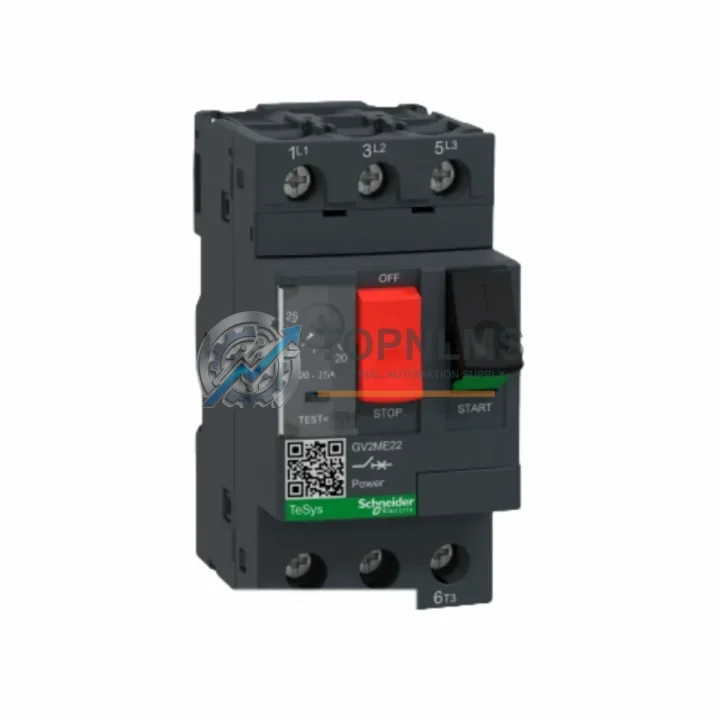

The Schneider Electric GV2-ME22C is a 20–25 A manual motor circuit breaker from the TeSys GV2 series, engineered for direct-on-line motor protection in industrial control panels, machine tool cabinets, conveyor systems, and process automation lines. As legacy motor starters and protection devices reach end-of-life or become difficult to source, facilities engineers and maintenance teams increasingly require a verified, drop-in replacement that preserves existing wiring layouts, DIN rail footprints, and control logic — without forcing a full panel redesign or extended production shutdown.

At TOPNLMS, we supply the GV2-ME22C as a direct replacement and upgrade solution for aging TeSys GV2 installations. Every unit is sourced from authorized channels, individually inspected, and shipped with full documentation to support your retrofit or emergency replacement project.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful motor protection upgrade rarely involves a single component. When migrating from an older TeSys GV2 installation or replacing a failed motor starter assembly, the following components are typically evaluated alongside the GV2-ME22C:

For panels using TeSys D contactors such as the LC1-D25 or LC1-D32, the GV2-ME22C integrates directly upstream, providing coordinated motor protection without additional interposing relays. Engineers replacing a complete motor starter assembly often pair the GV2-ME22C with a LC1-D18 or LC1-D25 contactor and a LRD-series thermal overload relay — though in many GV2 applications the overload function is already built into the circuit breaker itself, simplifying the BOM.

Where the legacy panel includes a GV2-AN11 auxiliary contact block for remote trip signaling to a PLC input card, this side-mount accessory is fully retained during the swap. If the control system uses a Modicon M340 or Modicon M580 PLC with discrete I/O modules monitoring motor status, no program changes are required — the trip signal wiring maps identically to the replacement unit.

Panels that incorporate a GV2-G fuse block for upstream short-circuit coordination can continue using the same fuse assembly. For installations where the motor feeder is protected by a Schneider iC60N or iC60H MCB at the distribution board level, the GV2-ME22C’s 50 kA withstand rating ensures full coordination compliance without re-engineering the upstream protection scheme.

In control cabinets where space is constrained, the GV2-ME22C’s compact 45 mm width matches the original TeSys GV2 footprint exactly, allowing direct replacement without modifying cable ducts, terminal blocks, or adjacent Zelio Logic smart relays or Preventa XPS safety relays mounted in the same enclosure. For multi-motor panels, the GV2-P series push-button operated variants are available as an alternative where remote reset capability is required.

If your retrofit project also involves upgrading the HMI layer, the GV2-ME22C’s trip status can be wired directly to a Magelis HMIGTO or HMISTO touchscreen panel via the PLC’s digital input module, enabling real-time motor fault visualization without additional signal conditioning hardware.

Retrofit Guidance FAQ

Q: Can I replace the GV2-ME22C without rewiring the motor circuit?
A: Yes. The GV2-ME22C uses the same screw-type terminals (2.5–6 mm²) and identical terminal positions as previous TeSys GV2 variants. For standard 3-phase motor circuits, the replacement is a direct swap with no wiring modification.

Q: Will the existing PLC program need to be modified?
A: No. The GV2-ME22C provides the same discrete trip output signal via the GV2-AN11 auxiliary contact block. If your Modicon, Siemens, or Allen-Bradley PLC is already reading a motor fault input from the legacy device, the signal behavior is identical on the replacement unit.

Q: Is the GV2-ME22C compatible with TeSys bus or Modbus communication?
A: The base GV2-ME22C is a standalone manual motor circuit breaker without native fieldbus communication. For networked motor management, the optional TeSys bus communication adapter can be added. Confirm your existing communication architecture before ordering the adapter module.

Q: Does the physical size match the original for panel space planning?
A: Yes. The GV2-ME22C is 45 mm wide and mounts on a standard 35 mm DIN rail, identical to all TeSys GV2 series devices. No panel cutout or cable duct modification is required.

Q: What if the original unit was a GV2-ME21C or GV2-ME20C?
A: The GV2-ME22C covers the 20–25 A range and is the correct replacement for GV2-ME21C (18–25 A) applications where the motor FLA falls within the 20–25 A band. Verify the motor nameplate current before selecting the replacement range.

Q: How do I verify the unit before installation?
A: Each unit shipped by TOPNLMS has been functionally tested for trip mechanism operation, terminal continuity, and manual handle function. A basic bench test with a 3-phase load bank or motor simulator is recommended before panel installation to confirm field wiring integrity.

Warranty Assurance

Every GV2-ME22C supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects, premature trip mechanism failure, and terminal integrity issues under normal operating conditions. Prior to shipment, each unit undergoes outgoing quality inspection including visual examination, handle operation test, and terminal resistance check.

In the event of a warranty claim, TOPNLMS provides replacement dispatch within 3–5 business days upon receipt and verification of the returned unit. Our after-sales team responds to technical inquiries within 24 hours on business days, supporting your maintenance engineers through installation, commissioning, and any post-installation troubleshooting.

For urgent replacement requirements — including emergency breakdowns on production lines — we maintain ready stock in Xiamen and can arrange expedited shipping to minimize your downtime. Bulk procurement for MRO inventory programs is supported with volume pricing and consolidated shipment options.

Contact our technical sales team to confirm compatibility with your specific motor circuit configuration, request a datasheet, or place an order:

📧 [email protected] | 📞 +86 18359293191
