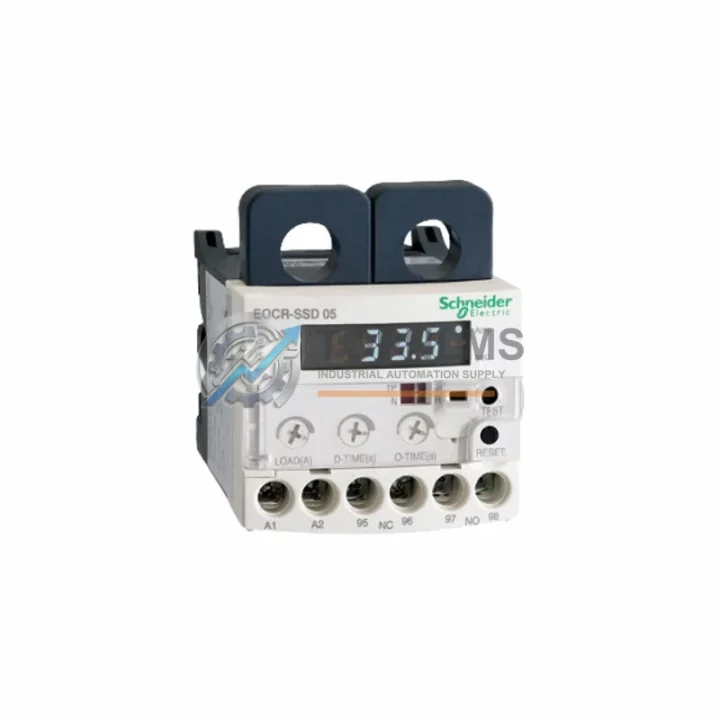

Schneider Electric EOCRSSD-05DF7 Original Industrial Spare EOCR-SSD Compatible

Product Overview

Schneider Electric EOCRSSD-05DF7 Original Industrial Spare EOCR-SSD Compatible: Ensuring System Stability in Critical Motor Protection Circuits

In industrial facilities where motor-driven equipment operates continuously — from conveyor lines and pump stations to compressor banks and HVAC systems — the reliability of overcurrent protection is non-negotiable. The Schneider Electric EOCRSSD-05DF7 is an original electronic overcurrent relay from the proven EOCR-SSD Series, engineered to deliver precise, solid-state motor protection across a wide range of industrial applications. Sourced directly from authorized supply channels and verified against OEM specifications, this unit is a trusted replacement spare for maintenance teams managing aging control panels, scheduled overhauls, or emergency breakdowns.

Holding a verified stock of the EOCRSSD-05DF7 as a critical spare eliminates the risk of extended downtime caused by relay failure. When a motor protection relay trips or fails in a production environment, every hour of unplanned downtime translates directly into lost output and escalating repair costs. Having this unit on the shelf — tested, packaged, and ready to install — is the single most effective insurance policy against motor circuit failures.

Critical Technical Specs

Preventive Maintenance Strategy: Protecting the Full Motor Control Circuit

The EOCRSSD-05DF7 does not operate in isolation — it is one component within a broader motor control and protection circuit. A disciplined preventive maintenance program should treat the entire circuit as a system. When scheduling a relay inspection or replacement cycle for the EOCR-SSD unit, maintenance engineers should simultaneously audit the surrounding components to avoid repeat call-outs and ensure the circuit is fully restored to specification.

During a motor control cabinet inspection, the EOCR-SSD socket base (EOCRSS series) should be checked for contact wear, corrosion, and secure seating — a degraded socket is a common cause of intermittent relay faults that are misdiagnosed as relay failure. Alongside this, the contactor (such as Schneider Electric LC1-D or TeSys D series) that the EOCR relay controls should be inspected for contact pitting and coil resistance, as a worn contactor can cause repeated nuisance tripping that stresses the relay. The thermal overload relay or bimetal overload block, if used in parallel or as a backup protection layer, should also be verified for correct current calibration.

Control power quality is equally critical. The 24 V DC or 110 V AC control power supply module feeding the relay circuit should be load-tested to confirm stable output voltage under full panel load — voltage sags are a known cause of relay malfunction and false trips. If the motor control panel includes a PLC I/O module (such as a Schneider Electric TM3 or TM2 series digital input module) that reads the EOCR relay’s output contact for fault signaling, the I/O module’s input channel should be verified for correct signal threshold and response time.

For panels using terminal blocks (Phoenix Contact or Weidmüller series) to wire the relay output to the PLC or alarm circuit, inspect for loose ferrules, oxidized connections, and correct torque on all screw terminals — poor terminal connections account for a significant proportion of relay circuit faults in humid or vibration-prone environments. Where signal isolators are used to interface the relay output with a DCS analog input card, verify isolator calibration and output signal integrity.

Finally, if the motor protection circuit includes a phase sequence relay or voltage monitoring relay (such as the Schneider Electric RM17 or RM35 series) upstream of the EOCR unit, these should be tested for correct phase loss and undervoltage trip thresholds as part of the same maintenance window. Coordinating the replacement of the EOCRSSD-05DF7 with a broader circuit audit — covering the socket base, contactor, control power supply, I/O module, terminal blocks, and upstream voltage relay — ensures the motor protection system is fully restored and validated in a single planned outage, minimizing future unplanned downtime.

Strategic Replacement Solutions: Extending Legacy System Life

Many industrial facilities continue to operate motor control centers and MCC panels that were commissioned 10–20 years ago. The EOCR-SSD series was widely deployed during this period, and the EOCRSSD-05DF7 remains one of the most frequently requested replacement units for these legacy installations. Rather than undertaking a full panel redesign — which carries significant engineering cost, revalidation effort, and production risk — replacing the failed or aging relay with an original EOCRSSD-05DF7 allows the existing panel to continue operating within its validated configuration.

The plug-in socket-mount design of the EOCR-SSD series means field replacement is straightforward: the failed relay is removed from the socket base without disturbing any wiring, the replacement unit is inserted and locked, and the current setting is verified against the motor nameplate FLA. Total replacement time in a well-maintained panel is typically under 15 minutes, making the EOCRSSD-05DF7 one of the most maintenance-friendly relay formats available for legacy motor protection circuits.

For facilities managing a fleet of motors across multiple production lines, holding a minimum stock of 2–3 units of the EOCRSSD-05DF7 is a recognized best practice. The relay’s long production history and continued OEM availability mean that stocking this unit carries minimal obsolescence risk, while the cost of a single unplanned motor outage typically exceeds the cost of maintaining a full spare inventory by an order of magnitude.

Support FAQ

Q1: What is the shelf life and storage recommendation for the EOCRSSD-05DF7?
When stored in original factory packaging in a dry, temperature-controlled environment (15°C–30°C, <70% RH), the EOCRSSD-05DF7 has an effective shelf life of 5+ years without performance degradation. All units shipped from TOPNLMS are in original sealed packaging and include a 12-month warranty from the date of shipment, regardless of storage duration prior to installation.

Q2: How do I verify compatibility with my existing EOCR socket base before ordering?
The EOCRSSD-05DF7 is designed for use with the EOCRSS-series plug-in socket base. Confirm the socket model number printed on your existing base. If the socket is worn or damaged, we recommend ordering a replacement socket base alongside the relay unit to ensure reliable contact performance after installation.

Q3: What pre-shipment testing is performed on each unit?
Every EOCRSSD-05DF7 unit undergoes a functional verification test prior to dispatch, confirming relay output contact operation, current sensing response, and control voltage acceptance. A test record is available upon request. Units are shipped in anti-static, shock-protected packaging to prevent transit damage.

Q4: Can this relay replace other EOCR-SSD variants with different current ratings?
The -05 suffix designates the 0.5 A current setting range. This unit is not interchangeable with higher-current EOCR-SSD variants (e.g., EOCRSSD-05DF7 vs. EOCRSSD-1DF7 or EOCRSSD-2DF7) without recalibration or panel revalidation. Always match the replacement relay to the original motor FLA and panel documentation. Contact our technical team at [email protected] if you need assistance selecting the correct current range.
