Schneider Electric A.F.038.5/01 Original Industrial Spare Altivar Compatible

Product Overview

Schneider Electric A.F.038.5/01 Original Industrial Spare – Altivar Series System Stability & Maintenance Value

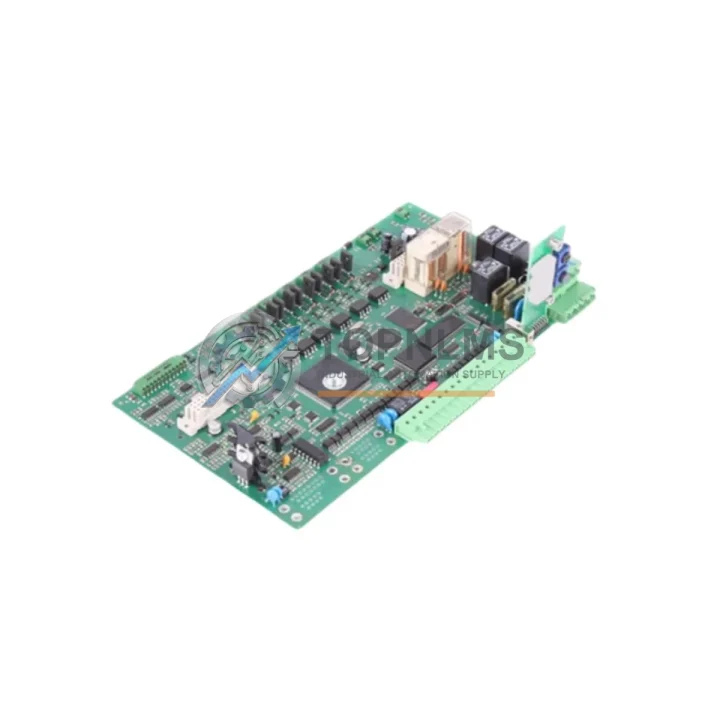

The Schneider Electric A.F.038.5/01 is an original control circuit board engineered for Altivar series variable frequency drives and associated Modicon automation architectures. In industrial environments where unplanned downtime translates directly into production loss, having a verified, tested spare of this board on hand is a foundational element of any responsible maintenance strategy. Whether you are managing a continuous process line, a packaging system, or a multi-axis motion control cabinet, the A.F.038.5/01 delivers the signal integrity and control reliability that Schneider Electric’s Altivar platform demands.

This board governs critical drive control functions including gate drive logic, feedback signal conditioning, and fault detection circuitry. Its failure in the field typically manifests as drive fault codes, erratic speed regulation, or complete drive shutdown — all scenarios that demand immediate corrective action. Sourcing an original replacement rather than a counterfeit or refurbished alternative ensures that the restored drive performs within its original specification envelope, preserving both process quality and personnel safety.

Critical Technical Specs

Preventive Maintenance Strategy

When a control circuit board such as the A.F.038.5/01 is flagged for replacement, experienced maintenance engineers treat the event as a trigger for a broader cabinet inspection rather than a single-component swap. The Altivar drive in which this board resides operates within an electrical ecosystem where adjacent components share thermal and electrical stress. A board failure is frequently a symptom of upstream or downstream degradation that, if left unaddressed, will shorten the life of the replacement part.

During the same maintenance window, technicians should inspect and consider stocking the Altivar ATV power board (the IGBT driver stage that works in tandem with the control board), the Altivar fan assembly and thermal management module (overtemperature is a leading cause of control board failure), and the 24 VDC SMPS power supply module that feeds logic voltage to the control circuitry. A degraded power supply delivering ripple or undervoltage will stress the replacement A.F.038.5/01 from day one.

At the cabinet level, the Modicon TM5 or TM3 I/O expansion modules connected to the drive’s digital and analog I/O terminals should be verified for signal integrity. Faulty I/O wiring or a failing I/O module can generate spurious fault signals that are misdiagnosed as control board failures. Similarly, the Altivar communication card (CANopen, Modbus, or Profibus variant depending on your network topology) should be seated and tested, as communication faults can cascade into drive trips that accelerate board wear.

For facilities running legacy Modicon Quantum or Premium PLC architectures in conjunction with Altivar drives, it is prudent to audit the Modicon analog output module providing the speed reference signal to the drive. A drifting analog output will cause erratic drive behavior that is often incorrectly attributed to the control board. The Schneider Electric relay output module handling run/stop and fault reset commands should also be tested under load to confirm contact integrity.

Finally, the terminal block assemblies and shielded signal cables connecting the PLC to the drive’s control terminals are frequently overlooked during board-level repairs. Corroded terminals or damaged cable shielding introduce noise that degrades control board performance. Replacing these low-cost consumables during the same maintenance event is a cost-effective way to maximize the service life of the A.F.038.5/01 and avoid repeat callouts. Stocking a Schneider Electric surge protection module for the drive’s input terminals is also recommended for facilities in regions with unstable grid power.

Strategic Replacement Solutions

The A.F.038.5/01 is a direct OEM replacement for the control circuit board in affected Altivar drive variants. Unlike third-party aftermarket boards that may require firmware re-flashing or parameter reconfiguration, the original Schneider Electric part slots into the existing drive chassis without modification, preserving all factory-programmed parameters stored in the drive’s non-volatile memory. This is a critical advantage in production environments where drive parameters represent months of commissioning work and process optimization.

For facilities managing aging Altivar ATV31 or ATV312 drives that are approaching end-of-support, stocking the A.F.038.5/01 as a strategic spare extends the operational life of the installed base by three to five years without requiring a full drive replacement. This approach defers capital expenditure while maintaining system compatibility with existing motor wiring, control panel layouts, and SCADA integration — a compelling value proposition for maintenance managers operating under tight budgets.

When a drive failure occurs mid-shift, the ability to swap a pre-tested A.F.038.5/01 from local stock and restore production within the same shift is measurably more valuable than the cost of the part itself. Our pre-shipment functional verification process ensures that every board dispatched from our facility has been powered up and tested against key operational parameters, eliminating the risk of receiving a DOA component during a critical repair event.

Support FAQ

Q1: Is the A.F.038.5/01 compatible with all Altivar drive variants?
The A.F.038.5/01 is designed for specific Altivar series variants. Please confirm your drive’s full model number and firmware version before ordering. Our technical team can assist with compatibility verification based on your drive’s nameplate data.

Q2: What is included in the 12-month warranty?
The warranty covers manufacturing defects and functional failure under normal operating conditions for 12 months from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling. Warranty claims are processed with return shipping coordination and replacement dispatch within 5 business days of fault confirmation.

Q3: How is the board tested before shipment?
Each A.F.038.5/01 undergoes a functional power-on test and visual inspection for component integrity, solder joint quality, and connector condition prior to packaging. A test record is maintained for traceability. Boards that do not pass inspection are not dispatched.

Q4: What is the recommended inventory strategy for this part?
For facilities operating more than two Altivar drives of the affected series, we recommend maintaining a minimum of one A.F.038.5/01 in local stock at all times. For critical process lines where drive downtime exceeds HKD 10,000 per hour in lost production, a two-unit buffer stock is advisable. Bulk procurement pricing is available for orders of three units or more — contact our sales team for a quotation.
