Schneider ACE949-2 Replacement Solution for Altivar

Product Overview

Schneider ACE949-2 Replacement Solution for Altivar: Seamless Transition from Legacy Drive Communication

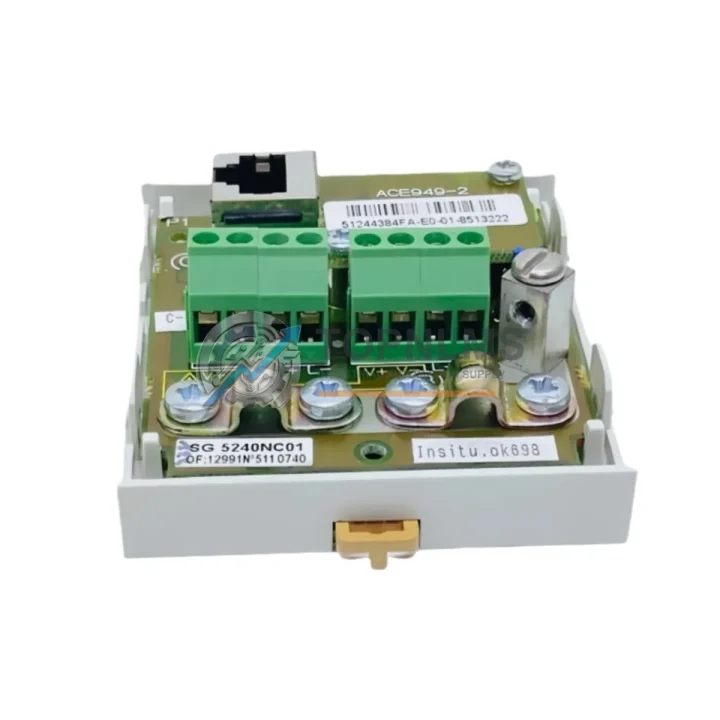

The Schneider Electric ACE949-2 is a dedicated Modbus RS485 serial communication card designed for the Altivar drive family, including the widely deployed ATV31 and ATV71 series. As industrial facilities face the challenge of maintaining aging variable frequency drive (VFD) infrastructure, the ACE949-2 remains a critical interface component enabling SCADA systems, PLCs, and HMI panels to communicate with Altivar drives over RS485 networks. Whether you are replacing a failed card, upgrading a legacy communication architecture, or migrating from an older Altivar ATV28 or ATV58 platform to the ATV31 or ATV71 generation, this module provides a direct, plug-in replacement path with minimal rewiring and zero firmware reconfiguration on the drive side.

In many brownfield automation projects, the ACE949-2 is installed alongside a Schneider Electric Modicon M340 or Premium PLC acting as the Modbus master. The drive receives speed references, direction commands, and fault reset signals over the RS485 bus, while the PLC reads back actual frequency, current draw, and fault codes. Replacing a defective ACE949-2 restores this communication loop without requiring any changes to the existing Modbus register map or PLC ladder logic — a significant advantage in time-sensitive maintenance scenarios where reprogramming is not an option.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful ACE949-2 replacement is rarely a standalone action — it is part of a broader drive communication restoration or system migration effort. When the ACE949-2 is installed in an ATV71 drive, the drive itself is typically mounted in a control cabinet alongside a Schneider Electric LUF MN motor protection relay or a TeSys D contactor managing the upstream power circuit. Ensuring the RS485 cable from the ACE949-2 is correctly terminated and routed away from power conductors is essential for signal integrity, particularly in cabinets where a Schneider Electric ATV312 or ATV320 series drive may also be present on the same Modbus segment.

For facilities migrating from a legacy Altivar ATV58 platform, the transition to ATV71 with an ACE949-2 communication card often requires updating the Modbus node address and verifying that the upstream Modicon M340 BMX P34 2020 CPU module’s serial port configuration matches the new baud rate. In multi-drive networks, a Schneider Electric VW3A8306 RS485 splitter or a dedicated Modbus repeater may be needed to extend the bus beyond the standard 32-node limit. The ACE949-2’s integrated termination resistor switch simplifies end-of-line configuration in these topologies.

Where the control architecture includes a Schneider Electric Magelis HMIGTO HMI panel communicating directly with the drive over RS485, the ACE949-2 enables the HMI to read real-time drive parameters — output frequency, motor current, DC bus voltage, and active fault codes — without requiring an intermediate PLC. This direct HMI-to-drive communication path is particularly valuable in standalone pump or fan control applications where a full PLC is not justified. In such installations, the ACE949-2 is often paired with a Schneider Electric XBTN400 or XBTGT HMI terminal already mounted on the cabinet door.

For applications where the ATV71 drives a high-inertia load such as a centrifuge or compressor, the ACE949-2 allows the Modbus master to monitor the drive’s thermal state and issue controlled deceleration commands before a thermal fault trip occurs. This predictive capability is a key argument for upgrading from a legacy drive with no communication card to an ATV71 equipped with the ACE949-2. The upgrade path also preserves the existing motor wiring, since the ATV71 accepts the same U/V/W output terminal configuration as the ATV58 it replaces.

Retrofit Guidance FAQ

Q: Can I install the ACE949-2 without powering down the ATV71 drive?
A: No. The ACE949-2 must be installed with the drive fully de-energized and the DC bus discharged. Wait at least 15 minutes after disconnecting mains power before accessing the option card slot. Failure to do so risks damage to the card and the drive’s internal bus.

Q: Will my existing Modbus register map work after replacing the ACE949-2?
A: Yes, provided the replacement card is the same ACE949-2 model. The Modbus register map for ATV31 and ATV71 drives is stored in the drive firmware, not the communication card. The card only provides the physical RS485 interface and protocol framing. No PLC program changes are required.

Q: What baud rate and parity settings should I use?
A: The ACE949-2 supports 4800, 9600, and 19200 bps with configurable parity (none, even, odd). Match the settings to your existing Modbus master configuration via drive parameters COM- (communication menu). The factory default is 19200 bps, 8N1.

Q: Can the ACE949-2 be used in an ATV312 or ATV320 drive?
A: No. The ACE949-2 is mechanically and electrically specific to the ATV31 and ATV71 option card slot. The ATV312 uses the VW3A3608 RS485 card, and the ATV320 uses the VW3A3616. Using an incompatible card will result in a communication fault and may damage the drive’s option slot.

Q: How do I verify the card is recognized by the drive after installation?
A: Power up the drive and navigate to the COM- menu. If the ACE949-2 is correctly seated, the drive will display the communication card type and allow configuration of Modbus parameters. A CNF fault on power-up typically indicates a seating issue — remove and reseat the card.

Q: Is the RS485 cable shielding important?
A: Yes. Use shielded twisted-pair (STP) cable, 120Ω characteristic impedance, with the shield grounded at one end only (typically the Modbus master end). In cabinets with multiple VFDs, route the RS485 cable in a separate conduit from power cables to minimize electromagnetic interference.

Warranty Assurance

Every ACE949-2 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes functional verification including communication port continuity, backplane connector inspection, and visual examination for physical damage. Units are shipped in anti-static packaging with protective foam inserts to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation verification, Modbus configuration troubleshooting, and compatibility confirmation before purchase. We maintain stock of ACE949-2 units and related Altivar communication accessories to support urgent maintenance requirements with same-day or next-day dispatch from our Xiamen warehouse.

For bulk procurement, OEM integrators, and MRO distributors, TOPNLMS offers volume pricing and consignment stock arrangements. All units are sourced through verified supply channels and are accompanied by documentation upon request. Contact our sales team to discuss your specific project requirements and lead time expectations.
