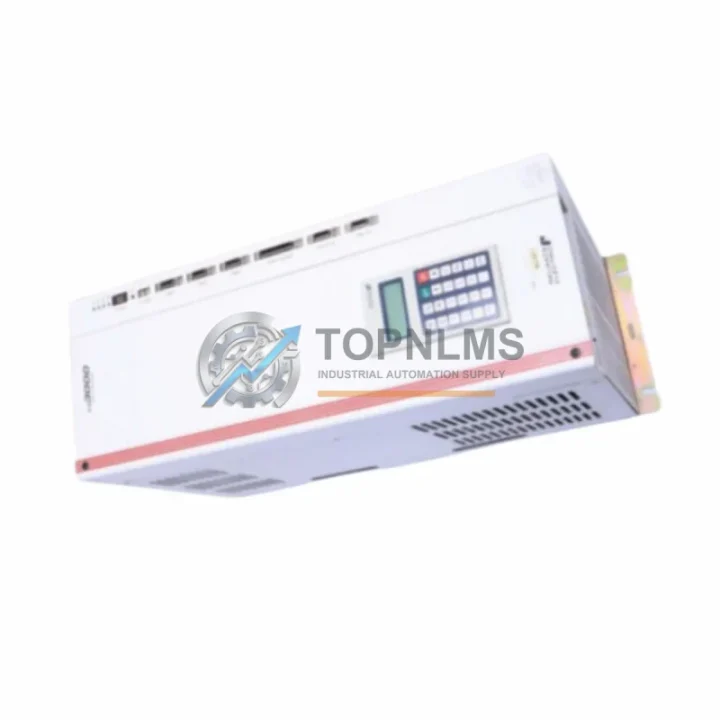

Reliance UVZC3202 EXIC2-2.2 Original Industrial Spare VZ3000 Compatible

Product Overview

Reliance UVZC3202 EXIC2-2.2 Original Industrial Spare VZ3000 Compatible: System Stability and Industrial Spare Maintenance Value

The Reliance UVZC3202 EXIC2-2.2 is an original servo drive module from Reliance Electric’s VZ3000 Series, engineered for demanding industrial automation environments. Whether you are managing a scheduled shutdown, responding to an unplanned line stoppage, or building a strategic spare parts inventory, this module delivers the electrical performance and compatibility your control system requires. Sourced directly from verified supply channels, each unit is inspected and tested before dispatch, backed by a 12-month warranty.

Critical Technical Specs

Preventive Maintenance Strategy

In any servo-driven production environment, the UVZC3202 EXIC2-2.2 sits at the heart of motion control reliability. When this module is flagged during a routine inspection or fails during operation, experienced maintenance engineers know that a single component failure rarely occurs in isolation. A thorough preventive maintenance plan for a VZ3000-based control cabinet should address the entire servo loop and power distribution chain.

During a planned shutdown or corrective maintenance event, it is best practice to simultaneously inspect the VZ3000 power supply module that feeds the drive bus — voltage ripple or capacitor degradation in the PSU is a common root cause of drive card faults. The servo motor encoder cable and feedback connector should be checked for insulation wear, especially in high-cycle applications such as packaging or press lines, where cable flex fatigue accelerates over time.

The EXIC2-2.2 exciter interface card communicates directly with the axis controller board; if the UVZC3202 is being replaced, the mating VZ3000 axis control card should be bench-tested in parallel to rule out upstream command signal issues. Technicians should also verify the condition of the DC bus capacitor bank within the drive chassis — bulging or leaking capacitors are a leading cause of recurring drive faults and should be treated as a co-replacement item.

At the cabinet level, inspect the 24 VDC control power supply that powers logic circuits and I/O interfaces. A marginal control PSU can cause intermittent drive enable faults that mimic servo card failures. Similarly, the I/O terminal block assemblies and signal isolation modules connected to the drive’s enable, fault, and speed reference inputs should be cleaned and torque-checked — loose terminals are a frequent source of nuisance trips in high-vibration environments.

For facilities running legacy Reliance Electric systems alongside newer PLCs, the communication gateway or protocol converter module bridging the VZ3000 to a modern Ethernet-based controller should be included in the inspection cycle. Firmware version mismatches between the gateway and the drive can cause parameter loss after a power cycle. Additionally, the line reactor or EMC filter on the drive input should be checked for thermal discoloration or winding resistance drift, as these components protect the drive from line transients and are often overlooked until a second drive failure occurs.

Rounding out a complete cabinet audit: verify the circuit breaker and fuse modules protecting the drive input, check the cooling fan and heat sink of the VZ3000 chassis for dust accumulation and bearing wear, and confirm that the motor thermal overload relay is correctly calibrated to the servo motor’s nameplate current. Stocking one spare of each of these associated components alongside the UVZC3202 EXIC2-2.2 is the most cost-effective way to minimize mean time to repair (MTTR) and protect production uptime.

Strategic Replacement Solutions

The Reliance VZ3000 Series has been in service across global manufacturing facilities for decades. As OEM support windows close and original spare parts become harder to source through standard distribution channels, the risk of extended downtime due to unavailable components increases significantly. The UVZC3202 EXIC2-2.2 is a direct original replacement that requires no parameter re-engineering, no firmware adaptation, and no mechanical modification — it installs into the existing VZ3000 chassis and restores full servo performance immediately.

For facilities managing end-of-life automation systems, stocking this module as a critical spare eliminates the lead time risk associated with emergency procurement. Unlike third-party remanufactured alternatives, an original Reliance UVZC3202 maintains the exact electrical characteristics and communication timing that the VZ3000 axis controller expects, preserving servo loop tuning parameters and preventing the need for costly recommissioning. This is particularly valuable in multi-axis systems where a single axis replacement that alters loop dynamics can affect the entire coordinated motion sequence.

For maintenance managers overseeing aging Reliance Electric installations, a proactive spare parts strategy — holding one or two UVZC3202 EXIC2-2.2 units in bonded stock — converts an unplanned emergency into a planned 30-minute swap, protecting production schedules and avoiding the premium costs of expedited freight and emergency sourcing.

Support FAQ

Q1: Is this an original Reliance Electric UVZC3202 EXIC2-2.2, or a remanufactured unit?
All units listed are original Reliance Electric components — either new surplus or professionally tested originals. Each unit undergoes functional verification before shipment. A 12-month warranty is included with every order.

Q2: How do I verify compatibility with my existing VZ3000 drive system before ordering?
The UVZC3202 EXIC2-2.2 is designed for the Reliance VZ3000 Series servo drive platform. Please confirm your existing drive chassis model and axis card revision. If you have the original drive documentation or nameplate data, our technical team at [email protected] can confirm compatibility before you commit to an order.

Q3: What is the typical lead time and how is the unit shipped?
In-stock units are dispatched within 1–3 business days. International orders are shipped via DHL, FedEx, or UPS with full tracking. Export documentation, including commercial invoice and packing list, is provided for customs clearance. Contact us for urgent or same-day dispatch requirements.

Q4: What does the 12-month warranty cover, and what is the returns process?
The 12-month warranty covers manufacturing defects and functional failure under normal operating conditions. If a unit fails within the warranty period, we will arrange a replacement or full refund after fault verification. Units must be returned in original packaging with the fault description documented. Contact [email protected] to initiate a warranty claim.
