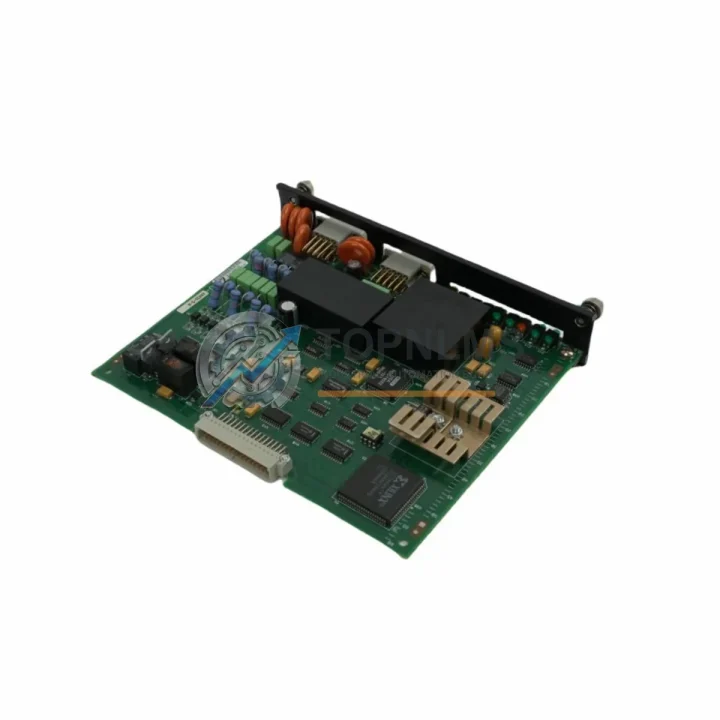

Reliance Electric 0-60031-5 Original Industrial Spare AutoMax PMI Compatible

Product Overview

Reliance Electric 0-60031-5 Original Industrial Spare AutoMax PMI Compatible: System Stability & Industrial Spare Parts Maintenance Value

The Reliance Electric 0-60031-5 is an original AutoMax PMI Series Resolver Drive Module engineered for precision motion control in demanding industrial automation environments. As a critical interface between the AutoMax programmable motion controller and PMI servo drives, this module handles resolver feedback signal processing, enabling accurate velocity and position control across multi-axis drive systems. For maintenance engineers managing aging AutoMax-based control architectures, securing a verified original 0-60031-5 spare is one of the highest-impact steps toward eliminating unplanned downtime and extending the operational life of existing infrastructure.

Industrial facilities running Reliance Electric AutoMax systems — including paper mills, steel processing lines, plastics extrusion plants, and material handling operations — depend on the resolver drive module to maintain closed-loop feedback integrity. When this module degrades or fails, the entire drive axis loses position reference, triggering faults that halt production. Having a tested, ready-to-install 0-60031-5 on the shelf converts a potential multi-day outage into a sub-hour swap.

Critical Technical Specs Table

Preventive Maintenance Strategy

A resolver drive module failure rarely occurs in isolation. In AutoMax PMI-based control cabinets, the 0-60031-5 operates as part of a tightly integrated motion control chain. During scheduled shutdowns or corrective maintenance events, experienced engineers treat the resolver module replacement as a trigger for a broader cabinet inspection — because the conditions that stress one module (vibration, heat cycling, power transients) affect neighboring components equally.

When replacing or inspecting the 0-60031-5, it is sound practice to simultaneously evaluate the AutoMax CPU module (the central controller coordinating all PMI axes) for firmware integrity and battery backup status. The PMI servo drive units themselves — the drive chassis that the resolver module feeds back into — should be checked for DC bus capacitor health and IGBT gate driver condition. Loose or degraded resolver feedback cables and shielded signal wiring between the motor resolver and the 0-60031-5 input terminals are a frequent root cause of intermittent faults that are misdiagnosed as module failure; inspect and re-terminate these connections during the same maintenance window.

The AutoMax backplane and rack assembly should be inspected for oxidized edge connector contacts — a common issue in older installations that causes intermittent communication faults between the resolver module and the CPU. While the cabinet is open, verify the condition of the 24VDC control power supply module that feeds the AutoMax rack; voltage sag or ripple on the control bus directly impacts resolver signal quality. If the system includes an AutoMax communications module (DH+ or Remote I/O), confirm its status indicators and cable termination resistors, as network faults can mask drive axis errors.

For multi-axis installations, it is advisable to maintain at least one spare PMI axis expansion module alongside the resolver drive module. Systems with analog I/O integration should also verify the calibration of any analog input/output modules in the rack, since resolver-derived velocity references may feed into analog signal chains. Terminal blocks and DIN rail wiring within the servo drive panel deserve attention — loose terminations on resolver signal circuits introduce noise that degrades position accuracy long before causing hard faults. Finally, if the facility uses Reliance Electric GV3000 or GP2000 series drives in adjacent panels, include those in the inspection round, as they share maintenance intervals and spare part logistics with AutoMax PMI systems.

Proactive spare parts planning for AutoMax PMI systems should account for the full module ecosystem: resolver drive modules, CPU modules, power supply modules, communications modules, and I/O expansion modules. Stocking these as a coordinated spare kit — rather than reacting to individual failures — dramatically reduces mean time to repair and protects production continuity in facilities where AutoMax systems are no longer supported by the OEM’s standard service network.

Strategic Replacement Solutions

The Reliance Electric AutoMax platform has reached end-of-life status with the OEM, meaning new production of 0-60031-5 modules has ceased. For facilities committed to maintaining existing AutoMax infrastructure — rather than undertaking a full control system migration — sourcing verified original spare modules from specialist industrial parts suppliers is the most cost-effective and lowest-risk strategy.

A genuine 0-60031-5 from TOPNLMS installs directly into the existing AutoMax rack without any firmware changes, parameter re-entry, or drive re-commissioning. This plug-and-play compatibility is the defining advantage over third-party alternatives or system migration projects, which typically require weeks of engineering time, new drive commissioning, and operator retraining. For production lines where the AutoMax system controls critical process axes — winders, extruders, rolling mills, or precision positioning stages — the cost of a migration project far exceeds the cost of maintaining a strategic spare inventory of original modules.

The 0-60031-5 also serves as a direct replacement for earlier AutoMax PMI resolver module variants used in the same rack form factor. Maintenance teams managing mixed-vintage AutoMax installations can standardize on this module across multiple axes, simplifying spare parts inventory and reducing the risk of stocking obsolete variants. When combined with a documented module swap procedure and a pre-tested spare, the mean time to repair for a resolver drive fault can be reduced from hours to under 30 minutes — a measurable improvement in overall equipment effectiveness (OEE) for any facility tracking production uptime metrics.

Support FAQ

Q1: Is the 0-60031-5 a genuine original Reliance Electric module or a third-party replacement?
All 0-60031-5 units supplied by TOPNLMS are original Reliance Electric components sourced from verified industrial supply channels. Each unit undergoes functional testing prior to shipment to confirm resolver signal processing integrity. A 12-month quality warranty is included with every order.

Q2: How do I verify compatibility with my AutoMax system before installation?
The 0-60031-5 is designed for the Reliance Electric AutoMax Programmable Motion Controller rack, specifically for PMI Series servo drive axes using resolver feedback. Confirm your AutoMax rack model and PMI drive series against your system documentation. If you require compatibility verification support, contact our technical team at [email protected] with your system configuration details.

Q3: What is the recommended spare inventory strategy for AutoMax PMI systems?
For facilities with 2–4 AutoMax PMI axes, maintaining one 0-60031-5 resolver drive module spare per system is the standard recommendation. Facilities with 5 or more axes, or those operating in high-cycle or harsh environments, should consider a two-unit spare buffer. Pairing the resolver module spare with a CPU module spare and a power supply module spare provides comprehensive coverage for the most common AutoMax failure modes.

Q4: What does the 12-month warranty cover, and what is the shipping timeline?
The 12-month warranty covers manufacturing defects and functional failures under normal industrial operating conditions. Units are shipped within 1–3 business days of order confirmation, with international express options available. All units are inspected, tested, and securely packaged for safe transit to your facility.
