Reliance Electric UVZC3407G FlexPak 3000 Original Spare

Product Overview

Reliance Electric UVZC3407G FlexPak 3000 Original Spare: System Stability & Industrial Maintenance Value

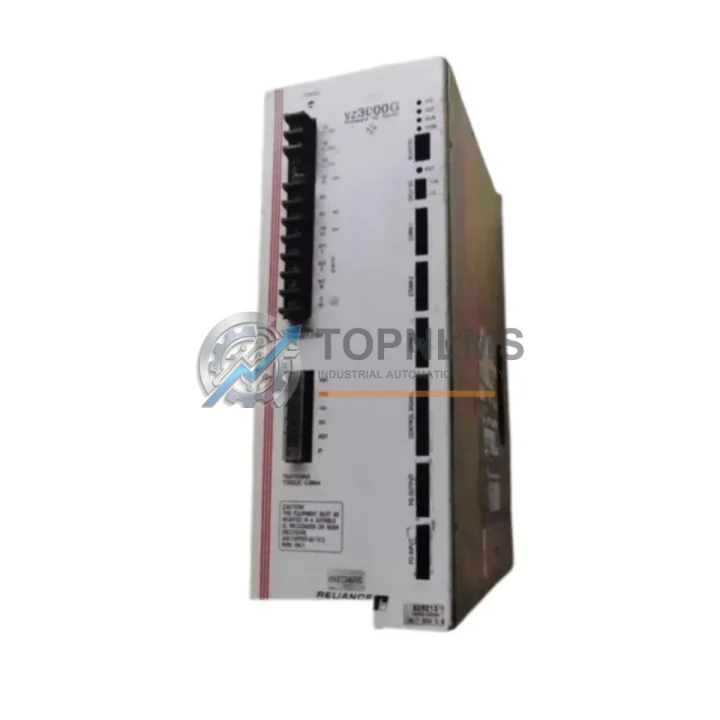

The Reliance Electric UVZC3407G is a chassis-mount AC variable frequency drive (VFD) belonging to the renowned FlexPak 3000 series — a platform that has anchored DC-to-AC drive modernization projects and continuous-process control systems across pulp & paper, metals, plastics extrusion, and material handling industries for decades. Sourcing an original, tested UVZC3407G spare is one of the highest-leverage decisions a maintenance engineer or reliability manager can make to protect system uptime and extend the operational life of legacy drive cabinets.

At TOPNLMS, every UVZC3407G unit is inspected, function-tested, and shipped with a 12-month warranty, giving procurement teams and plant engineers the confidence to stock this critical spare without reservation.

Critical Technical Specs

Preventive Maintenance Strategy for FlexPak 3000 Drive Systems

A VFD failure in a continuous-process line rarely occurs in isolation. When a UVZC3407G chassis drive is flagged for replacement during a scheduled shutdown or emergency repair, experienced maintenance teams treat the event as a trigger for a broader cabinet inspection — because adjacent components in the same electrical loop are subject to identical thermal cycling, voltage stress, and vibration loads.

During a FlexPak 3000 drive replacement, it is standard practice to simultaneously inspect and, where appropriate, pre-stock the FlexPak 3000 regulator board (the control card that governs speed reference and feedback processing), as well as the gate driver / firing board responsible for IGBT or SCR switching signals. These boards are the most common secondary failure points after a main chassis event. If the drive has been running in a high-ambient or poorly ventilated cabinet, the internal cooling fan assembly should be replaced as a matter of course — fan bearing failure is a leading cause of thermal shutdown and premature drive damage.

On the power-input side, verify the condition of the line reactor or input choke upstream of the drive. Line reactors protect the UVZC3407G from voltage spikes and harmonic distortion; a degraded reactor can shorten drive life significantly. Similarly, inspect the dynamic braking resistor module if the application involves frequent deceleration or overhauling loads — a failed braking resistor can cause DC bus overvoltage faults that are often misdiagnosed as drive failures.

At the I/O interface level, check the analog signal isolator modules and terminal block assemblies connected to the drive’s speed reference and feedback circuits. Corroded or loose terminals on these blocks are a frequent source of intermittent speed instability that is difficult to diagnose without a systematic inspection. If the FlexPak 3000 communicates over a fieldbus network, inspect the serial communication adapter card (DeviceNet, Profibus, or RS-485 depending on system configuration) for firmware version compatibility and physical connector integrity.

For facilities running multiple FlexPak 3000 drives on the same production line, a coordinated spare-parts inventory strategy — holding at least one tested UVZC3407G chassis unit alongside a regulator board, a gate driver board, and a cooling fan kit — can reduce mean time to repair (MTTR) from days to hours. This is particularly valuable in industries where a single drive-related stoppage can cost tens of thousands of dollars per hour in lost production.

Finally, if the plant’s control architecture includes a Rockwell Automation / Allen-Bradley PLC (such as a SLC 500, PLC-5, or ControlLogix system) interfacing with the FlexPak 3000 via analog or serial links, ensure that the PLC’s analog output module and communication module are also included in the periodic inspection checklist. A degraded PLC output card sending a noisy speed reference signal can cause erratic drive behavior that is incorrectly attributed to the drive itself.

Strategic Replacement Solutions

The UVZC3407G is a direct chassis-level replacement for failed or end-of-life FlexPak 3000 drive units. Because Reliance Electric’s FlexPak 3000 platform was designed with modular architecture, a chassis swap does not require rewiring the entire control cabinet — the regulator board, operator interface, and field wiring connections remain in place, dramatically reducing installation time and the risk of wiring errors during a high-pressure emergency repair.

For plants managing the transition from legacy Reliance Electric infrastructure toward modern Rockwell Automation platforms, stocking original UVZC3407G units provides a cost-effective bridge strategy: the existing drive cabinet, motor, and process control logic remain fully operational while capital planning for a full system upgrade proceeds on a managed timeline. This approach eliminates the forced-upgrade scenario — where an unplanned drive failure compels an expensive, rushed system replacement — and gives engineering teams the time to properly specify, procure, and commission next-generation equipment.

All UVZC3407G units supplied by TOPNLMS are sourced from verified industrial channels, inspected for physical and electrical integrity, and function-tested prior to shipment. Units are packaged with anti-static protection and shipped with full documentation support. Expedited shipping is available for emergency maintenance situations.

Support FAQ

Q1: What is the warranty coverage for the UVZC3407G?
Every UVZC3407G supplied by TOPNLMS carries a 12-month warranty from the date of shipment. Each unit is function-tested before dispatch. In the event of a warranty claim, our technical team will coordinate replacement or repair with minimal lead time to protect your production schedule.

Q2: How do I verify compatibility with my existing FlexPak 3000 cabinet?
The UVZC3407G is a chassis-mount unit designed for the FlexPak 3000 drive family. Compatibility is confirmed by matching the drive’s horsepower rating, input voltage, and control board configuration to your existing cabinet specifications. If you can provide your existing drive’s full nameplate data or cabinet model number, our technical team can confirm compatibility before you place an order.

Q3: What pre-shipment testing is performed on each unit?
Each unit undergoes visual inspection for physical damage, DC bus capacitor integrity check, power-on functional test, and output voltage verification across all three phases. Test results are logged and available upon request. Units that do not pass all test criteria are not shipped.

Q4: Can I stock this part as a long-term inventory spare for an aging FlexPak 3000 system?
Yes — and it is strongly recommended for facilities running FlexPak 3000 drives in critical process applications. As the FlexPak 3000 platform approaches end-of-manufacturer-support, availability of original chassis units will decrease and lead times will extend. Procuring and storing a tested UVZC3407G now, in a climate-controlled environment with proper anti-static packaging, is a proven strategy for managing long-term spare parts risk and avoiding forced system upgrades driven by parts unavailability.
