PHOENIX Contact TRIO-DIODE/48DC/2X10/1X20 Replacement Solution

Product Overview

PHOENIX Contact TRIO-DIODE/48DC/2X10/1X20 Replacement Solution: Smooth Transition & Legacy System Compatibility

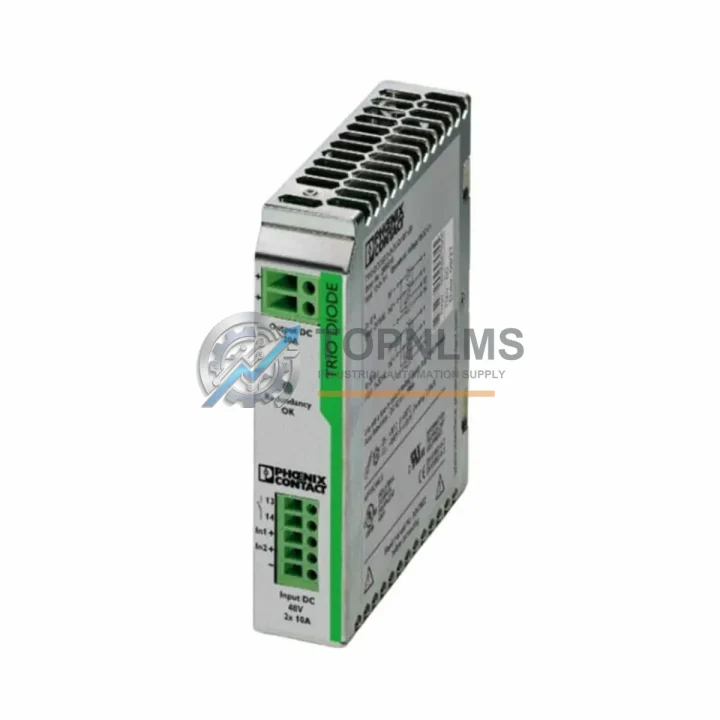

The PHOENIX Contact TRIO-DIODE/48DC/2X10/1X20 is a 48 VDC redundancy decoupling module from the TRIO Power series, designed to enable parallel operation of two power supply units with a combined output of up to 20 A. As industrial facilities increasingly face the challenge of maintaining uptime while retiring aging 24 VDC and 48 VDC power architectures, this module serves as a critical bridge component — allowing engineers to introduce a second power rail without rewiring the entire control cabinet.

When upgrading from legacy redundancy configurations built around older TRIO-PS or QUINT-PS power supply units, the TRIO-DIODE/48DC/2X10/1X20 slots directly into existing DIN-rail arrangements. Its compact 22.5 mm housing width ensures compatibility with densely populated control cabinets where space is at a premium. Engineers migrating from discontinued MINI-SYS-PS or STEP-PS series power supplies will find that the TRIO-DIODE module requires no additional mounting adapters, significantly reducing retrofit labor time and minimizing planned maintenance windows.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete 48 VDC redundant power migration typically involves more than a single module swap. During the retrofit process, engineers commonly pair the TRIO-DIODE/48DC/2X10/1X20 with two TRIO-PS/1AC/48DC/10 power supply units — one acting as the primary feed and the other as the standby — to form a fully redundant N+1 architecture. The decoupling module prevents reverse current flow between the two supplies, eliminating the risk of one unit backfeeding the other during a fault condition.

For cabinet-level integration, CLIPLINE complete terminal blocks and PT 4-PE/L-BE potential distribution terminals are frequently used alongside the TRIO-DIODE to organize the 48 VDC bus and maintain clean separation between redundant feeds. Where the existing installation uses older SACB sensor/actuator connection boxes or legacy I/O marshalling panels, the addition of the TRIO-DIODE module allows the power architecture to be modernized without disturbing field wiring.

In systems where a PHOENIX Contact AXL F BK ETH or Axioline F local bus coupler is already installed, the TRIO-DIODE/48DC/2X10/1X20 integrates seamlessly into the same backplane power distribution scheme. Engineers upgrading PROFINET or EtherNet/IP-based I/O stations will find that the module’s signaling contact can be wired directly to a digital input on an IB IL 24 DI 16 or AXL F DI16/1 input module, enabling the PLC program to monitor power supply health without additional hardware.

For facilities transitioning from older Siemens SITOP PSU100S or ABB CP-E series power supplies to a PHOENIX Contact TRIO Power platform, the TRIO-DIODE/48DC/2X10/1X20 provides a vendor-neutral decoupling solution that works with any 48 VDC source meeting the input specification. This makes it particularly valuable in mixed-vendor control cabinets where standardization is being phased in gradually.

Where UPS backup is required, the module is commonly deployed alongside a QUINT4-UPS/24DC/24DC/40 or a UPS-IQ series battery buffer to ensure that the 48 VDC bus remains energized during mains interruptions. The combination of redundant primary supplies and a UPS buffer, all decoupled through the TRIO-DIODE, represents current best practice for high-availability industrial power design.

Retrofit Guidance FAQ

Q: Can I reuse existing wiring when replacing a legacy redundancy module with the TRIO-DIODE/48DC/2X10/1X20?
A: In most cases, yes. The module accepts standard 0.2–6 mm² conductors on its input and output terminals. If the legacy module used the same conductor cross-section, no rewiring is required — only terminal re-termination.

Q: Does the TRIO-DIODE require any PLC program changes?
A: No program changes are required for basic redundancy operation. If you wish to monitor the fault signaling contact via a digital input, a single rung or function block addition to your existing program is sufficient. This is compatible with all major PLC platforms including Siemens S7-300/400/1200/1500, Allen-Bradley ControlLogix/CompactLogix, and Schneider Electric Modicon M340/M580.

Q: Is the module compatible with both PROFIBUS and PROFINET architectures?
A: The TRIO-DIODE/48DC/2X10/1X20 is a passive power component and is communication-protocol agnostic. It operates identically regardless of whether the control system uses PROFIBUS DP, PROFINET, EtherNet/IP, Modbus TCP, or any other fieldbus standard.

Q: How much physical space does the module require in the control cabinet?
A: The module occupies 22.5 mm of DIN-rail width. In a standard 400 mm wide cabinet section, this allows multiple modules to be installed side by side without requiring cabinet expansion or new DIN-rail sections.

Q: What happens if one of the two input power supplies fails?
A: The diode-based design ensures automatic, instantaneous switchover to the remaining supply with no interruption to the output bus. The fault signaling contact changes state to alert the control system, enabling predictive maintenance without process downtime.

Q: Can this module replace a discontinued PHOENIX Contact redundancy module from an earlier TRIO generation?
A: Yes. The TRIO-DIODE/48DC/2X10/1X20 is the current production replacement for earlier 48 VDC TRIO series decoupling modules. Mounting footprint, terminal layout, and electrical ratings are backward-compatible with previous TRIO Power generation installations.

Warranty Assurance

Every TRIO-DIODE/48DC/2X10/1X20 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes functional verification including input/output voltage checks, diode forward-voltage testing, and signaling contact continuity confirmation. Units that do not meet PHOENIX Contact published specifications are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Customers requiring expedited replacement for critical production environments are encouraged to contact us directly to arrange advance replacement shipment.

Stock is maintained in Xiamen, China, with standard dispatch within 1–3 business days. Express international shipping via DHL, FedEx, or UPS is available for urgent procurement requirements. All units are shipped with original manufacturer packaging and documentation where available.

For procurement inquiries, technical compatibility questions, or bulk order pricing, please contact our industrial automation team directly.
