Phoenix Contact TRIO-DIODE/12-24DC/2X10/1X20 Original Industrial Spare TRIO-DIODE Compatible

Product Overview

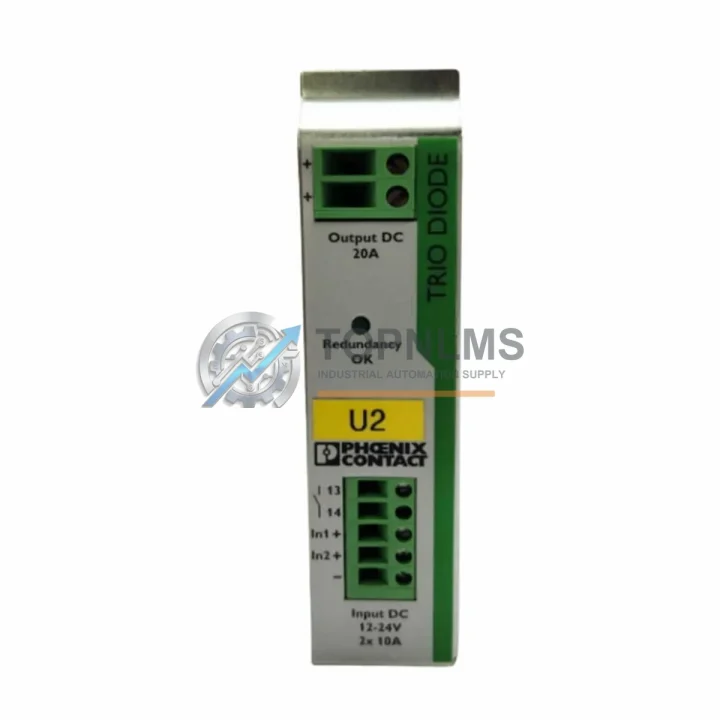

Phoenix Contact TRIO-DIODE/12-24DC/2X10/1X20 2866514: Redundancy Diode Module for Industrial System Stability

In modern industrial automation environments, power supply redundancy is not optional — it is a fundamental requirement for maintaining continuous production and protecting critical control infrastructure. The Phoenix Contact TRIO-DIODE/12-24DC/2X10/1X20 (Part No. 2866514) is an original, factory-sourced redundancy diode module engineered for 12–24 VDC power distribution systems. It enables two independent power supply units to feed a single load rail without reverse current flow, ensuring that a failure in one PSU does not interrupt the downstream control system.

This module is a cornerstone component in PLC control cabinets, DCS marshalling panels, and distributed I/O enclosures where uptime is measured in production hours and unplanned downtime carries significant financial consequences. Whether you are maintaining a legacy Phoenix Contact TRIO-POWER system or designing a new redundant power architecture, the TRIO-DIODE/12-24DC/2X10/1X20 delivers the electrical isolation and load-sharing performance required by industrial-grade installations.

Critical Technical Specs

Preventive Maintenance Strategy

When a TRIO-DIODE/12-24DC/2X10/1X20 is flagged for replacement during a scheduled cabinet inspection or after a PSU fault event, experienced maintenance engineers treat the intervention as an opportunity to audit the entire power distribution chain. A redundancy diode module failure rarely occurs in isolation — it is often preceded or accompanied by stress on adjacent components that share the same 24 VDC bus.

During the same maintenance window, technicians should verify the output voltage and load capacity of both upstream TRIO-POWER 24VDC power supply modules (such as the TRIO-PS/1AC/24DC/10 or TRIO-PS/1AC/24DC/5) feeding the diode inputs. Degraded PSU output — even within nominal tolerance — can cause asymmetric loading across the two diode channels, accelerating thermal wear. If either PSU shows signs of output ripple or reduced headroom, proactive replacement alongside the diode module eliminates a second maintenance call within weeks.

Downstream of the TRIO-DIODE, the 24 VDC bus typically feeds Phoenix Contact Axioline F or Inline I/O modules, IB IL 24 DI 8 digital input modules, and IB IL 24 DO 8 digital output modules. These modules should be inspected for proper terminal torque, connector seating, and status LED behavior during the same visit. A loose terminal on an I/O module can introduce intermittent faults that are misdiagnosed as PLC logic errors rather than power quality issues.

The control cabinet’s 24 VDC terminal blocks and busbar connectors — particularly Phoenix Contact PTFIX or UK series terminal strips — should be checked for oxidation, especially in humid or coastal industrial environments. Corroded terminals increase contact resistance, which manifests as voltage drop under load and can trigger false low-voltage alarms on connected PLCs or safety relays.

If the cabinet includes a Phoenix Contact QUINT-CHECK or MINI-SYS-PS signal conditioning module for power monitoring, verify that its alarm thresholds are correctly configured for the post-diode bus voltage. After replacing the TRIO-DIODE, the monitored voltage may shift slightly due to the forward voltage drop characteristics of the new module, and threshold recalibration ensures alarm integrity.

For cabinets integrating PROFIBUS DP or PROFINET communication modules (such as the Phoenix Contact FL SWITCH or RAD-ISM radio modules), confirm that the communication bus power draw is within the diode module’s output budget. Communication modules with integrated 24 VDC power inputs are sensitive to supply interruptions, and a properly rated TRIO-DIODE ensures seamless bus operation during PSU switchover events.

Finally, inspect the cabinet’s miniature circuit breakers (MCBs) and fuse terminal blocks — such as Phoenix Contact PTFIX fuse holders or UT 4-HESI fuse disconnect terminals — that protect individual 24 VDC branch circuits. Blown or degraded fuses upstream of the diode module are a common root cause of apparent diode failures and should be replaced as part of the same corrective action.

Strategic Replacement Solutions

The TRIO-DIODE/12-24DC/2X10/1X20 (2866514) is a direct, original-specification replacement for aging redundancy diode modules in TRIO-POWER-based control architectures. Unlike generic diode assemblies, this module is designed to the exact forward voltage drop and thermal dissipation profile of the TRIO-POWER series, ensuring that the combined output voltage remains within the 24 VDC ±1% tolerance required by most PLC and DCS input cards.

For facilities operating older Phoenix Contact TRIO-DIODE variants with different current ratings, the 2×10A/1×20A configuration of this module provides a capacity upgrade path without requiring changes to DIN rail layout or cable routing. The module’s compact footprint and standard TS 35 mounting mean it can be swapped in during a planned shutdown window — typically under 30 minutes for a trained technician — minimizing production impact.

In systems where the original TRIO-DIODE has been discontinued or is approaching end-of-life, stocking this module as a critical spare eliminates the lead-time risk associated with emergency procurement. Industrial facilities with multiple control cabinets sharing the same TRIO-POWER architecture benefit from standardizing on a single diode module SKU, simplifying spare parts inventory and reducing the cognitive load on maintenance teams during fault response.

For OEMs and system integrators building new panels, the TRIO-DIODE/12-24DC/2X10/1X20 is the recommended choice for any 24 VDC redundant power architecture where the combined load does not exceed 20 A. Its compatibility with the full TRIO-POWER and QUINT-POWER product families makes it a versatile, future-proof selection that supports long-term system maintainability.

Support FAQ

Q1: Is this an original Phoenix Contact TRIO-DIODE/12-24DC/2X10/1X20 (2866514), or an aftermarket substitute?
This is an original Phoenix Contact module sourced from authorized supply channels. Each unit carries the Phoenix Contact part number 2866514 and is manufactured to OEM specifications. No aftermarket or compatible substitutes are supplied under this listing.

Q2: What pre-shipment testing is performed, and what does the 12-month warranty cover?
Every TRIO-DIODE/12-24DC/2X10/1X20 unit is functionally tested for input/output voltage compliance, diode isolation integrity, and thermal performance before dispatch. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units damaged by incorrect installation, overvoltage, or environmental exposure beyond rated limits are excluded.

Q3: How do I verify compatibility with my existing TRIO-POWER installation before ordering?
Confirm that your existing PSUs operate in the 12–24 VDC range and that each PSU’s rated output current does not exceed 10 A per input channel. The combined load on the output bus must not exceed 20 A continuous. The module mounts on standard 35 mm DIN rail and requires no additional accessories for installation in a TRIO-POWER cabinet.

Q4: What is the recommended spare parts stocking strategy for this module?
For facilities with 3 or more control cabinets using TRIO-POWER redundant architectures, we recommend maintaining a minimum of 1–2 TRIO-DIODE/12-24DC/2X10/1X20 units in local stock. Given typical MTBF data for diode modules in 24/7 industrial environments, a 12–24 month replenishment cycle is appropriate. Pairing this with stocked TRIO-POWER PSU spares ensures full redundancy restoration capability without dependency on external lead times.
