Phoenix Contact QUINT-UPS/24DC/24DC/40 Ruggedized UPS Module: Industrial Resilience for Harsh Environments

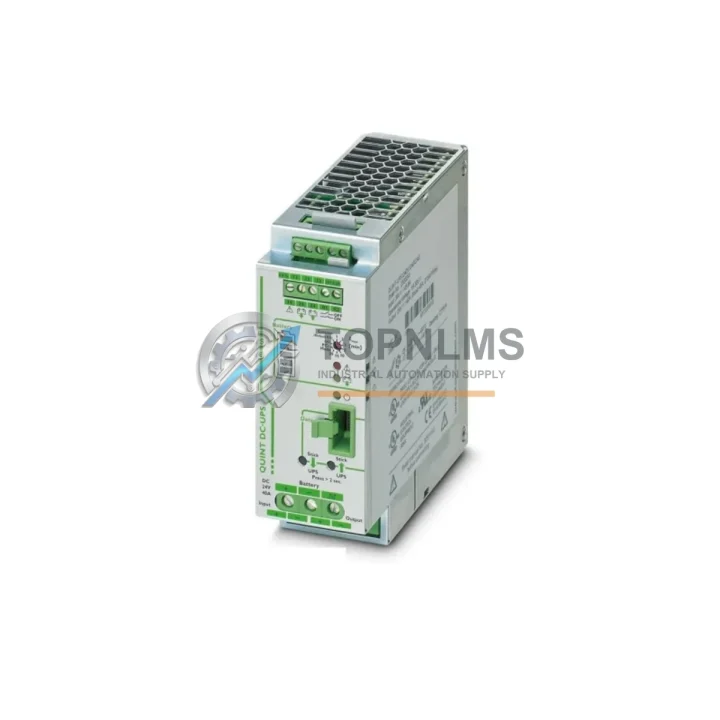

The Phoenix Contact QUINT-UPS/24DC/24DC/40 (Part No. 2320241) is a high-performance, DIN-rail-mounted industrial uninterruptible power supply module engineered for continuous, mission-critical operation in the most demanding industrial environments. Rated at 24 VDC input/output with a 40 A continuous load capacity, this QUINT Series UPS module delivers seamless bridging power to protect connected automation systems against mains failures, voltage dips, and transient disturbances — without interruption, without compromise.

Designed and manufactured in Germany to Phoenix Contact’s exacting industrial standards, the QUINT-UPS/24DC/24DC/40 is built to sustain reliable operation across environments characterized by high ambient temperatures, humidity fluctuations, mechanical vibration, airborne particulates, and intense electromagnetic interference (EMI). Whether deployed in a sealed control cabinet on a petrochemical platform, a dusty mining conveyor panel, or a high-vibration press line in a steel mill, this module maintains stable 24 VDC output to downstream loads — protecting your PLC racks, I/O modules, field instruments, and safety systems from costly unplanned shutdowns.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial automation architectures, uninterrupted power is the backbone of system integrity. The QUINT-UPS/24DC/24DC/40 is most effective when integrated as part of a layered power and control strategy. It is commonly paired with the Phoenix Contact QUINT-PS/1AC/24DC/40 primary power supply, which feeds regulated 24 VDC into the UPS module’s input — together forming a robust, redundant power chain for the entire control cabinet.

Downstream of the UPS, the stable 24 VDC output sustains critical loads including Axioline F I/O modules (such as the AXL F DI8/1 DO8/1 1H digital I/O slice), AXC F 2152 PLCs, and RFC 470 PN 3TX PROFINET controllers — ensuring that field data acquisition and control logic continue uninterrupted during mains disturbances. In safety-instrumented systems, the module also powers PSR-SCP safety relays and PSR-TRISAFE safety modules, which must remain energized to maintain SIL-rated protective functions during a power event.

For communication-intensive panels, the QUINT-UPS/24DC/24DC/40 sustains FL SWITCH SMCS 8TX managed Ethernet switches and RAD-ISM-900-EN-BD wireless I/O modules, preventing network dropouts that could trigger false alarms or loss of remote visibility. Terminal-level power distribution is handled through PT 4-PE/L/N terminal blocks and PTFIX distribution blocks, all of which benefit from the clean, buffered output this UPS provides.

When battery capacity needs to be extended for longer bridging times — such as in remote substations or offshore platforms — the module interfaces directly with QUINT-BAT/24DC/12AH external battery modules, scaling backup runtime without requiring additional control logic or wiring complexity.

Application in Critical Infrastructure

The QUINT-UPS/24DC/24DC/40 is a proven solution across the most demanding sectors of critical infrastructure:

Oil & Gas: On offshore platforms and onshore processing facilities, power quality is non-negotiable. This UPS module protects PLC-based emergency shutdown (ESD) panels and fire & gas (F&G) detection systems from the voltage transients caused by large motor starts and generator switching — environments where a momentary power interruption can trigger a full plant trip.

Mining & Minerals: Underground and surface mining operations subject control panels to continuous mechanical vibration, coal dust ingress, and wide temperature swings. Installed in sealed enclosures, the QUINT-UPS/24DC/24DC/40 sustains conveyor drive control systems, ventilation fan PLCs, and proximity safety sensors through power fluctuations common to diesel generator-fed microgrids.

Power Generation & Utilities: In hydroelectric, thermal, and wind power plants, the module provides ride-through capability for SCADA RTUs, protection relay panels, and substation automation controllers during grid switching events — maintaining continuous data logging and alarm management without interruption.

Water & Wastewater Treatment: Pump station control panels operating in high-humidity, chemically aggressive environments rely on this UPS to keep dosing pump PLCs, flow meter transmitters, and PROFIBUS DP communication networks alive during utility power interruptions — preventing overflow events and regulatory compliance failures.

Metallurgy & Heavy Industry: Steel mills, aluminum smelters, and foundries generate extreme EMI from arc furnaces and induction heaters. The QUINT-UPS/24DC/24DC/40’s robust EMC design and buffered output protect sensitive automation electronics from the conducted and radiated interference that would otherwise corrupt process data or cause spurious PLC faults.
