Phoenix Contact QUINT-PS/1AC/24DC/20 Ruggedized DIN Rail Power Supply

Product Overview

Phoenix Contact QUINT-PS/1AC/24DC/20 Ruggedized DIN Rail Power Supply for Harsh Industrial Environments

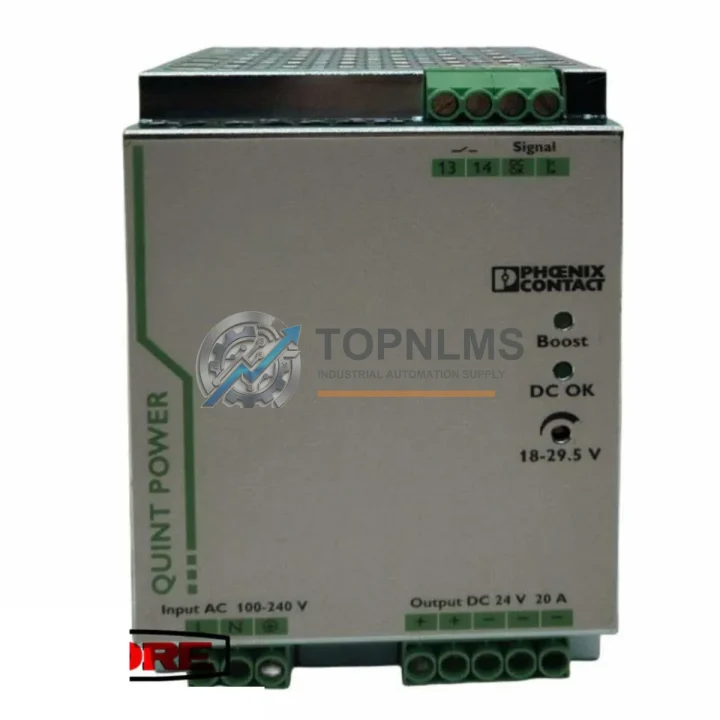

The Phoenix Contact QUINT-PS/1AC/24DC/20 is a premium-grade, single-phase DIN rail power supply engineered for continuous, uninterrupted operation in the most demanding industrial environments. Delivering a stable 24 VDC output at 20 A (480 W), this QUINT Series unit is purpose-built to sustain mission-critical control systems where power quality, thermal resilience, and electromagnetic immunity are non-negotiable. Whether deployed in a high-temperature foundry, a dust-laden mining gallery, a vibration-intensive offshore platform, or a chemically aggressive water treatment facility, the QUINT-PS/1AC/24DC/20 maintains regulated output without derating, protecting every downstream device in the control cabinet.

Phoenix Contact’s QUINT power supply line is globally recognized for its SFB (Selective Fuse Breaking) technology, which delivers up to 200% of rated current for 12 ms to selectively blow branch-circuit fuses without tripping the main supply — a critical capability in multi-branch 24 VDC distribution architectures common in PLC and DCS control panels. This means that a short-circuit event on one I/O branch does not cascade into a full system shutdown, preserving uptime on continuous production lines in petrochemical, metallurgical, and power generation plants.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated control cabinet, the QUINT-PS/1AC/24DC/20 serves as the backbone power source for a wide array of automation components. It directly energizes Siemens S7-1500 CPU modules and their associated ET 200SP distributed I/O stations, ensuring that digital input/output modules receive clean, regulated 24 VDC even during input voltage fluctuations. When paired with Phoenix Contact QUINT-BUFFER/24DC/40 capacitor modules, the system gains ride-through capability during brief mains interruptions — a vital feature for continuous process lines where even a 20 ms power gap can trigger an emergency stop sequence.

The power supply works in concert with Phoenix Contact TRIO-PS redundancy modules to enable N+1 redundant power architectures, where a second QUINT unit takes over seamlessly if the primary fails. This configuration is standard practice in safety-instrumented systems (SIS) and SIL 2/3-rated control loops. Downstream, Phoenix Contact CLIPLINE terminal blocks and PTFIX distribution blocks distribute the 24 VDC rail cleanly across multiple branch circuits, each protected by Phoenix Contact MINI-MCB miniature circuit breakers that benefit directly from the SFB current boost to achieve selective tripping.

For communication-intensive panels, the QUINT-PS/1AC/24DC/20 reliably powers PROFINET-capable managed switches such as the Phoenix Contact FL SWITCH series, as well as PROFIBUS DP repeaters and RS-485 communication modules. In safety-critical zones, it supplies Phoenix Contact PSR safety relays and Pilz PNOZ safety modules without voltage ripple that could cause nuisance trips. Variable frequency drives (VFDs) with 24 VDC control circuits — including Siemens SINAMICS G120 and ABB ACS880 control boards — also benefit from the QUINT’s stable output, preventing erratic drive behavior caused by control-voltage sag during motor start sequences.

Application in Critical Infrastructure

In oil and gas upstream facilities, the QUINT-PS/1AC/24DC/20 is deployed in Ex-rated control panels within Zone 2 classified areas, powering Emerson DeltaV I/O cards, Yokogawa CENTUM VP field control stations, and Honeywell Experion PKS remote I/O modules. Its wide-range AC input (85–264 VAC) accommodates the unstable generator power common at remote wellhead sites, while its robust EMC design suppresses interference from high-power pump motors and variable-speed compressor drives operating in close proximity.

In underground mining operations, where ambient temperatures can swing from sub-zero portal entries to +55 °C deep-level headings, and where coal dust and silica particulate create both explosion risk and insulation degradation, the QUINT-PS/1AC/24DC/20’s sealed construction and IEC 60068-2-6 vibration compliance ensure continuous operation on conveyor control panels and ventilation management systems. Its DIN rail form factor allows rapid replacement during planned maintenance windows, minimizing production downtime.

Power generation facilities — including thermal, hydro, and wind — rely on the QUINT series to supply protection relay panels, SCADA RTUs, and substation automation IEDs (Intelligent Electronic Devices). The unit’s high MTBF rating and active power factor correction (PFC) make it compatible with UPS-backed distribution boards, ensuring that control systems remain energized during grid disturbances. In water and wastewater treatment plants, where corrosive chlorine atmospheres and high-humidity pump rooms challenge conventional electronics, the QUINT-PS/1AC/24DC/20 maintains stable output for SCADA-connected PLCs managing dosing pumps, aeration blowers, and sludge handling conveyors.

Metallurgical and steel mill environments present perhaps the harshest conditions of all: radiant heat from furnaces, intense electromagnetic fields from arc furnaces and induction heaters, and constant mechanical vibration from rolling mills and presses. The QUINT-PS/1AC/24DC/20 has been validated in these environments, powering Siemens S7-400H redundant PLC systems and ABB System 800xA DCS controllers that govern melt shop automation, casting line sequencing, and rolling mill speed control.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact [email protected] with your order number and a description of the fault. We will arrange return shipping, conduct a functional test, and dispatch a replacement or repaired unit within 5–7 business days. Warranty does not cover damage caused by incorrect installation, overvoltage events beyond rated input range, or physical impact.

Q2: How is each unit tested before shipment?
Every QUINT-PS/1AC/24DC/20 unit undergoes a pre-shipment functional test covering output voltage accuracy, load regulation under 100% rated current, and SFB current-boost verification. Units sourced from authorized distribution channels are accompanied by original Phoenix Contact packaging and, where available, factory test certificates. Refurbished or reconditioned units are clearly identified and sold separately at a different price tier — all units listed here are new-in-box unless explicitly stated otherwise.

Q3: Is this unit compatible with my existing PLC or DCS system?
The QUINT-PS/1AC/24DC/20 outputs a standard 24 VDC rail compatible with virtually all industrial control systems that accept 24 VDC auxiliary power, including Siemens SIMATIC S7-300/400/1200/1500, Rockwell Automation ControlLogix/CompactLogix, Schneider Electric Modicon M340/M580, ABB AC500, Mitsubishi MELSEC iQ-R, and Omron NX/NJ series PLCs. It is also compatible with Phoenix Contact RFC 460/470 controllers and all standard 24 VDC I/O modules, safety relays, and communication gateways.

Q4: Can you guarantee long-term supply and support for this model?
The QUINT-PS/1AC/24DC/20 is an established, long-lifecycle product within Phoenix Contact’s QUINT power supply portfolio. TOPNLMS maintains buffer stock of this model to support planned maintenance programs, spare-parts contracts, and emergency replacement orders. For projects requiring guaranteed multi-year supply agreements or consignment stock arrangements, contact our team directly at [email protected] or +86 18359293191 to discuss a tailored supply contract.
