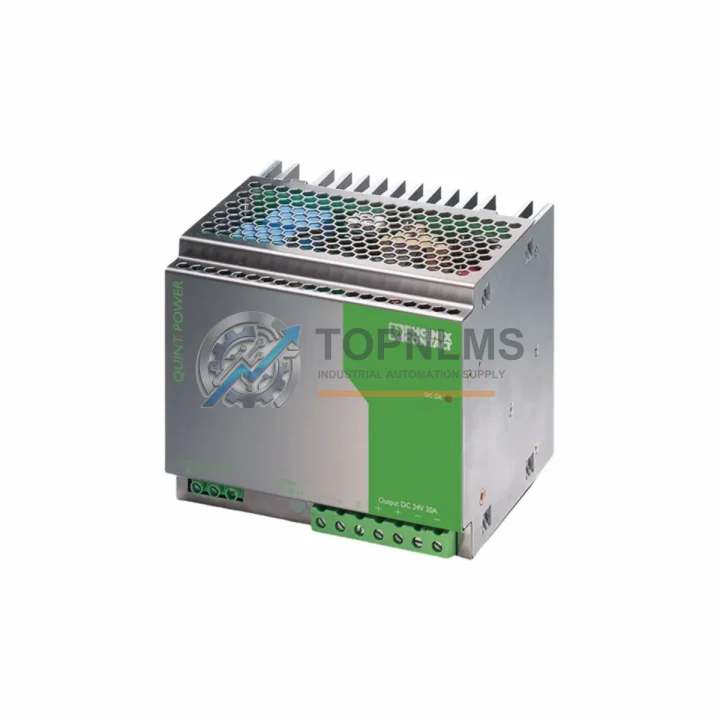

PHOENIX CONTACT QUINT-PS-100-240AC/24DC/20 Original Industrial Spare QUINT POWER Compatible

Product Overview

PHOENIX CONTACT QUINT-PS-100-240AC/24DC/20 2938620: System Stability and Industrial Spare Parts Maintenance Value

In modern industrial automation environments, power supply reliability is the foundation of every control system. The PHOENIX CONTACT QUINT-PS-100-240AC/24DC/20 (Order No. 2938620) is a flagship 480W DIN rail power supply from the renowned QUINT POWER series — engineered for continuous-duty operation in demanding factory automation, process control, and machine safety applications. When this unit fails or approaches end-of-life, the consequences extend far beyond a single cabinet: downstream PLCs, I/O modules, field devices, and safety relays all lose their power source simultaneously, triggering unplanned downtime that can cost thousands per hour in production losses.

Stocking a verified original replacement unit is not merely a procurement decision — it is a risk management strategy. This product is sourced as an original spare, tested prior to shipment, and backed by a 12-month warranty, giving maintenance engineers and procurement managers the confidence to act decisively when a fault occurs.

Critical Technical Specs

Preventive Maintenance Strategy

A DIN rail power supply sits at the heart of every control cabinet, and its health directly determines the operational continuity of every component it feeds. When scheduling a planned maintenance window or responding to an unplanned shutdown, experienced maintenance engineers know that replacing the PSU in isolation is rarely sufficient — a thorough cabinet inspection is always warranted.

During a QUINT-PS-100-240AC/24DC/20 replacement, it is best practice to simultaneously inspect the PHOENIX CONTACT QUINT-PS/1AC/24DC/10 units powering auxiliary circuits, as well as any QUINT-BUFFER/24DC/40 capacitor modules providing bridging time during brief power interruptions. Check the condition of PHOENIX CONTACT ST 2.5 terminal blocks and PTFIX distribution terminal blocks on the 24VDC bus — loose or corroded terminals are a leading cause of intermittent faults that are often misdiagnosed as PSU failure.

If the cabinet houses a PHOENIX CONTACT ILC 150 ETH or RFC 460R PN 3TX controller, verify that the controller’s supply voltage is within spec after PSU replacement, as QUINT POWER units with SFB technology can deliver up to 200% current boost for 12 ms — a characteristic that must be accounted for when sizing downstream PHOENIX CONTACT ELR 1/500AC/1 soft starters or motor protection relays. Inspect PHOENIX CONTACT PSR safety relays in the same cabinet, as these devices share the 24VDC rail and are sensitive to voltage transients during PSU hot-swap procedures.

For systems with fieldbus communication, check the PHOENIX CONTACT FL SWITCH 1008 or similar managed Ethernet switches powered from the same rail — network instability during PSU changeover can cause PLC communication faults that persist after power restoration. Finally, review the condition of PHOENIX CONTACT MINI MCR-SL signal isolators and MACX MCR analog input modules if the cabinet serves process instrumentation loops, as these modules are particularly sensitive to supply ripple and voltage dips.

A proactive spare parts inventory that includes one replacement QUINT-PS-100-240AC/24DC/20 unit, a set of terminal block bridges, and a spare safety relay module can reduce mean time to repair (MTTR) from hours to under 30 minutes — a measurable improvement in overall equipment effectiveness (OEE).

Strategic Replacement Solutions

The QUINT-PS-100-240AC/24DC/20 2938620 is a direct form-fit-function replacement for the earlier QUINT-PS/1AC/24DC/20 variant, maintaining identical DIN rail footprint, terminal layout, and output characteristics. This backward compatibility is critical for facilities operating legacy control systems where panel redesign is not feasible — the replacement can be completed in under 15 minutes by a qualified technician without any wiring modifications.

For sites managing multiple cabinets across a production floor, standardizing on the QUINT POWER 24VDC/20A platform simplifies spare parts inventory, reduces training requirements, and enables cross-cabinet cannibalization in emergency scenarios. The QUINT POWER series’ built-in preventive function monitoring output signal can be wired to a PLC digital input (e.g., a PHOENIX CONTACT IB IL 24 DI 16 Inline I/O module) to provide early warning of PSU degradation before a hard failure occurs — transforming reactive maintenance into a predictive strategy.

For older installations originally equipped with third-party 24VDC/20A DIN rail supplies, the QUINT-PS-100-240AC/24DC/20 offers a certified upgrade path with superior surge handling, wider input voltage tolerance, and ATEX Zone 2 approval for installations in potentially explosive atmospheres — extending system life without requiring cabinet redesign.

Support FAQ

Q1: Is this a genuine original PHOENIX CONTACT unit or an aftermarket replacement?
This is an original PHOENIX CONTACT QUINT-PS-100-240AC/24DC/20 (Order No. 2938620) sourced from authorized supply channels. Each unit undergoes pre-shipment functional testing and is covered by a 12-month warranty from the date of delivery.

Q2: How do I verify compatibility with my existing QUINT POWER cabinet installation?
Confirm your existing unit’s order number (2938620 or legacy QUINT-PS/1AC/24DC/20) and output rating (24VDC / 20A / 480W). The QUINT-PS-100-240AC/24DC/20 is a direct drop-in replacement with identical terminal positions and DIN rail width. If your installation uses the QUINT POWER signaling output for PLC monitoring, no rewiring is required.

Q3: What is the recommended inventory strategy for this PSU in a multi-cabinet facility?
Industry best practice recommends maintaining one spare unit per 5–10 installed cabinets, or one unit per critical production line. Given the QUINT POWER series’ typical service life of 10+ years, a single spare unit held in a climate-controlled store provides cost-effective insurance against unplanned downtime. Pair with a spare set of PHOENIX CONTACT ST 2.5 terminal blocks and a QUINT-BUFFER module for a complete cabinet recovery kit.

Q4: What does the 12-month warranty cover, and what is the shipping timeline?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions. Units are dispatched within 1–3 business days of order confirmation. Express shipping options are available for urgent maintenance requirements. Contact us at [email protected] or +86 18359293191 for lead time confirmation and bulk pricing.
