Phoenix Contact IBS RT 24DI0 16/16-T Replacement for INTERBUS: Smooth Migration from Legacy Remote Terminal Systems

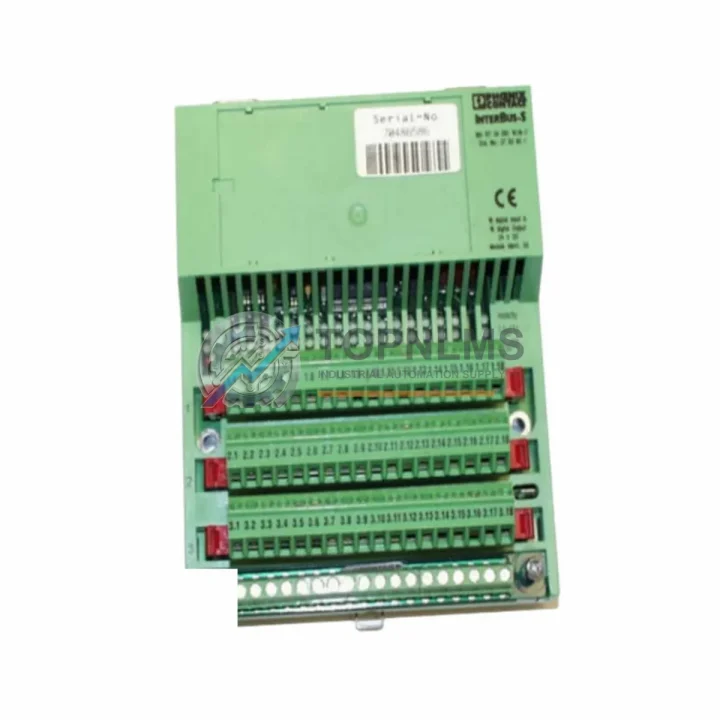

The Phoenix Contact IBS RT 24DI0 16/16-T is a 24 V DC INTERBUS remote terminal module providing 16 digital inputs and 16 digital outputs in a compact DIN-rail form factor. As this model reaches end-of-availability in many regional distribution channels, plant engineers and procurement teams are actively seeking verified replacement and upgrade paths that preserve existing wiring infrastructure, INTERBUS segment topology, and PLC program logic without requiring a full control-cabinet redesign.

TOPNLMS maintains ready stock of the IBS RT 24DI0 16/16-T and its closest functional equivalents within the Phoenix Contact INTERBUS ecosystem. Every unit is inspected, function-tested, and shipped with a 12-month warranty, giving maintenance teams the confidence to plan scheduled shutdowns or emergency replacements with minimal lead-time risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration from a legacy INTERBUS remote terminal installation rarely involves a single module swap. In practice, the IBS RT 24DI0 16/16-T sits within a broader control architecture that may include the Phoenix Contact IBS BK 24 DI 16/16-T bus coupler, which bridges the INTERBUS segment to the main backplane. Upstream, the INTERBUS master — often a Phoenix Contact IBS PC SC/I-T PCI interface card or an equivalent IBS S7 300 DSC/I-T SIMATIC S7 coupler — manages segment timing and diagnostics. Replacing the remote terminal without verifying the master firmware version can introduce subtle timing mismatches; TOPNLMS can advise on compatible firmware revisions.

Power distribution within the cabinet is equally critical. The Phoenix Contact QUINT-PS/1AC/24DC/10 or equivalent 24 V DC QUINT power supply is the standard upstream source for INTERBUS I/O segments. If the existing PSU is also aging, a simultaneous replacement reduces the risk of intermittent voltage sags that can cause spurious input reads on the new module.

On the field-wiring side, many sites use Phoenix Contact FLKM 50-PA or similar pre-assembled flat-ribbon cable sets to connect the remote terminal to marshalling terminals. These cable assemblies are keyed and polarized, so they transfer directly to a replacement module without re-pinning. Where individual signal cables are used instead, Phoenix Contact PT 2,5 spring-cage terminal blocks on the marshalling rail remain fully compatible.

For sites migrating from INTERBUS to a modern fieldbus such as PROFINET or EtherNet/IP, the Phoenix Contact ILC 151 ETH inline controller or the AXL F BK PN PROFINET bus coupler can serve as a gateway, allowing the existing 16DI/16DO field wiring to be retained while the upper-level communication layer is modernized. This hybrid approach significantly reduces the scope of PLC reprogramming and cabinet rework.

HMI integration should also be reviewed during the migration window. A Phoenix Contact TP 3057T or equivalent panel-mount touchscreen connected via Ethernet to the updated controller can provide improved diagnostics visibility compared to legacy indicator lamps wired directly to the old remote terminal’s output channels.

Retrofit Guidance FAQ

Q: Do I need to re-wire the field terminals when replacing the IBS RT 24DI0 16/16-T?
A: No. The COMBICON connector pitch and terminal assignment are preserved in direct replacement units. Disconnect the existing connector block, verify the wiring label against the new module’s terminal diagram, and reconnect. No individual wire re-termination is required in a like-for-like swap.

Q: Will my existing PLC program run without modification?
A: Yes, for a direct replacement. The INTERBUS process data image (16 DI bits + 16 DO bits) maps to the same PLC I/O addresses. No program changes, force tables, or symbol reassignments are needed. If you are migrating to a different fieldbus platform, a partial I/O remapping will be required, but the field-side wiring remains unchanged.

Q: How do I set the INTERBUS node address on the replacement module?
A: The IBS RT 24DI0 16/16-T uses rotary DIP switches for node addressing. Record the existing switch positions before removing the legacy module, then replicate the same settings on the replacement unit before powering up the segment.

Q: What communication diagnostics are available after installation?
A: INTERBUS provides segment-level diagnostics through the master interface. After replacing the module, perform a bus scan from the INTERBUS master (e.g., via IBS CMD software or the S7 hardware configuration tool) to confirm the new node is recognized at the correct address with the expected process data length.

Q: Can the replacement module operate in a mixed INTERBUS segment alongside other Phoenix Contact IBS RT devices?
A: Yes. INTERBUS is a daisy-chain protocol; the replacement module connects in series with other remote terminals such as the IBS RT 24 DI 16/8-T or IBS RT 24 DO 16/8-T without segment reconfiguration, provided the total segment current budget is not exceeded.

Q: What is the physical installation space requirement?
A: The module mounts on a standard 35 mm DIN rail and occupies the same width as the original unit. No additional cabinet space or modified mounting brackets are required.

Warranty Assurance

Every Phoenix Contact IBS RT 24DI0 16/16-T unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Pre-shipment testing includes functional verification of all 16 digital input channels and all 16 digital output channels under 24 V DC load conditions, INTERBUS communication handshake validation, and visual inspection for connector integrity and label legibility.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial fault assessment and 5 business days for replacement dispatch. Customers are not required to return the defective unit before a replacement is shipped for verified warranty cases, minimizing production downtime.

Stock is maintained in our Xiamen warehouse with same-day dispatch available for in-stock orders placed before 15:00 CST. International shipments are supported via DHL Express, FedEx International Priority, and UCP air freight, with full tracking provided at the time of dispatch.

For volume procurement, OEM qualification samples, or technical pre-sales consultation on migration compatibility, contact our engineering team directly.
