PHOENIX CONTACT IBS RT 24DI/16-T Ruggedized Digital Input Module

Product Overview

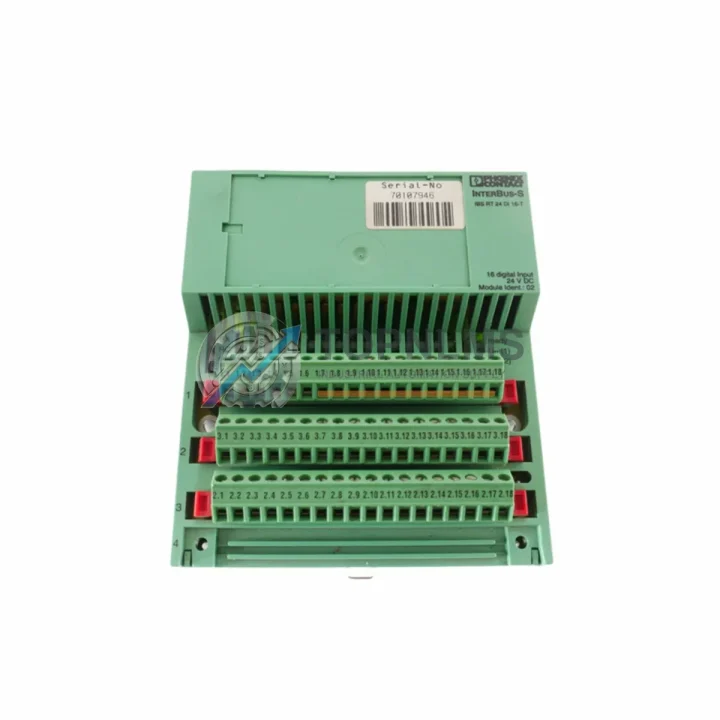

PHOENIX CONTACT IBS RT 24DI/16-T Ruggedized Digital Input Module for Harsh Industrial Environments

The PHOENIX CONTACT IBS RT 24DI/16-T is a 16-channel digital input remote terminal module engineered for the Interbus RT fieldbus system — one of the most proven real-time communication architectures in industrial automation. Designed and manufactured in Germany to PHOENIX CONTACT’s exacting standards, this module delivers deterministic signal acquisition and robust field-level connectivity in environments where reliability is non-negotiable: high-temperature process lines, high-humidity coastal facilities, dust-laden mining galleries, vibration-intensive heavy machinery platforms, and electromagnetically noisy power generation switchrooms.

With a 24 V DC operating voltage and a compact DIN-rail form factor, the IBS RT 24DI/16-T integrates seamlessly into existing Interbus RT control architectures, enabling plant engineers to expand or replace digital input capacity without redesigning the control cabinet. Its rugged housing and conformal-coated PCB resist condensation, particulate ingress, and corrosive atmospheres — critical attributes for continuous-production facilities that cannot afford unplanned downtime.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated Interbus RT control architecture, the IBS RT 24DI/16-T operates as the field-level sensing backbone, feeding real-time digital status signals to the host controller — typically a PHOENIX CONTACT ILC 150 ETH or RFC 430 ETH-IB inline controller — over the Interbus ring. Paired with the IBS RT 24DO/16-T 16-channel digital output remote terminal module, the system achieves symmetrical I/O expansion without adding fieldbus complexity.

For mixed analog and digital signal environments — common in process industries — the IBS RT 24DI/16-T is frequently deployed alongside the IBS RT AIO/4-8-T analog I/O module, allowing a single Interbus segment to handle both discrete machine states and continuous process variables such as temperature, pressure, and flow. Power distribution within the control cabinet is typically managed by the PHOENIX CONTACT QUINT-PS/1AC/24DC/10 or TRIO-PS/1AC/24DC/5 DIN-rail power supply, which provides the stable 24 V DC rail that the IBS RT 24DI/16-T requires for deterministic operation.

In safety-critical zones — such as emergency shutdown panels or SIL-rated interlocking circuits — the IBS RT 24DI/16-T is often installed in the same cabinet as the PHOENIX CONTACT PSR-SCP-24DC/ESD/5X1/1X2 safety relay module, ensuring that digital input signals from field sensors are correctly captured before being processed by the safety logic. Surge protection on field wiring is handled by PHOENIX CONTACT TRABTECH PT 2X2-24DC-ST surge protection devices, shielding the module’s input circuits from transient overvoltages caused by lightning strikes or motor switching events.

Communication transparency across the plant network is maintained through the PHOENIX CONTACT FL SWITCH 1008 industrial Ethernet switch, which bridges Interbus segment data to higher-level SCADA and DCS platforms. Terminal connectivity within the cabinet is standardized using PHOENIX CONTACT UT 2.5 and PT 2.5 series feed-through terminal blocks, ensuring reliable, vibration-proof wiring termination for all 16 input channels.

Application in Critical Infrastructure

Oil & Gas Upstream and Midstream: On offshore platforms and onshore compressor stations, the IBS RT 24DI/16-T monitors valve position feedback, pressure switch states, and emergency stop signals across hazardous-area junction boxes. Its wide operating temperature range and EMC immunity make it suitable for installation in Zone 2 classified areas when housed in certified Ex e enclosures, providing continuous digital input acquisition even under the electromagnetic interference generated by variable-frequency drives controlling pump motors.

Mining and Mineral Processing: In underground coal mines and open-pit copper concentrators, conveyor belt systems, crusher interlocks, and ventilation fan status signals are routed through IBS RT 24DI/16-T modules installed in dust-proof control rooms. The module’s vibration resistance ensures signal integrity despite the constant mechanical shock transmitted through the mine structure, while its conformal coating protects against the high-humidity, sulfur-laden atmospheres common in sulfide ore processing.

Power Generation and Transmission: Thermal power plants and hydroelectric facilities rely on the IBS RT 24DI/16-T to acquire turbine protection relay trip signals, circuit breaker position feedback, and auxiliary contact states from high-voltage switchgear. The module’s IEC 61000-4 EMC compliance ensures immunity to the intense magnetic fields present in generator halls and transformer substations, where lesser I/O modules frequently suffer from spurious input toggling.

Water and Wastewater Treatment: Municipal water treatment plants and industrial effluent systems deploy the IBS RT 24DI/16-T to monitor pump run/fault status, level switch states, and UV disinfection system alarms. Its resistance to high ambient humidity — up to 95% non-condensing — is essential in wet well pump stations and membrane bioreactor buildings where condensation is a persistent challenge for electronic equipment.

Metallurgy and Steel Production: In electric arc furnace control systems and continuous casting lines, the IBS RT 24DI/16-T captures cooling water flow confirmation, hydraulic pressure switch states, and mold level sensor signals at scan rates compatible with the fast process dynamics of steel production. Its ability to operate reliably at elevated ambient temperatures — up to 55 °C — is critical in areas adjacent to ladle transfer cars and tundish preheating stations.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the IBS RT 24DI/16-T?
All IBS RT 24DI/16-T units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing — including input channel verification, fieldbus communication handshake, and power supply integrity checks — before dispatch. A test report is available upon request for quality-critical procurement.

Q2: How is compatibility with existing Interbus RT systems verified?
The IBS RT 24DI/16-T is a standard PHOENIX CONTACT Interbus RT remote terminal module and is fully compatible with all Interbus RT master controllers, including the ILC and RFC series inline controllers. TOPNLMS technical staff can assist with firmware version cross-referencing and segment configuration review to confirm drop-in compatibility before shipment, minimizing integration risk for maintenance replacements.

Q3: What is the lead time and shipping arrangement for urgent replacement orders?
TOPNLMS maintains bonded inventory of high-demand PHOENIX CONTACT Interbus RT modules at our Xiamen warehouse. In-stock units are typically dispatched within 1–2 business days via DHL Express, FedEx International Priority, or customer-nominated freight forwarder. For critical plant shutdowns requiring same-day dispatch, please contact our sales team directly to confirm stock availability and arrange priority handling.

Q4: Can the IBS RT 24DI/16-T be used as a long-term replacement for discontinued or end-of-life variants?
Yes. PHOENIX CONTACT has maintained backward compatibility across successive Interbus RT generations, and the IBS RT 24DI/16-T remains a current-production module with confirmed long-term supply availability. TOPNLMS also maintains a reserve stock program for customers with multi-year maintenance contracts, ensuring continuity of supply for facilities that cannot tolerate control system redesign. Contact our team to discuss a dedicated stock reservation agreement.
