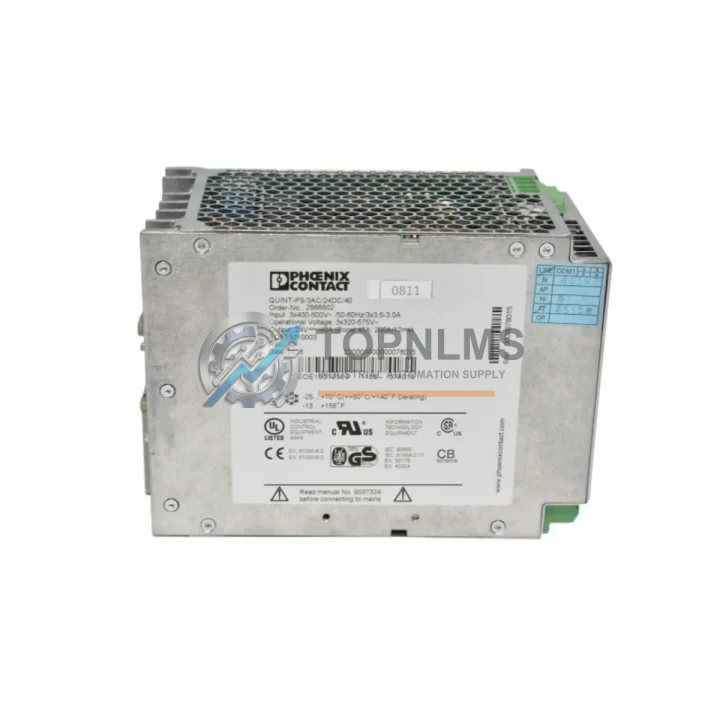

Phoenix Contact 2866802 QUINT-PS/3AC/24DC/40: System Stability Through Reliable Industrial Power

In industrial automation environments, power supply reliability is the foundation of every control system. The Phoenix Contact 2866802 QUINT-PS/3AC/24DC/40 is a three-phase, 24VDC, 40A DIN-rail mounted power supply engineered for continuous-duty industrial applications. Whether you are managing a scheduled maintenance window, responding to an unplanned shutdown, or building a strategic spare parts inventory, the 2866802 delivers the electrical performance and form-factor compatibility required to restore system operation with minimal downtime.

The QUINT Power series is Phoenix Contact’s flagship line of industrial power supplies, recognized globally for its active power boost capability, comprehensive diagnostics, and long service life. The 2866802 is a direct original replacement for aging QUINT-PS units in existing control cabinets, preserving wiring layouts, DIN-rail footprints, and downstream load characteristics without requiring panel redesign.

Critical Technical Specs

Preventive Maintenance Strategy

A power supply failure in a 24VDC control bus does not occur in isolation — it cascades. When the 2866802 is flagged for replacement during a scheduled inspection or after a DC-OK alarm, experienced maintenance engineers treat the event as a trigger for a broader cabinet audit. The QUINT-PS/3AC/24DC/40 feeds downstream loads including Phoenix Contact QUINT-PS/1AC/24DC/20 (2866763) redundancy modules, TRIO-PS/1AC/24DC/10 (2903148) auxiliary supplies, and UNO-PS/1AC/24DC/30W (2902993) units powering sensor loops — all of which should be inspected for output voltage drift and capacitor aging at the same interval.

Within the same control cabinet, the 24VDC bus typically powers Phoenix Contact IB IL 24 DO 16 (2861294) digital output modules and IB IL 24 DI 16 (2861272) digital input modules on Inline I/O backplanes. These modules are sensitive to supply ripple; a degraded power supply often manifests first as intermittent I/O faults before the PSU itself trips. Replacing the 2866802 and simultaneously verifying the health of connected I/O modules eliminates the most common root causes of nuisance faults in one maintenance cycle.

Communication integrity should also be verified during the same window. Phoenix Contact FL SWITCH 1008 (2891929) managed Ethernet switches and RAD-ISM-900-EN-BD (2901514) wireless modules draw from the same 24VDC rail and are vulnerable to voltage sag during PSU degradation. Inspecting these alongside the power supply replacement prevents secondary communication faults from appearing after the panel is returned to service.

For facilities running redundant power architectures, the Phoenix Contact QUINT-ORING/24DC/2X20/1X40 (2320898) diode ORing module should be tested for forward-voltage balance whenever either upstream PSU is replaced. Unbalanced ORing modules can cause unexpected load-sharing failures that are difficult to diagnose under normal operating conditions. Additionally, Phoenix Contact TRABTECH PT 2X2-24DC-ST (2856226) surge protection devices on the 24VDC output lines should be inspected for sacrificial element status — a common oversight during PSU-focused maintenance visits.

Terminal block integrity is a final checkpoint. Phoenix Contact UK 6-TWIN (3044120) and ST 2.5 (3031204) terminal blocks adjacent to the PSU output terminals should be checked for discoloration, loose ferrules, and contact resistance — all indicators of thermal stress caused by prolonged operation of a degrading power supply.

Strategic Replacement Solutions

The 2866802 is designed as a form-fit-function replacement for all QUINT-PS/3AC/24DC/40 units regardless of production date. Phoenix Contact has maintained dimensional and connector compatibility across QUINT Power generations, meaning the replacement unit installs on the existing DIN-rail segment, connects to the existing three-phase input wiring, and delivers output to the existing 24VDC bus without any panel modification.

For facilities managing legacy systems originally commissioned with earlier QUINT-PS variants, the 2866802 offers measurable improvements: higher efficiency (≥95.5% vs. ~93% on older units), integrated SFB selective fuse-breaking diagnostics absent in first-generation QUINT-PS hardware, and a wider operating temperature range that extends suitability to outdoor enclosures and harsh-environment panels. These improvements reduce long-term energy costs and improve fault isolation speed during troubleshooting.

Procurement teams managing multi-site operations benefit from standardizing on the 2866802 as the single approved spare for all three-phase 24VDC/40A positions across their installed base. A single SKU simplifies purchase orders, reduces warehouse SKU proliferation, and ensures technicians always have a verified compatible unit on hand regardless of which site experiences a failure. Holding two units per critical line as a minimum stock recommendation is consistent with industry best practice for high-availability manufacturing environments.

Support FAQ

Q1: Is the Phoenix Contact 2866802 an original (OEM) unit or a compatible aftermarket replacement?
The 2866802 supplied by TOPNLMS is an original Phoenix Contact manufactured unit — not a copy, clone, or third-party compatible. Each unit is sourced through verified industrial supply channels and carries full Phoenix Contact part markings, serial number, and CE/UL certification labels.

Q2: What does the 12-month warranty cover, and how is the unit tested before shipment?
Every 2866802 unit undergoes functional verification prior to dispatch: input voltage application across the rated 3-phase range, output voltage measurement at no-load and full-load, DC-OK relay confirmation, and SFB diagnostic check. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of receipt. Warranty claims are processed via [email protected].

Q3: Can this unit replace an older QUINT-PS/3AC/24DC/40 with a different firmware or hardware revision?
Yes. Phoenix Contact maintains backward mechanical and electrical compatibility across QUINT-PS/3AC/24DC/40 hardware revisions. The 2866802 installs directly into the existing DIN-rail position and connects to existing wiring without modification. Output voltage is factory-set to 24VDC and is field-adjustable via the front-panel potentiometer if fine-tuning is required.

Q4: What is the recommended inventory strategy for this part in a high-availability plant?
For production lines where a 24VDC bus failure results in full line stoppage, a minimum of two 2866802 units per facility is recommended — one installed as the active unit and one held as an immediate hot-swap spare. For multi-line or multi-site operations, a centralized spare pool of four to six units with quarterly rotation and functional testing is a cost-effective approach that balances inventory carrying cost against downtime risk.
