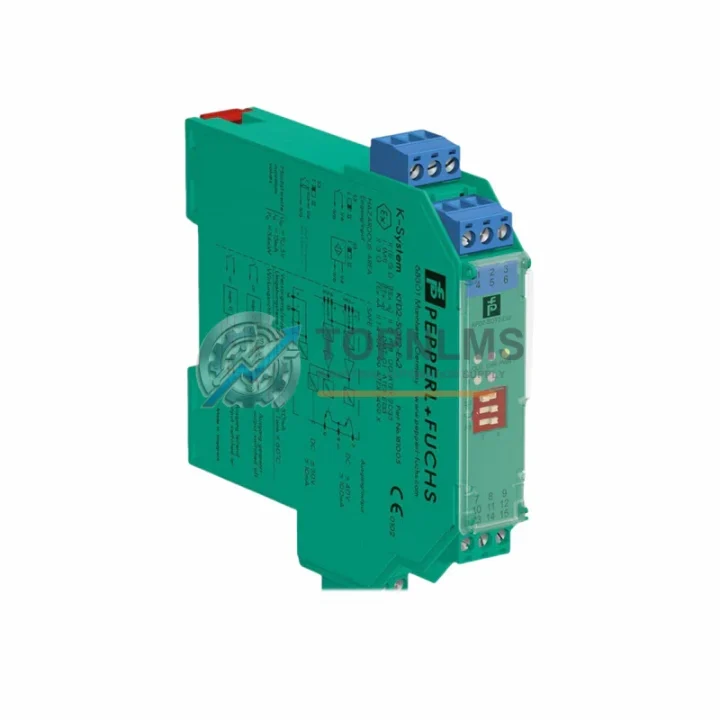

Pepperl+Fuchs KFD2SR2EX2.W Ruggedized Isolated Barrier Module: Industrial Resilience in Hazardous Environments

The Pepperl+Fuchs KFD2SR2EX2.W is a 2-channel isolated switch amplifier engineered for the most demanding industrial automation environments. Designed to interface NAMUR-compliant sensors in Zone 0/1/2 and Division 1/2 hazardous areas with safe-area control systems, this module delivers uncompromising signal integrity, galvanic isolation, and SIL 2-rated functional safety performance. Whether deployed in continuous petrochemical production lines, offshore gas platforms, underground mining operations, or high-voltage power distribution substations, the KFD2SR2EX2.W maintains reliable operation where conventional electronics fail.

Built on Pepperl+Fuchs’ proven KFD2 series platform, this module integrates seamlessly into DIN-rail-mounted control cabinets alongside complementary components such as the KFD2-SR2-EX1.W single-channel variant, KFD2-UT2-EX1 universal transmitter power supplies, and KFD2-CD-EX1.32 collective diagnostic modules. Its compact 20 mm housing allows high-density installation in space-constrained marshalling panels, reducing cabinet footprint without sacrificing channel count or diagnostic capability.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial safety architectures, the KFD2SR2EX2.W does not operate in isolation — it is a critical node within a layered protection strategy. In a typical safety instrumented system (SIS), NAMUR proximity sensors or magnetic switches in the hazardous zone feed their binary signals through this barrier module into a Siemens S7-300 or S7-400 fail-safe CPU running safety-rated logic via STEP 7 Safety or TIA Portal Safety Advanced. The relay outputs of the KFD2SR2EX2.W can directly drive Pilz PNOZ safety relays or interface with Rockwell Allen-Bradley GuardLogix safety I/O modules, providing cross-vendor interoperability without additional signal conditioning.

On the power supply side, the module draws from the Pepperl+Fuchs KFD2-PW-Ex1.D Power Rail system, which distributes 24 V DC across an entire marshalling cabinet row, eliminating individual wiring runs and simplifying cabinet maintenance. For applications requiring analog signal conditioning alongside discrete switching, the KFD2-STC4-Ex1 temperature transmitter and KFD2-UT2-EX1 universal transmitter can be mounted adjacently on the same rail, sharing the same power bus and diagnostic backbone.

Where process variables require continuous monitoring, the KFD2SR2EX2.W works in tandem with Endress+Hauser Fieldgate SFG500 or Pepperl+Fuchs FieldConnex FOUNDATION Fieldbus segment couplers to relay discrete status signals — valve open/closed, pump running/stopped, level switch tripped — back to the DCS historian. In Modbus RTU or PROFIBUS PA architectures, the module’s relay outputs integrate directly with Wago 750-series I/O modules or Phoenix Contact Inline controllers, enabling flexible topology without gateway overhead.

For cabinet-level surge and transient protection, pairing the KFD2SR2EX2.W with Phoenix Contact TRABTECH PT 2×24 DC-ST surge arresters on field cable entries ensures that lightning-induced transients or switching surges from large motor starters do not propagate into the intrinsically safe circuit. This combination is particularly critical in open-air substations, coastal LNG terminals, and high-altitude wind farm control rooms where atmospheric discharge events are frequent.

Application in Critical Infrastructure

In oil and gas upstream operations, the KFD2SR2EX2.W is routinely installed in wellhead control panels and HIPPS (High Integrity Pressure Protection Systems) where SIL 2 certification is a regulatory prerequisite. The module’s intrinsic safety barrier function ensures that even under fault conditions — cable short-circuit, insulation breakdown, or sensor flooding — the energy delivered to Zone 0 equipment remains below the ignition threshold of the surrounding atmosphere, whether methane, hydrogen sulfide, or propane.

In underground coal and hard-rock mining, where methane accumulation and coal dust create persistent explosion risks, the KFD2SR2EX2.W enables reliable monitoring of conveyor belt speed sensors, emergency stop switches, and gas detector alarm contacts. Its wide operating temperature range (−20 °C to +60 °C) accommodates both deep-level high-temperature headings and cold surface installations in northern climates.

In power generation and grid substations, the module interfaces protection relay binary outputs — trip signals, breaker status, transformer Buchholz relay contacts — with SCADA RTUs and DCS systems. Its 3-way galvanic isolation (input/output/power) prevents ground loops that would otherwise corrupt protection relay logic in high-voltage environments with multiple earthing points.

In water and wastewater treatment plants, the KFD2SR2EX2.W monitors float switches, pump seal failure contacts, and chlorine gas detector alarms in classified areas adjacent to chemical dosing stations. Its DIN rail form factor integrates cleanly into IEC 61439-compliant control panels, and its diagnostic LED indicators allow maintenance technicians to verify loop integrity without disconnecting field wiring.

In metallurgical and steel production environments, where electromagnetic interference from arc furnaces and induction heaters is extreme, the module’s EN 61326-1 EMC compliance and galvanic isolation architecture ensure that discrete safety signals remain uncorrupted even when installed within meters of high-current bus bars and variable frequency drives controlling rolling mill motors.
