Pepperl+Fuchs KFD2-STC5-1 Replacement for KFD2 Series: Seamless Transition & Legacy System Upgrade

The Pepperl+Fuchs KFD2-STC5-1 is a 2-wire SMART transmitter power supply and HART signal isolator designed for DIN-rail mounting in Zone 1/Zone 2 hazardous-area control cabinets. As legacy field instrument loops age and older KFD2-series isolators approach end-of-service, plant engineers and procurement teams increasingly seek a verified, drop-in replacement that preserves existing wiring, cabinet layout, and HART communication topology without requiring a full I/O redesign.

This listing provides a tested, in-stock KFD2-STC5-1 unit sourced directly from authorized supply channels, backed by a 12-month warranty and pre-shipment functional verification. Whether you are replacing a single failed isolator or executing a phased migration of an entire marshalling cabinet, the KFD2-STC5-1 integrates into your existing infrastructure with minimal engineering effort.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful KFD2-STC5-1 migration rarely involves a single module in isolation. In practice, the replacement is part of a broader marshalling cabinet or field junction box retrofit. The following components are commonly addressed in the same work order:

When the existing KFD2-EB2 power bus is already installed in the cabinet, the KFD2-STC5-1 simply clips onto the bus without additional power wiring — a significant advantage over older discrete-wired isolators. If the power bus itself is being renewed, the KSD2-GW power rail provides an alternative bus architecture compatible with the same module footprint.

Field transmitters connected to the loop — such as pressure transmitters, temperature transmitters, or flow meters communicating over HART — continue to operate without firmware changes. The KFD2-STC5-1 passes HART communication transparently, so a HART multiplexer or HART modem (e.g., a USB HART modem used for field calibration) can still interrogate the transmitter through the isolator without modification.

On the control-system side, the 4–20 mA output feeds directly into the existing analog input cards of your DCS or PLC — whether that is a Siemens S7-300 SM331 analog input module, an ABB S800 AI810 module, or a Honeywell HC900 analog input card. No re-ranging or re-scaling of the AI channel is required because the KFD2-STC5-1 preserves the 4–20 mA span and live-zero convention of the original isolator.

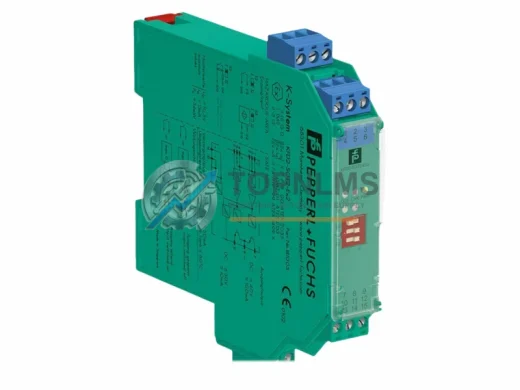

Where the retrofit also involves replacing adjacent isolator types — for example, switching from a discrete relay output isolator to a KFD2-SR2-Ex2.W solenoid driver, or adding a KFD2-UT2-Ex2 universal temperature transmitter interface — the 12.5 mm module pitch of the KFD2 family ensures that mixed-function modules sit side by side on the same DIN rail without spacing adapters.

If the project scope extends to the field junction box, Pepperl+Fuchs FB series field barriers or segment couplers for PROFIBUS PA or FOUNDATION Fieldbus segments may also be evaluated at the same time, particularly where the plant is migrating from 4–20 mA HART loops to a digital fieldbus architecture in parallel with the isolator replacement.

For cabinet-level documentation, the KFD2-STC5-1 GSD/EDD device description file is available from Pepperl+Fuchs and can be imported into asset management tools such as PACTware or FieldCare to maintain an up-to-date device register after the swap.

Retrofit Guidance FAQ

Q: Can I re-use the existing field cable and terminal connections?
Yes. The KFD2-STC5-1 uses the same terminal assignment as earlier KFD2 SMART isolators. Field wiring connected to terminals 1(+) and 2(−) on the field side, and terminals 3(+) and 4(−) on the control side, does not need to be re-routed or re-labeled. Verify terminal tightening torque per the installation datasheet (0.5–0.6 N·m for screw terminals).

Q: Will my DCS or PLC program require changes?
No software changes are required for the analog 4–20 mA signal path. If your system uses HART pass-through for device diagnostics, the HART 7 compatibility of the KFD2-STC5-1 is backward compatible with HART 5/6 devices, so existing HART commands and device descriptions remain valid.

Q: How is HART communication handled during the swap?
HART communication is transparent through the isolator. During the physical swap, the HART loop is briefly interrupted (typically less than 30 seconds for a trained technician). No HART address reassignment or re-configuration of the host HART master is required after reinstallation.

Q: Does the module fit in the same cabinet slot?
Yes. The KFD2-STC5-1 is 12.5 mm wide and mounts on a standard 35 mm DIN rail. It occupies exactly the same physical footprint as the module it replaces, so no cabinet re-layout or additional DIN rail space is needed.

Q: What is the power supply requirement, and does my existing bus support it?
The module operates from 20–35 V DC supplied via the KFD2-EB2 or KSD2-GW power bus. If your cabinet already uses one of these bus systems, no additional power wiring is required. If the cabinet uses discrete 24 V DC wiring to each module, the same 24 V supply is compatible.

Q: Can the KFD2-STC5-1 replace isolators from other manufacturers?
In many cases, yes — provided the replacement isolator meets the same functional specification (2-wire HART, 4–20 mA, DIN rail, 24 V DC bus). Wiring terminal assignments may differ between manufacturers, so a terminal-by-terminal comparison against the original datasheet is recommended before re-terminating field cables.

Q: What commissioning steps are required after installation?
After physical installation and wiring verification, power up the module and confirm the green LED status indicator is active. Perform a loop check by injecting a known 4–20 mA signal at the field terminals and verifying the corresponding reading at the DCS/PLC analog input. If HART diagnostics are used, connect a HART communicator or modem and confirm device identification. Total commissioning time for a trained technician is typically 15–30 minutes per channel.

Warranty Assurance

Every KFD2-STC5-1 unit shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes a functional verification check covering supply voltage acceptance, 4–20 mA signal transmission accuracy, and HART communication pass-through integrity. Units that do not pass this check are not shipped.

In the event of a warranty claim, our after-sales team responds within 1 business day. Confirmed defective units are replaced and dispatched within 5 business days. Return shipping for warranty replacements is coordinated by TOPNLMS at no additional cost to the buyer.

For procurement teams requiring documentation, a test report and certificate of conformity can be provided upon request at the time of order. Lead time for in-stock units is typically 3–7 business days to most destinations, with express options available for urgent plant shutdowns or unplanned failures.

We maintain buffer stock of KFD2-STC5-1 and related KFD2-series modules to support emergency replacement orders. If your plant operates a critical loop that cannot tolerate extended downtime, contact us directly to confirm availability and arrange priority dispatch.
