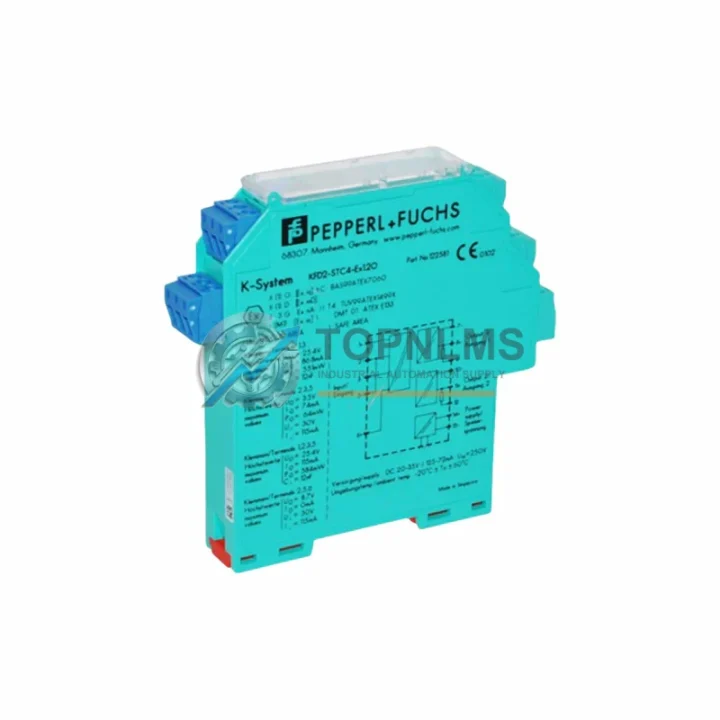

PEPPERL+FUCHS KFD2-STC4-EX1.2O Replacement for KFD2 Series: Seamless Transition & Legacy System Compatibility

When your existing PEPPERL+FUCHS KFD2-STC4-EX1.2O reaches end-of-service life or becomes unavailable through standard distribution channels, the migration path must be carefully planned to avoid unplanned downtime in hazardous-area installations. The KFD2-STC4-EX1.2O is a dual-output, 4-20mA HART-compatible intrinsic safety isolator from the PEPPERL+FUCHS KFD2 Series, designed to power and condition signals from field transmitters located in Zone 0, Zone 1, and Zone 2 explosive atmospheres. Its role in process control loops — bridging Ex-zone field instruments to safe-area DCS or PLC inputs — makes it a critical component in refinery, chemical, and offshore automation architectures.

This replacement and upgrade solution is stocked and tested at our Xiamen facility, ready for immediate dispatch to minimize your plant’s exposure to instrument loop downtime. Whether you are replacing a single failed unit or executing a planned migration of an entire marshalling cabinet, our team can support phased procurement, pre-shipment functional verification, and documentation packages aligned with your site’s change-management requirements.

The KFD2-STC4-EX1.2O operates on 24 VDC bus power supplied via the PEPPERL+FUCHS Power Rail system, which means it integrates directly into existing KFD2-series DIN-rail assemblies without requiring rewiring of the power distribution backbone. Field wiring from HART-enabled pressure transmitters, temperature transmitters, or flow transmitters connects identically to the original unit, preserving your existing cable schedules and loop drawings. The dual 4-20mA output channels allow simultaneous signal distribution to a primary DCS analog input card and a secondary safety instrumented system (SIS) input — a topology commonly used in SIL-rated loops where redundant signal paths are mandated by IEC 61511.

During a typical retrofit project, engineers replacing legacy KFD2-STC4-EX1 (single-output predecessor) units with the KFD2-STC4-EX1.2O gain the additional output channel without any change to the DIN-rail footprint or terminal block layout. This is particularly valuable in congested marshalling cabinets where physical space is constrained and adding a second isolator is not feasible. The KFD2-STC4-EX1.2O occupies the same 12.5 mm housing width as other KFD2 Series modules, ensuring compatibility with existing KFD2-MT2-EX1.12 segment terminators and KFD2-EB2 expansion bases already installed in the cabinet.

HART communication transparency is maintained across both output channels, allowing asset management systems such as Emerson AMS Device Manager or Yokogawa PRM to continue polling field device diagnostics without reconfiguration. The isolator passes HART FSK signals superimposed on the 4-20mA loop, which means that during migration, your existing HART multiplexer infrastructure — including PEPPERL+FUCHS HiDMux2700 or similar HART infrastructure components — remains fully operational. No firmware updates or HART master reconfiguration are required when substituting the KFD2-STC4-EX1.2O on a like-for-like basis.

For sites transitioning from older galvanic isolation barriers such as the MTL4541 or MTL4544 series to the PEPPERL+FUCHS KFD2 platform, the KFD2-STC4-EX1.2O provides a well-documented migration path. Terminal assignments differ between platforms, so loop drawings must be updated, but the electrical parameters — input voltage range, output current accuracy, and HART impedance characteristics — are compatible with the same field transmitters. Our technical team can provide terminal mapping tables and wiring conversion guides upon request.

Power consumption per module is 0.9 W from the 24 VDC Power Rail, which is relevant when calculating total cabinet power budgets during a large-scale replacement campaign. If your existing KFD2-CD2-Ex1.32 power conditioner is already loaded near capacity, adding replacement KFD2-STC4-EX1.2O units may require a power budget review. We can supply KFD2-CD2-Ex1.32 power conditioners and KFD2-EB2 expansion bases as companion items to support full cabinet refurbishment projects.

Commissioning the KFD2-STC4-EX1.2O requires no external configuration tools. The module is factory-set for 4-20mA operation and HART pass-through, and the green LED status indicator confirms correct power rail connection and loop integrity immediately upon installation. For sites using PEPPERL+FUCHS FieldConnex segment couplers or Advanced Diagnostics Modules in FOUNDATION Fieldbus segments, the KFD2-STC4-EX1.2O serves the conventional 4-20mA loops running in parallel with FF segments, maintaining a hybrid architecture during phased digital migration programs.

Procurement lead times for genuine PEPPERL+FUCHS KFD2-STC4-EX1.2O units from authorized distributors can extend to 8–16 weeks during periods of supply chain constraint. Our Xiamen inventory is maintained specifically to support urgent replacement requirements, with same-day dispatch available for in-stock units. All units are shipped with original manufacturer packaging, CE and ATEX certification documentation, and a TOPNLMS inspection report confirming pre-shipment electrical verification.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete KFD2-STC4-EX1.2O migration typically involves more than a single module swap. In most marshalling cabinet upgrades, the KFD2-STC4-EX1.2O is installed alongside KFD2-EB2 expansion bases, which provide the mechanical DIN-rail mounting and Power Rail bus connection for groups of up to 32 KFD2 Series modules. If the existing expansion base is damaged or corroded, replacing it as part of the same maintenance window eliminates a future failure point.

Power distribution for the KFD2 segment is managed by the KFD2-CD2-Ex1.32 power conditioner, which converts 230/115 VAC or 24 VDC supply to the regulated 24 VDC Power Rail voltage. During a cabinet refurbishment involving multiple KFD2-STC4-EX1.2O replacements, verifying the power conditioner’s load capacity is a mandatory step. We stock KFD2-CD2-Ex1.32 units for immediate dispatch as companion items.

For temperature measurement loops being migrated in the same project, the KFD2-HLC-Ex1.D head-mounted transmitter or KFD2-UT2-Ex2 universal temperature converter are commonly installed in parallel with KFD2-STC4-EX1.2O pressure isolators within the same marshalling cabinet, sharing the same Power Rail segment. Ensuring consistent firmware and hardware generations across the KFD2 population simplifies long-term maintenance.

HART communication infrastructure supporting the KFD2-STC4-EX1.2O loops often includes PEPPERL+FUCHS HiDMux2700 HART multiplexers or similar segment-based HART masters. These devices connect to the safe-area terminals of the KFD2 isolators and poll field device variables for asset management. No changes to the multiplexer configuration are required when replacing like-for-like KFD2-STC4-EX1.2O units.

In hybrid control architectures where FOUNDATION Fieldbus H1 segments coexist with conventional 4-20mA loops, PEPPERL+FUCHS FieldConnex Power Hubs and Segment Protectors manage the FF side while KFD2-STC4-EX1.2O isolators handle the conventional loops. Both subsystems can share the same DIN-rail cabinet space, and our team can supply both product families to support integrated procurement for mixed-protocol migration projects.

For sites requiring signal conditioning beyond simple isolation — such as square-root extraction, signal splitting, or range conversion — the KFD2-STC4-EX1.2O can be complemented by KFD2-SR2-Ex2.W signal conditioners installed on adjacent DIN-rail positions. This combination is frequently used in flow measurement loops where the field transmitter output requires linearization before reaching the DCS analog input card.

Retrofit Guidance FAQ

Q: Can I replace a KFD2-STC4-EX1 (single output) with the KFD2-STC4-EX1.2O without rewiring the field side?
A: Yes. The field-side terminal assignments are identical. The only change required is connecting the second output channel (terminals 6 and 7) to the additional DCS or SIS input. Existing field wiring from the hazardous-area transmitter is unchanged.

Q: Does the KFD2-STC4-EX1.2O require any configuration or calibration after installation?
A: No. The module is factory-configured for 4-20mA operation and HART pass-through. No DIP switches, potentiometers, or software tools are required for standard loop replacement. The green LED confirms correct operation immediately upon Power Rail energization.

Q: Is HART communication maintained on both output channels simultaneously?
A: Yes. HART FSK signals are passed transparently on both 4-20mA output channels, allowing a HART master connected to either output to communicate with the field device. This supports dual-master architectures where both a DCS HART card and a handheld communicator (e.g., Emerson 475 Field Communicator) are used concurrently.

Q: What is the physical installation space requirement?
A: The KFD2-STC4-EX1.2O occupies 12.5 mm of DIN-rail width, identical to all KFD2 Series modules. No additional rail space is required compared to the single-output predecessor. The module snaps directly onto the KFD2-EB2 expansion base without tools.

Q: Can this unit replace MTL or R. Stahl intrinsic safety barriers in an existing installation?
A: The KFD2-STC4-EX1.2O can functionally replace equivalent MTL4541B or R. Stahl IS barriers in terms of electrical performance, but terminal assignments differ. A wiring conversion is required, and loop drawings must be updated. We recommend a pilot replacement on one loop before committing to a full cabinet migration.

Q: What certifications does the unit carry?
A: The KFD2-STC4-EX1.2O carries ATEX, IECEx, and cULus certifications for use in Zone 0, Zone 1, and Zone 2 hazardous areas. Full certification documentation is included with each shipment.

Warranty Assurance

Every KFD2-STC4-EX1.2O unit dispatched by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a pre-shipment electrical verification procedure at our Xiamen facility, confirming correct 4-20mA output linearity, HART signal transparency, and Power Rail current consumption within manufacturer specifications. A TOPNLMS inspection report is included with each shipment.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 3 business days of claim confirmation, minimizing the impact on your plant’s spare parts inventory. Our after-sales response team is reachable via email at [email protected] and by phone at +86 18359293191 during business hours (CST, Monday–Friday).

For large-volume procurement or project-based orders requiring staggered delivery schedules, TOPNLMS can hold allocated stock against a purchase order, ensuring availability across multi-phase installation programs. We issue commercial invoices, packing lists, and certificate of origin documentation suitable for customs clearance in major import markets.

Our procurement guarantee: if a unit fails within the 12-month warranty period due to manufacturing defect under normal operating conditions, we replace it at no additional cost including outbound shipping. This commitment is designed to give plant engineers and procurement managers the confidence to specify TOPNLMS as a reliable source for critical automation spare parts.
