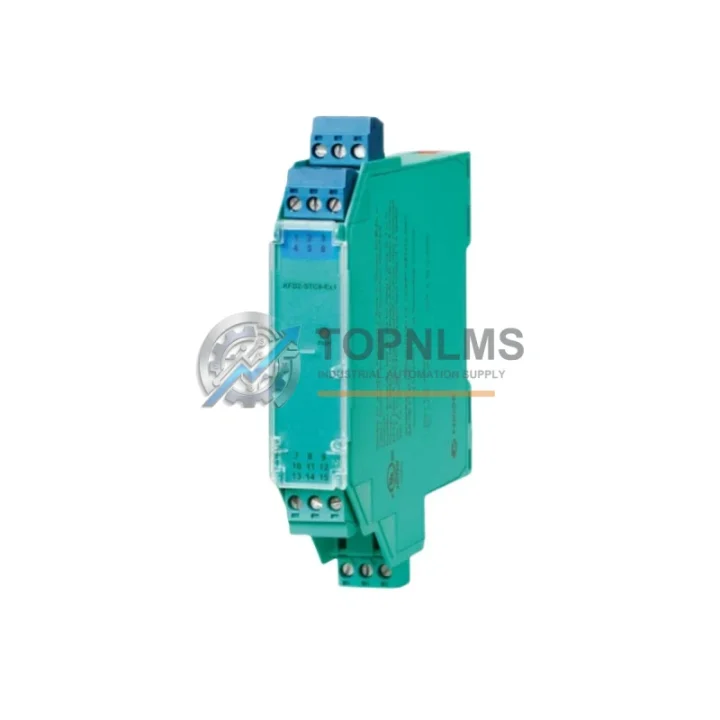

Pepperl+Fuchs KFD2-STC5-EX1 Ruggedized Galvanic Isolator Module

Product Overview

Pepperl+Fuchs KFD2-STC5-EX1 Ruggedized Galvanic Isolator Module for Harsh Environments

The Pepperl+Fuchs KFD2-STC5-EX1 is a high-integrity galvanic isolator and 2-wire HART transmitter power supply engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed within Pepperl+Fuchs’ proven KFD2 Series — part of the SMART Fieldbarrier and K-System DIN-rail signal conditioning platform — this module delivers robust galvanic isolation between hazardous-area field instruments and safe-area control systems, ensuring personnel safety and signal integrity simultaneously.

Whether deployed in oil and gas wellhead control panels, chemical plant distributed control systems, offshore platform junction boxes, or power generation facilities, the KFD2-STC5-EX1 maintains stable 4–20 mA signal transmission and full HART protocol pass-through under conditions of extreme temperature cycling, high ambient humidity, pervasive airborne particulates, mechanical vibration, and intense electromagnetic interference. Its galvanic isolation barrier eliminates ground loops and protects upstream PLC and DCS input cards from transient voltage spikes originating in Zone 0, Zone 1, and Zone 2 hazardous locations.

Rugged Specifications Table

Comprehensive Protection Solutions

In a fully integrated safety-instrumented control architecture, the KFD2-STC5-EX1 operates as the critical signal conditioning bridge between hazardous-area transmitters and the safe-area control layer. When paired with a Siemens S7-300 or S7-400 PLC analog input module — such as the SM 331 or SM 334 — the galvanic isolation provided by the KFD2-STC5-EX1 prevents common-mode noise and ground potential differences from corrupting 4–20 mA readings, which is essential for accurate process variable monitoring in continuous production lines.

In DCS environments built on platforms such as the Honeywell Experion PKS or ABB System 800xA, the KFD2-STC5-EX1 slots into the field junction cabinet alongside other K-System modules — including the KFD2-SCD-EX1.LK solenoid driver and the KFD2-UT2-EX2 universal temperature converter — to form a cohesive, high-density signal conditioning rail. This modular approach allows maintenance teams to hot-swap individual isolator modules without interrupting adjacent channels, dramatically reducing mean time to repair (MTTR) in 24/7 production facilities.

For installations requiring functional safety compliance to IEC 61508 or IEC 61511, the KFD2-STC5-EX1 is frequently deployed alongside Pepperl+Fuchs F*-System safety barriers and HIMA HIMatrix safety controllers, where its certified galvanic isolation contributes to the overall SIL 2 loop integrity. In power distribution panels, it works in concert with Phoenix Contact QUINT-series industrial power supplies and Weidmüller ACT20P signal conditioners to maintain clean, regulated loop power even when upstream supply voltage fluctuates due to heavy motor loads or generator switching transients.

Communication-intensive installations benefit from the KFD2-STC5-EX1’s transparent HART pass-through, which allows Emerson AMS Device Manager or Yokogawa FieldMate asset management software to communicate directly with field transmitters — such as Rosemount 3051 pressure transmitters or Endress+Hauser Promag flowmeters — without removing the isolator from the signal path. This capability is indispensable for predictive maintenance programs in refineries and petrochemical complexes where unplanned shutdowns carry significant financial and safety consequences.

Terminal connectivity within the control cabinet is typically managed through Wago 750-series or Phoenix Contact Combicon terminal blocks, which mate cleanly with the KFD2-STC5-EX1’s screw-clamp field terminals. For EMI-intensive environments such as arc furnace control rooms or variable-frequency drive (VFD) motor control centers, supplementary Pepperl+Fuchs surge protection devices from the VAD/VAG series are recommended upstream of the isolator to guard against transient overvoltages propagating from the field cable.

Application in Critical Infrastructure

In upstream oil and gas applications — wellhead automation, FPSO topsides, and pipeline SCADA systems — the KFD2-STC5-EX1 is a standard component in Ex d and Ex e junction boxes, isolating pressure, temperature, and flow transmitters located in Zone 1 classified areas from the safe-area PLC marshalling cabinet. Its slim 12.5 mm profile allows high-channel-count installations in space-constrained offshore enclosures, while its wide operating temperature range accommodates both arctic and tropical deployment conditions.

In chemical and pharmaceutical manufacturing, where process safety management (PSM) regulations mandate strict segregation of hazardous-area wiring, the KFD2-STC5-EX1 provides the certified galvanic barrier required by OSHA PSM and EU ATEX Directive 2014/34/EU. Batch reactors, distillation columns, and solvent storage facilities rely on this module to maintain continuous level and temperature monitoring without compromising the intrinsic safety of the field instrument loop.

In power generation and transmission substations, the KFD2-STC5-EX1 isolates 4–20 mA signals from turbine control systems and generator excitation monitoring circuits, preventing high-voltage transients from reaching sensitive PLC analog input cards. Its certified isolation voltage of 1.5 kV AC provides a substantial safety margin in environments where ground potential differences between control room and switchyard can reach several hundred volts.

In water and wastewater treatment facilities, where high ambient humidity, chlorine-laden atmospheres, and continuous pump cycling create challenging electromagnetic environments, the KFD2-STC5-EX1 ensures reliable signal transmission from submersible level sensors and flow meters installed in wet wells and pump stations classified as Zone 1 or Zone 2 hazardous areas. Its conformal-coated PCB construction resists moisture ingress and corrosive gas attack, extending service life well beyond that of non-industrial-grade alternatives.

In mining and metallurgy — including coal preparation plants, copper smelters, and steel rolling mills — the module withstands the severe mechanical vibration generated by crushers, conveyors, and rolling equipment, as well as the intense electromagnetic interference produced by large DC drive systems and induction furnaces. Maintenance engineers in these facilities value the KFD2-STC5-EX1’s plug-in terminal design, which allows rapid replacement of a failed isolator channel during a scheduled maintenance window without disturbing field wiring.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, contact [email protected] with the order number and a description of the fault. We will arrange return shipping, perform functional verification, and dispatch a replacement or repaired unit within 5 business days of receipt.

Q2: How is each KFD2-STC5-EX1 unit tested before shipment?
Every unit undergoes a multi-point pre-shipment inspection: visual inspection for physical damage, power-on functional test verifying 4–20 mA loop continuity and HART communication pass-through, isolation resistance measurement, and label/marking verification against the original Pepperl+Fuchs datasheet. Units that fail any test criterion are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the KFD2-STC5-EX1 compatible with my existing K-System DIN rail bus and power feed module?
Yes. The KFD2-STC5-EX1 is fully compatible with the Pepperl+Fuchs K-System power rail (KFD2-PW-Ex1.D and KFD2-PW-Ex2.D) and can be installed on any standard 35 mm DIN rail alongside other KFD2-series modules without requiring additional adapters. It is also electrically compatible with third-party 24 V DC loop power supplies that meet the 20–35 V DC input specification.

Q4: Can you guarantee long-term supply and cross-reference support for replacement?
We maintain dedicated stock of KFD2-STC5-EX1 and related K-System modules to support ongoing MRO (maintenance, repair, and operations) procurement. For facilities requiring a validated replacement for an obsolete or discontinued isolator from another manufacturer, our technical team can provide cross-reference analysis and compatibility confirmation before order placement. Contact us at [email protected] or call +86 18359293191 for assistance.
