Pepperl+Fuchs KFD2-STC4-1 Replacement for KFD2 Series: Seamless Migration & Compatibility Upgrade

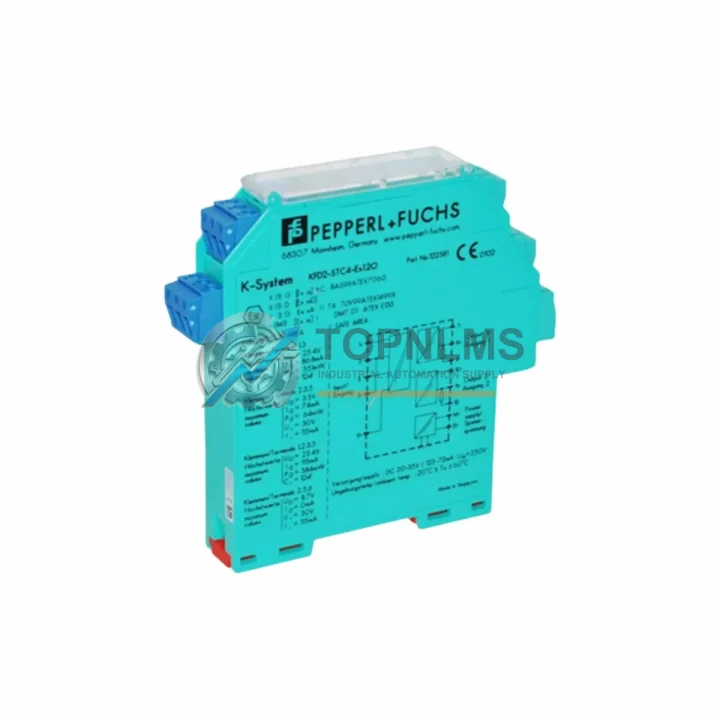

The Pepperl+Fuchs KFD2-STC4-1 is a 2-wire isolated HART transmitter power supply designed for intrinsically safe Ex ia IIC applications in Zone 0/1/2 hazardous areas. As legacy field instruments and aging DIN rail barrier assemblies reach end-of-service life, the KFD2-STC4-1 serves as the authoritative drop-in replacement and upgrade solution for engineers managing control system modernization projects across process industries including oil & gas, chemical, pharmaceutical, and water treatment.

When your existing KFD2-STC4-Ex1 or earlier KFD0-series barriers are flagged for replacement during a scheduled turnaround or unplanned failure event, the KFD2-STC4-1 delivers a smooth transition with no rewiring of the field side, no changes to the 4–20 mA loop, and full backward compatibility with HART protocol revision 5, 6, and 7 devices. Engineers migrating from older Pepperl+Fuchs KFD2-STC4-Ex1.2O or KFD2-STC4-1.2O variants will find the terminal assignment, DIN rail footprint, and power consumption profile virtually identical, enabling a like-for-like swap during a maintenance window without modifying the marshalling cabinet layout or the associated cable schedule.

In distributed control system (DCS) environments where the KFD2-STC4-1 interfaces with Emerson DeltaV, Honeywell Experion, Yokogawa CENTUM VP, or ABB System 800xA, the barrier’s passive HART signal transparency ensures that HART pass-through to the DCS HART multiplexer or asset management system remains uninterrupted post-replacement. Field devices such as Rosemount 3051 pressure transmitters, Endress+Hauser Promag flowmeters, or Yokogawa EJA series transmitters continue to communicate without reconfiguration of the host system’s device descriptor (DD) library.

For projects involving partial migration of a legacy Pepperl+Fuchs KFD2 rack system, the KFD2-STC4-1 installs directly into existing KFD2 series power rail assemblies such as the KFD2-GUT-Ex1.D or KFD2-GUT-Ex1.D.2 power bus, sharing the 24 VDC supply rail with adjacent KFD2-SCD-Ex1.LK signal conditioners, KFD2-UT2-Ex1 universal transmitter power supplies, and KFD2-SR2-Ex2.W.SM solenoid driver modules. This eliminates the need to replace the entire barrier assembly or rewire the power distribution within the control cabinet, significantly reducing both labor hours and the risk of introducing wiring errors during the retrofit.

Physical installation is straightforward: the KFD2-STC4-1 snaps onto standard 35 mm DIN rail (EN 60715) and occupies a 20 mm slot width, consistent with all KFD2 series modules. The screw-type field terminals accept 0.14–2.5 mm² conductors, and the control-side terminals are compatible with the same wire gauges used in the original installation. No additional terminal adapters or jumper modifications are required when replacing a failed unit in an existing marshalling panel.

Power supply requirements are met by any 20–30 VDC source compliant with the KFD2 series specification, including the Pepperl+Fuchs KFD2-GUT-Ex1.D power rail or an external 24 VDC SELV supply. In installations where the power rail is shared with KFD2-SR2 or KFD2-UT2 modules, the KFD2-STC4-1’s typical current consumption of 35 mA at 24 VDC allows straightforward load calculation to confirm the existing power supply capacity is sufficient without requiring a supply upgrade.

For sites transitioning from conventional 4–20 mA point-to-point wiring to HART-enabled asset management, the KFD2-STC4-1 supports simultaneous analog signal transmission and HART digital communication on the same two-wire loop. This makes it the preferred barrier choice when deploying Pepperl+Fuchs WirelessHART adapters, Emerson 475 Field Communicators, or Fluke 789 ProcessMeter tools for in-situ calibration and diagnostics without breaking the loop or interrupting the process measurement.

Procurement teams evaluating the KFD2-STC4-1 as a stocking spare for critical process loops should note that the module carries full ATEX and IECEx certification (Ex ia IIC T4 Ga/Gb), FM approval for Class I Division 1 Groups A–D, and NEPSI certification for the Chinese market (Ex ia IIC T4), making it suitable for global plant standardization programs. The CE mark and RoHS compliance status support procurement under EU machinery directive and environmental compliance frameworks.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete KFD2-STC4-1 migration typically involves coordinating several interdependent components within the same control cabinet or marshalling panel. The KFD2-GUT-Ex1.D power bus rail provides the shared 24 VDC supply backbone for the entire KFD2 barrier row, and should be inspected for contact wear when replacing multiple modules simultaneously. Adjacent KFD2-UT2-Ex1 universal transmitter power supplies serving RTD or thermocouple inputs may also be due for replacement on the same maintenance cycle, allowing the full barrier row to be refreshed in a single planned outage.

On the field side, KFD2-SCD-Ex1.LK signal conditioners are commonly installed alongside the KFD2-STC4-1 in mixed-signal marshalling panels where both HART transmitters and discrete on/off signals share the same DIN rail assembly. For installations requiring galvanic isolation of analog outputs back to the DCS, KFD2-VR4-Ex1.26.260 voltage repeaters or KFD2-CR-Ex1.30.145 current repeaters are frequently specified as companion modules.

Communication infrastructure upgrades often accompany barrier replacements. Where HART asset management is being introduced for the first time, a Pepperl+Fuchs HiDMux2700 HART multiplexer or compatible third-party HART modem connects to the control-side terminals of the KFD2-STC4-1 to enable remote device configuration and diagnostics without field access. For sites standardizing on PROFIBUS PA or FOUNDATION Fieldbus, the KFD2-STC4-1 can coexist in the same cabinet with Pepperl+Fuchs FieldConnex segment couplers and power conditioners serving the fieldbus segments.

In control cabinets where space is constrained, the 20 mm slim profile of the KFD2-STC4-1 allows high-density packing alongside KFD2-SR2-Ex2.W.SM solenoid drivers and KFD2-DWB-Ex1.D.2 discrete input modules without requiring cabinet expansion. Signal isolation between channels is maintained by the module’s internal galvanic isolation barrier, eliminating the need for external signal isolators on the control side.

Retrofit Guidance FAQ

Q: Can I replace a KFD2-STC4-Ex1 with a KFD2-STC4-1 without rewiring?
A: Yes. The terminal assignment and DIN rail footprint are identical. Remove the old module, snap in the KFD2-STC4-1, and reconnect the same conductors to the same terminal positions. No field-side rewiring is required.

Q: Will the KFD2-STC4-1 work with my existing HART field devices?
A: Yes. The KFD2-STC4-1 is transparent to HART protocol revisions 5, 6, and 7. All HART commands, device variables, and diagnostic messages pass through without modification, maintaining full compatibility with your DCS HART multiplexer or handheld communicator.

Q: Does the KFD2-STC4-1 require any DCS configuration changes after replacement?
A: No DCS configuration changes are required for a like-for-like barrier replacement. The 4–20 mA signal range, loop resistance, and HART communication behavior are preserved. If you are simultaneously upgrading from conventional to HART-enabled asset management, the DCS HART interface may require device descriptor (DD) file updates for newly connected field devices, but this is independent of the barrier replacement.

Q: What is the maximum loop resistance supported?
A: The KFD2-STC4-1 provides a minimum terminal voltage of 16 V at 20 mA to the field device, supporting loop resistances up to approximately 400 Ω depending on the field device’s minimum operating voltage. Verify the field device’s minimum voltage specification against the loop resistance budget before installation.

Q: Can the KFD2-STC4-1 be installed in Zone 0 hazardous areas?
A: The KFD2-STC4-1 is installed in the safe area (control room or pressurized cabinet). The connected field device may be located in Zone 0, 1, or 2 (or Class I Division 1/2) provided the field device’s entity parameters are compatible with the KFD2-STC4-1’s output parameters as specified in the ATEX/IECEx certificate.

Q: Is the KFD2-STC4-1 compatible with the KFD2-GUT-Ex1.D power rail?
A: Yes. The KFD2-STC4-1 is fully compatible with the KFD2-GUT-Ex1.D and KFD2-GUT-Ex1.D.2 power bus rails. It draws approximately 35 mA at 24 VDC from the shared supply rail.

Warranty Assurance

Every KFD2-STC4-1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including loop current accuracy check, HART communication pass-through test, isolation resistance measurement, and visual inspection of terminal blocks and housing integrity. Units that do not meet Pepperl+Fuchs factory specifications are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical team is available to assist with installation verification, compatibility confirmation, and troubleshooting via email at [email protected] or by phone at +86 18359293191. Typical response time for warranty inquiries is within 1 business day.

Expedited shipping is available for emergency replacement orders where process downtime is a critical concern. Stock availability is confirmed at time of order, and most orders ship from our Xiamen warehouse within 1–3 business days. Export documentation including commercial invoice, packing list, and certificate of origin is provided for all international shipments.

For procurement teams requiring approved vendor qualification, TOPNLMS can provide product datasheets, ATEX/IECEx certificates, FM approval documents, and NEPSI certificates upon request to support your internal purchasing approval process.
