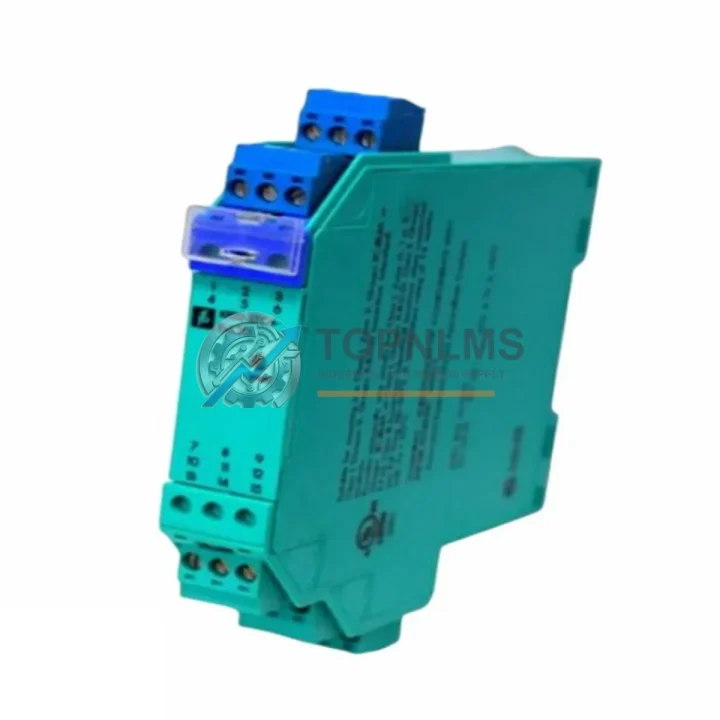

Pepperl+Fuchs KFD2-STC4-EX1.20 Ruggedized Transmitter Power Supply

Product Overview

Pepperl+Fuchs KFD2-STC4-EX1.20 Ruggedized Transmitter Power Supply: Industrial Resilience for Harsh Environments

The Pepperl+Fuchs KFD2-STC4-EX1.20 is a single-channel SMART transmitter power supply engineered for continuous, reliable operation in the most demanding industrial environments. Designed as part of the proven KFD2 Series from Pepperl+Fuchs — a global leader in explosion protection and sensor technology — this module delivers galvanic isolation, intrinsic safety certification, and HART protocol transparency in a compact DIN rail form factor. Whether deployed in oil and gas processing, chemical plants, water treatment facilities, or heavy metallurgical operations, the KFD2-STC4-EX1.20 is built to perform where failure is not an option.

Industrial field environments impose relentless stress on control system components. Temperature extremes, high humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI) from variable frequency drives, large motors, and high-voltage switching equipment can degrade signal integrity and compromise safety. The KFD2-STC4-EX1.20 addresses each of these challenges through robust hardware design, certified galvanic isolation, and a wide operating temperature range — ensuring that 4–20 mA signals from field transmitters reach the DCS or PLC control layer with full accuracy and without ground loop interference.

Rugged Specifications Table

Comprehensive Protection Solutions

In modern industrial control architectures, the KFD2-STC4-EX1.20 does not operate in isolation — it is a critical link in a chain of protection and control components that together ensure system-wide safety and uptime. When integrated into a Pepperl+Fuchs KFD2 Series barrier system, it works alongside modules such as the KFD2-STC4-EX1 (standard version without HART) and the KFD2-UT2-EX1 universal transmitter power supply to provide flexible, scalable signal conditioning across multi-loop field installations.

In hazardous zone applications, the KFD2-STC4-EX1.20 is frequently paired with Pepperl+Fuchs KFD2-SR2-EX1.W solenoid driver modules and KFD2-CD-EX1.32 namur signal conditioners to form a complete intrinsic safety barrier assembly within a single marshalling cabinet. The galvanic isolation it provides is especially valuable when interfacing with Siemens ET 200SP or ET 200M distributed I/O systems, where ground potential differences between field and control room can introduce measurement errors or trigger nuisance trips in safety instrumented systems (SIS).

For installations using Emerson DeltaV SIS or Honeywell Safety Manager platforms, the KFD2-STC4-EX1.20’s SIL 2 capability ensures it can be incorporated into safety loops without compromising the overall SIL rating of the safety function. It is also fully compatible with ABB S800 I/O modules and Yokogawa CENTUM VP field control stations, making it a versatile choice for multi-vendor DCS environments.

On the power supply side, the module integrates seamlessly with Pepperl+Fuchs KF-CP power rail systems and standard 24 V DC industrial power supplies such as the Phoenix Contact QUINT series or Siemens SITOP PSU300S, ensuring stable loop power even under fluctuating plant load conditions. In control cabinets where EMI is a concern — particularly near Siemens SINAMICS G120 or ABB ACS880 variable frequency drives — the KFD2-STC4-EX1.20’s galvanic isolation acts as an effective barrier against conducted interference, protecting the integrity of 4–20 mA and HART signals routed to the control system.

Application in Critical Infrastructure

The KFD2-STC4-EX1.20 is a trusted component across the full spectrum of critical industrial infrastructure. In upstream oil and gas operations — wellhead control panels, separator skids, and gas compression stations — it conditions signals from pressure transmitters and temperature sensors located in Zone 1 and Zone 2 classified areas, ensuring that process data reaches the safety PLC or DCS without risk of ignition or signal degradation.

In petrochemical and refinery environments, where continuous production lines operate 24/7 under elevated temperatures and corrosive atmospheres, the module’s wide operating temperature range and robust galvanic isolation make it a preferred choice for long-term, maintenance-free deployment. Operators in these facilities rely on the KFD2-STC4-EX1.20 to maintain accurate flow, level, and pressure measurements that feed directly into advanced process control (APC) and safety instrumented system (SIS) logic.

Mining and mineral processing plants present some of the harshest conditions for electronic equipment — high vibration from crushers and conveyors, heavy dust loading, and wide ambient temperature swings. The KFD2-STC4-EX1.20’s DIN rail mounting and compact 20 mm housing allow it to be installed in ruggedized field junction boxes or centralized marshalling rooms, maintaining signal fidelity from sensors monitoring conveyor belt loads, slurry pump pressures, and flotation cell levels.

In power generation and grid infrastructure — including coal, gas, and renewable energy plants — the module supports reliable monitoring of turbine inlet temperatures, boiler drum levels, and generator cooling system pressures. Its SIL 2 rating makes it suitable for integration into turbine protection systems and emergency shutdown (ESD) loops, where signal accuracy and isolation are non-negotiable.

Water and wastewater treatment facilities benefit from the KFD2-STC4-EX1.20’s resistance to high humidity and its ability to interface with a wide range of field transmitters — from pH and dissolved oxygen sensors to flow meters and level transducers — across geographically distributed pump stations and treatment basins. In metallurgical and steel production environments, the module withstands the intense electromagnetic interference generated by arc furnaces and induction heating systems, ensuring that process control signals remain stable throughout the heat cycle.
