PEPPERL+FUCHS KFD2-SOT3-EX2 Replacement for K-System

Product Overview

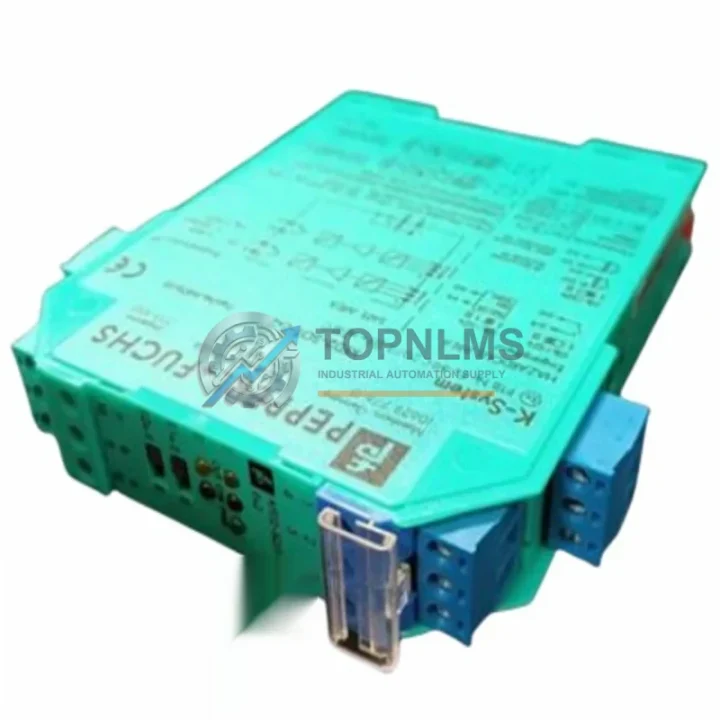

PEPPERL+FUCHS KFD2-SOT3-EX2 Replacement for K-System: Seamless Transition from Legacy Ex Barriers

The PEPPERL+FUCHS KFD2-SOT3-EX2 is a dual-channel switch amplifier designed for the K-System DIN rail platform, providing intrinsically safe signal conditioning between hazardous-area NAMUR sensors and safe-area control systems. For facilities operating aging or discontinued Ex barrier modules — including earlier single-channel KFD0-SOT2-Ex2 units or legacy relay output amplifiers — the KFD2-SOT3-EX2 offers a direct, drop-in upgrade path with minimal rewiring and zero PLC program changes in most configurations.

Industrial plants running continuous process control, chemical dosing, or oil & gas wellhead monitoring frequently encounter the challenge of sourcing replacement parts for K-System barriers that have reached end-of-life. The KFD2-SOT3-EX2 addresses this directly: it accepts standard NAMUR-compliant proximity switches and two-wire sensors from Zone 0, 1, or 2 hazardous areas, conditions the signal, and delivers a clean transistor output to the safe-side PLC or DCS I/O card. Because it occupies a standard K-System DIN rail slot and uses the same KSD2-GW power rail bus, existing cabinet layouts, terminal assignments, and cable schedules typically require no modification.

Migration projects often involve replacing an entire row of legacy barriers simultaneously. In such scenarios, the KFD2-SOT3-EX2 is commonly deployed alongside the KFD2-SH-EX1 solenoid driver for valve control loops, the KFD2-UT2-EX2 universal transmitter for 4–20 mA analog signals, and the KFD2-CR-EX1.W current repeater for loop-powered transmitters. The shared KSD2-GW segment power coupler supplies all modules on the rail, so adding or replacing individual amplifiers does not interrupt adjacent channels — a critical advantage when minimizing plant downtime during a phased retrofit.

For facilities transitioning from older Siemens ET 200 remote I/O or Honeywell Safety Manager field junction boxes, the KFD2-SOT3-EX2 integrates cleanly into the safe-side I/O layer. Its transistor output is directly compatible with standard 24 V DC digital input cards, including those used in Siemens S7-300, S7-400, and S7-1500 PLC racks, as well as Rockwell ControlLogix and CompactLogix I/O modules. No signal converter or interposing relay is required, which simplifies the control cabinet layout and reduces the component count in the marshalling panel.

Communication protocol compatibility is straightforward: the KFD2-SOT3-EX2 operates as a passive signal conditioner and does not require fieldbus configuration. It is fully transparent to HART pass-through on connected NAMUR loops when used with appropriate HART-capable transmitters. For plants running PROFIBUS PA or Foundation Fieldbus segments in the hazardous area, the KFD2-SOT3-EX2 handles the discrete switching signals on parallel wiring, while dedicated fieldbus segment couplers such as the KFD2-BR-EX1.PA manage the bus topology — both can coexist in the same K-System cabinet without interference.

Physical installation follows the standard K-System rail mounting procedure. The module snaps onto a 35 mm DIN rail and connects to the KSD2-GW power bus via the rear bus connector. Front-face screw terminals accept field wiring up to 2.5 mm², and the compact 12.5 mm width allows high-density packing in marshalling cabinets. When replacing a failed or obsolete barrier in an existing cabinet, the KFD2-SOT3-EX2 can be inserted and wired in under 15 minutes by a qualified instrument technician, with no special tools beyond a flat-blade screwdriver.

For larger system modernization projects — such as migrating from a legacy Foxboro I/A Series or ABB Advant DCS to a modern Emerson DeltaV or Yokogawa CENTUM VP platform — the KFD2-SOT3-EX2 provides a stable, certified interface layer that remains constant even as the control system above it changes. This decoupling of the field wiring layer from the control system layer is a key advantage: field cables, junction boxes, and Ex barrier assignments can be preserved while the DCS I/O cards, controllers, and engineering workstations are fully replaced. The KFD2-VR-EX1.26 valve remote position transmitter and KFD2-SR2-EX2.W switch amplifier with relay output are frequently specified alongside the KFD2-SOT3-EX2 in the same migration bill of materials to cover valve feedback and high-current switching requirements respectively.

Procurement teams evaluating replacement stock should note that the KFD2-SOT3-EX2 is an active production item with consistent lead times. TOPNLMS maintains verified inventory sourced directly from authorized distribution channels, with each unit inspected prior to dispatch. Orders are typically processed and shipped from Xiamen within 1–3 business days, with DHL Express and sea freight options available for international destinations. A certificate of conformity and original manufacturer documentation are included with every shipment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete K-System Ex barrier migration typically involves more than a single module swap. The following components are commonly specified alongside the KFD2-SOT3-EX2 in modernization projects:

• KSD2-GW Segment Power Coupler — Supplies 24 V DC to all K-System modules on the rail segment. Replacing aging power couplers at the same time as the signal amplifiers eliminates a common source of intermittent faults.
• KFD2-UT2-EX2 Universal Transmitter — Handles 4–20 mA analog loops from temperature transmitters and pressure sensors in the same hazardous area, complementing the discrete switching handled by the KFD2-SOT3-EX2.
• KFD2-SH-EX1 Solenoid Driver — Controls 24 V DC solenoid valves from the safe side, typically installed in the same marshalling cabinet row as the switch amplifiers for valve interlock circuits.
• KFD2-CR-EX1.W Current Repeater — Repeats 4–20 mA signals from loop-powered HART transmitters without breaking the loop, useful when the DCS I/O card requires a separate signal path.
• KFD2-SR2-EX2.W Switch Amplifier with Relay Output — Specified when the safe-side load requires a relay contact rather than a transistor output, such as for motor starter interlock circuits or high-current switching.
• KFD2-VR-EX1.26 Valve Remote Position Transmitter — Converts valve position feedback from the hazardous area into a 4–20 mA signal for the DCS, commonly installed alongside switch amplifiers in control valve upgrade packages.
• KFD2-BR-EX1.PA PROFIBUS PA Segment Coupler — Manages PROFIBUS PA fieldbus segments in the hazardous area, coexisting in the same K-System cabinet with discrete signal amplifiers.
• KFD2-HLC-EX1.D.IO HART Loop Converter — Extracts HART diagnostic data from field instruments and forwards it to the asset management system, enabling predictive maintenance without additional field wiring.
• KFD2-WAC2-EX1.D Watchdog and Alarm Module — Monitors power rail status and triggers alarms on module failure, recommended for SIL-rated loops where the KFD2-SOT3-EX2 is part of a safety instrumented function.
• KFD2-GUT-EX1.D Galvanic Isolation Module — Provides additional galvanic isolation for signal loops where ground potential differences between field equipment and the control room create noise or safety concerns.

Retrofit Guidance FAQ

Q: Can I replace a single-channel KFD0-SOT2-Ex2 with the KFD2-SOT3-EX2 without rewiring?
A: In most cases, yes. The KFD2-SOT3-EX2 uses the same K-System DIN rail bus and compatible terminal layout. The second channel can be left unused or connected to an additional sensor. Verify terminal numbering against the existing wiring schedule before installation.

Q: Does the KFD2-SOT3-EX2 require any PLC program changes?
A: No. The module is a passive signal conditioner from the PLC’s perspective. The transistor output presents the same 24 V DC logic signal to the DI card as the replaced module. No function block changes, I/O mapping updates, or tag reassignments are required.

Q: Is the KFD2-SOT3-EX2 compatible with HART-enabled NAMUR sensors?
A: The module passes HART signals transparently on the field wiring side. A HART multiplexer or handheld communicator can access the field device through the barrier without disconnecting the wiring.

Q: What is the physical space requirement in the marshalling cabinet?
A: The KFD2-SOT3-EX2 is 12.5 mm wide. It fits directly into the slot vacated by a replaced K-System module of the same width. If replacing a wider legacy module, adjacent modules may need to be shifted along the DIN rail — no additional cabinet space is required in most standard 19-inch rack or 600 mm wide cabinet installations.

Q: Can this module be used in SIL 2 safety loops?
A: The KFD2-SOT3-EX2 is suitable for use in SIL 2 applications when installed and maintained in accordance with the manufacturer’s functional safety manual. Consult the FMEDA report and safety manual for PFD values and proof test intervals before specifying in a SIL-rated SIF.

Q: How do I verify the module is functioning correctly after installation?
A: Apply power via the KSD2-GW rail and actuate the connected NAMUR sensor. The green LED on the module front face indicates power-on status; the yellow LED indicates output state. Use a HART communicator or multimeter to verify output signal levels before returning the loop to service.

Warranty Assurance

Every KFD2-SOT3-EX2 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes functional verification including power-on testing, output state confirmation, and visual inspection for physical damage. Units are packed in anti-static packaging with original manufacturer labeling and documentation.

In the event of a confirmed defect within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Our after-sales team responds to warranty claims within 1 business day. For urgent plant situations, expedited replacement shipments can be arranged with DHL Express to minimize process downtime.

Procurement documentation provided with each order includes: commercial invoice, packing list, certificate of conformity, and original manufacturer datasheet. Letter of credit, TT, and PayPal payment terms are supported for international buyers.

For volume orders, blanket purchase agreements, and consignment stock arrangements, contact our sales team directly to discuss lead time guarantees and pricing structures suited to MRO and project procurement requirements.
