Pepperl+Fuchs KCD2-SCD-EX1 Replacement for KCD2 Series

Product Overview

Pepperl+Fuchs KCD2-SCD-EX1 Replacement for KCD2 Series: Seamless Transition & Legacy System Compatibility

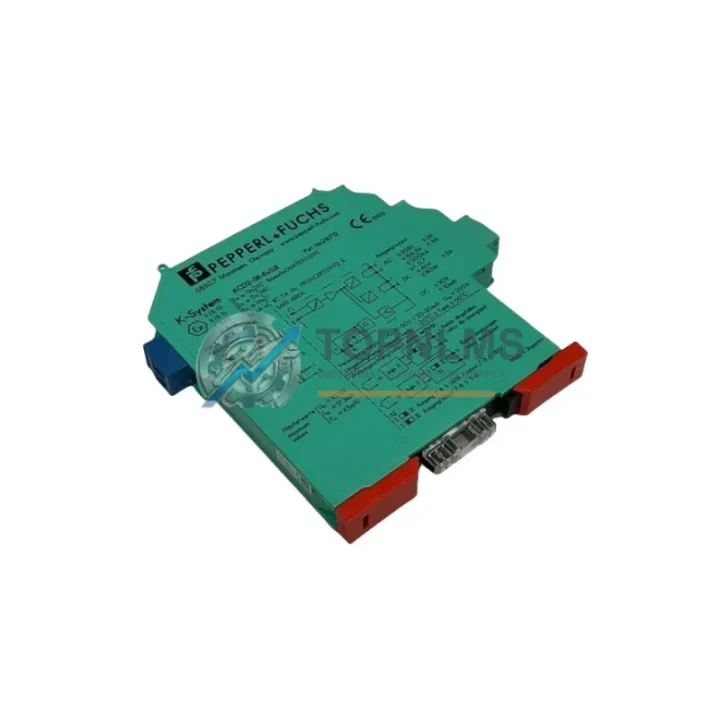

The Pepperl+Fuchs KCD2-SCD-EX1 is a 1-channel isolated solenoid driver barrier designed for intrinsically safe Ex ia IIC applications in Zone 0, 1, and 2 hazardous environments. As aging DCS and safety instrumented systems (SIS) reach end-of-life or face component obsolescence, the KCD2-SCD-EX1 serves as a direct replacement and upgrade solution for facilities operating legacy Pepperl+Fuchs KCD2 Series barriers, older K-System modules, and equivalent third-party isolated barriers from competing platforms.

This product page is designed to support engineers and procurement teams planning a controlled migration from discontinued or aging intrinsic safety barrier assemblies to a fully certified, in-production replacement. Whether you are retrofitting a single DIN rail slot or re-engineering an entire marshalling cabinet, the KCD2-SCD-EX1 delivers backward-compatible wiring geometry, identical terminal assignments, and equivalent ATEX/IECEx certification coverage to minimize engineering rework and commissioning time.

Compatibility Comparison Table

n

Seamless Upgrade Solutions

A successful migration from a legacy intrinsic safety barrier assembly to the KCD2-SCD-EX1 rarely involves a single component swap. In practice, field engineers encounter a cluster of interdependent components that must be evaluated simultaneously to ensure system integrity and regulatory compliance.

When replacing solenoid driver barriers in a marshalling cabinet, the KCD2-UT2-EX1 power bus terminal and KCD2-UT2-EX2 segment coupler are typically assessed alongside the barrier itself, as the KCD2 Series relies on a shared power rail architecture. If the existing power feed module — such as a KFD2-EB2 power supply or a KCD2-PW-1 power conditioner — is also approaching end-of-life, it is operationally prudent to replace both units during the same maintenance window to avoid a second planned outage.

For facilities migrating from older Pepperl+Fuchs KFD2-SCD-EX1 or KFD2-SCD-EX1.2 isolated barriers, the KCD2-SCD-EX1 provides an equivalent functional replacement with an updated certification matrix. The physical DIN rail footprint and terminal block layout are compatible, though engineers should verify the solenoid coil resistance and current draw against the KCD2-SCD-EX1 output specifications before commissioning.

In systems where the solenoid valve is connected to a Siemens S7-300 or S7-400 PLC digital output card via a marshalling panel, the KCD2-SCD-EX1 slots directly into the existing wiring infrastructure. No changes to the PLC program, I/O address mapping, or field cable terminations are required. Similarly, in Emerson DeltaV SIS or Honeywell Safety Manager architectures, the barrier’s hardwired discrete interface remains fully compatible with existing logic solver output modules.

Where HART communication is required for valve diagnostics, the KFD2-HMM-16 HART multiplexer or a compatible HART modem can be integrated upstream of the barrier without affecting the solenoid drive function. For installations requiring signal isolation between the safe-area control system and the hazardous-area field device, a KFD2-SRA-Ex2.W signal conditioner or equivalent galvanic isolator may be added to the marshalling rail.

Facilities upgrading from pneumatic valve islands controlled by older relay-based logic to modern SIS architectures will also need to evaluate the KCD2-SR-EX1 relay module and KCD2-STC-EX1 solenoid test coupler as part of the overall retrofit bill of materials. These components share the same KCD2 backplane and power rail, enabling a modular, phased upgrade approach that minimizes production disruption.

Retrofit Guidance FAQ

Q: Can I replace my existing KFD2-SCD-EX1 with the KCD2-SCD-EX1 without rewiring?
A: In most cases, yes. Both models use the same DIN rail terminal block geometry and identical field-side wiring conventions. Verify the solenoid coil resistance (typically 20–1000 Ω) and supply voltage compatibility before installation. No panel drilling or cable re-termination is required.

Q: Is the KCD2-SCD-EX1 compatible with my existing KCD2 power rail?
A: Yes. The KCD2-SCD-EX1 is designed to operate on the standard KCD2 24 V DC power bus. If your existing power rail is a KCD2-UT2-EX1 or equivalent, the replacement barrier will draw power from the same bus without any modification.

Q: Do I need to update my PLC program or I/O configuration after replacement?
A: No. The KCD2-SCD-EX1 is a hardwired discrete I/O device. It does not require any software configuration, fieldbus addressing, or PLC program modification. The output signal behavior is functionally identical to the legacy barrier it replaces.

Q: What communication protocols does the KCD2-SCD-EX1 support?
A: The standard variant operates as a hardwired discrete output driver. HART signal transparency is available on select sub-variants for valve diagnostic integration. Fieldbus protocols (PROFIBUS, FOUNDATION Fieldbus) are not applicable to this barrier type — those applications require a separate fieldbus coupler module.

Q: How much physical space does the KCD2-SCD-EX1 require in the control cabinet?
A: The KCD2-SCD-EX1 occupies a standard 12.5 mm wide DIN rail slot, identical to the legacy KCD2 Series modules it replaces. No additional cabinet space is required for a like-for-like swap.

Q: Can this barrier be used in SIL 2 safety loops?
A: The KCD2-SCD-EX1 is certified for use in functional safety applications. Consult the product’s Safety Manual and your SIS engineer to confirm SIL suitability for your specific loop architecture and proof-test interval.

Warranty Assurance

Every KCD2-SCD-EX1 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including output continuity, isolation resistance, and supply voltage acceptance testing. Units are shipped in original or equivalent protective packaging with full documentation.

In the event of a confirmed defect within the warranty period, TOPNLMS provides direct replacement support with priority processing for critical infrastructure customers. Our technical team is available to assist with pre-shipment compatibility verification, installation guidance, and post-commissioning troubleshooting. Replacement units for warranty claims are typically dispatched within 3–5 business days of fault confirmation.

For urgent plant maintenance scenarios where downtime cost is a primary concern, TOPNLMS maintains stock of KCD2 Series components to support same-week dispatch from our Xiamen warehouse. Express international shipping options are available to all major industrial regions including Europe, Southeast Asia, the Middle East, and the Americas.
