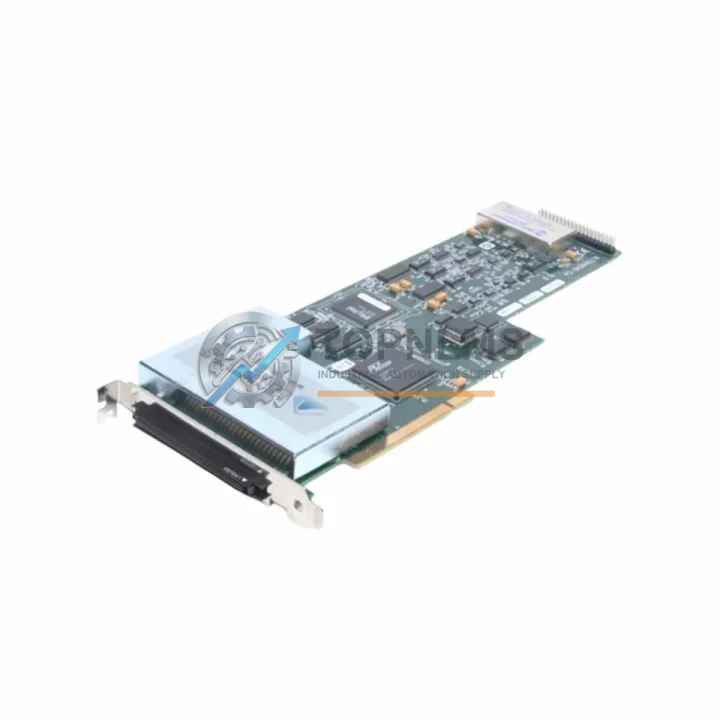

The Measurement Computing PCI-DAS6402/16 is a high-resolution 16-bit, 64-channel analog input data acquisition PCI card engineered for demanding industrial measurement and control environments. As a critical interface between field sensors and host control systems, this DAQ card plays a foundational role in maintaining data integrity, process visibility, and system uptime across manufacturing, laboratory automation, and process control applications. Sourced as an original spare from Measurement Computing’s PCI-DAS6402 Series, this unit is fully compatible with legacy PCI-bus industrial PCs and data acquisition workstations that remain in active service across countless facilities worldwide.

For maintenance engineers managing aging automation infrastructure, the availability of an original PCI-DAS6402/16 as a stocked spare is a direct investment in operational continuity. When a DAQ card fails mid-process — whether due to bus communication errors, channel dropout, or firmware corruption — the ability to swap in a pre-tested, original replacement within hours rather than weeks is the difference between a controlled maintenance window and an unplanned production halt. TOPNLMS stocks, tests, and ships this unit with a 12-month warranty, ensuring procurement confidence for both emergency replacement and planned inventory replenishment.

Critical Technical Specs Table

Preventive Maintenance Strategy

A data acquisition card does not operate in isolation. The PCI-DAS6402/16 sits at the center of a measurement chain that spans from field-level sensors through signal conditioning hardware to the host PC and supervisory software. When planning a preventive maintenance cycle or preparing a spare parts inventory for a DAQ-based control system, maintenance teams should evaluate the full signal path — not just the card itself.

Begin at the field interface: terminal boards and screw terminal accessories (such as the CIO-MINI37 or compatible 68-pin SCSI terminal panels) are the most frequently worn components in any DAQ installation. Loose connections, oxidized terminals, and damaged ribbon cables between the terminal board and the PCI-DAS6402/16 are among the leading causes of intermittent channel errors that are often misdiagnosed as card failure. Inspecting and replacing these terminal assemblies during scheduled downtime is a low-cost, high-impact maintenance action.

Next, assess the shielded signal cables connecting the card to the terminal board. In high-EMI industrial environments — common in motor drive cabinets, welding cells, and variable-frequency drive (VFD) enclosures — cable shielding degradation leads to noise injection on analog input channels, corrupting measurement accuracy. Stocking a spare shielded 68-pin SCSI cable alongside the PCI-DAS6402/16 ensures that a cable-related fault does not delay restoration.

At the host system level, the industrial PC chassis and PCI backplane deserve attention. PCI slot contacts can oxidize over years of operation, particularly in environments with humidity cycling. Cleaning PCI edge connectors and verifying slot integrity during card replacement prevents re-seating failures. If the host PC is approaching end-of-life, consider stocking a compatible industrial PC motherboard with available PCI slots, as PCI-bus systems are increasingly difficult to source on short notice.

For systems using the PCI-DAS6402/16 in conjunction with signal conditioners or isolation amplifiers — particularly when measuring thermocouples, RTDs, or 4–20 mA process signals — verify that the signal conditioning modules are within calibration. Devices such as DIN-rail-mounted signal isolators and analog input conditioners should be part of the same maintenance inspection cycle. A failed isolator upstream of the DAQ card will produce erroneous readings that can trigger false alarms or mask real process deviations.

Finally, for systems running Measurement Computing Universal Library (UL) software or third-party SCADA platforms interfacing with the PCI-DAS6402/16, ensure that driver versions are documented and archived. During a card replacement, having the correct driver package immediately available — without requiring internet access on the plant floor — eliminates a common source of restoration delay. Pair the hardware spare with a documented software configuration backup for a complete, field-ready replacement kit.

Strategic Replacement Solutions

The PCI-DAS6402/16 has been in service across industrial data acquisition systems for over two decades. Many facilities continue to rely on this card within legacy measurement workstations that were designed around its specific channel count, resolution, and software compatibility. Replacing this card with a non-original or incompatible substitute risks disrupting calibrated measurement ranges, breaking software driver compatibility, and invalidating existing test configurations — all of which introduce risk far exceeding the cost of sourcing an original spare.

TOPNLMS supplies the PCI-DAS6402/16 as an original, tested unit — not a counterfeit or refurbished substitute. Each unit undergoes functional verification prior to shipment, covering analog input accuracy across multiple gain ranges, digital I/O continuity, counter/timer operation, and PCI bus enumeration. This pre-shipment testing protocol ensures that the replacement card is field-ready upon arrival, minimizing the time between receipt and system restoration.

For facilities managing a fleet of identical DAQ workstations, bulk procurement of PCI-DAS6402/16 spares at a single point in time is a strategically sound approach. As Measurement Computing transitions its product portfolio toward USB and Ethernet-based DAQ platforms, PCI-bus card availability will continue to tighten. Securing inventory now protects against future supply constraints and price escalation, extending the operational life of existing systems without requiring a costly platform migration.

Where a direct replacement is required but the original PCI-DAS6402/16 is being retired in favor of a newer platform, TOPNLMS can advise on compatible migration paths within the Measurement Computing product family, ensuring that channel count, resolution, and software compatibility requirements are preserved during the transition.

Support FAQ

Q1: What is the expected service life of the PCI-DAS6402/16, and when should I plan for replacement?
The PCI-DAS6402/16 is a mature product with a well-established reliability profile. In controlled industrial environments, units typically remain in service for 10–20 years. Replacement should be planned when analog input accuracy degrades beyond calibration tolerance, when PCI bus enumeration becomes intermittent, or when the host PC platform is being retired. Proactive spare stocking is recommended before these symptoms appear.

Q2: How do I verify compatibility before installing a replacement PCI-DAS6402/16?
Confirm that the host PC has an available 32-bit, 5V PCI slot. Verify that the operating system supports the Measurement Computing Universal Library (UL) driver version required by your application software. Check that the terminal board and cable assembly are compatible with the 68-pin SCSI connector on the card. TOPNLMS provides pre-shipment functional test documentation upon request.

Q3: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers functional defects in the card under normal operating conditions. If the unit fails to enumerate on the PCI bus, exhibits channel dropout, or produces out-of-specification analog readings after installation, contact TOPNLMS at [email protected] with your order details and a description of the fault. Replacement or refund will be processed promptly. The warranty does not cover damage resulting from incorrect installation, ESD mishandling, or operation outside specified voltage and temperature ranges.

Q4: Can I order multiple units for inventory, and what is the lead time?
Yes. TOPNLMS supports bulk procurement for maintenance inventory programs. In-stock units ship within 1–3 business days. For larger quantities or specific configuration requirements, contact our sales team directly. All units are individually tested and shipped with documentation. Advance inventory procurement is strongly recommended given the declining availability of PCI-bus DAQ hardware on the open market.
