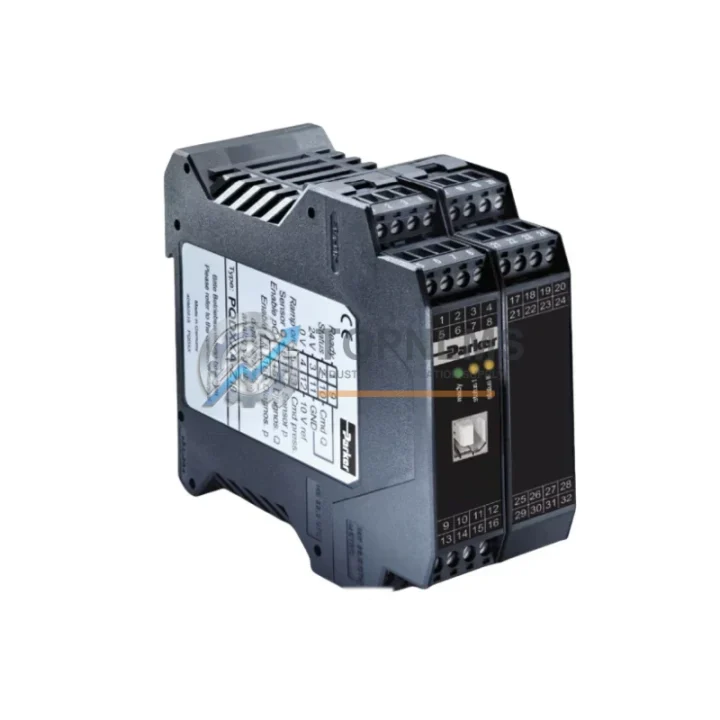

Parker PQDXXA-Z10 Original Industrial Spare PQ Series Compatible

Product Overview

Parker PQDXXA-Z10 Original Industrial Spare PQ Series Compatible: Ensuring Electrohydraulic System Stability

In high-demand industrial environments — from steel mills and injection molding lines to offshore hydraulic power units and heavy press systems — the Parker PQDXXA-Z10 proportional pump control module is a mission-critical component. As part of Parker Hannifin’s PQ Series electrohydraulic control platform, the PQDXXA-Z10 governs proportional pressure and flow regulation with precision, directly influencing the stability, responsiveness, and energy efficiency of your hydraulic drive system. When this module fails or degrades, the consequences are immediate: uncontrolled pressure spikes, erratic actuator behavior, and unplanned downtime that can cost thousands per hour in lost production.

Sourcing a verified original Parker PQDXXA-Z10 replacement — rather than an uncertified substitute — is the single most effective step a maintenance team can take to restore system integrity and protect downstream hydraulic components. At TOPNLMS, every PQDXXA-Z10 unit is sourced from authorized supply channels, inspected prior to dispatch, and backed by a 12-month warranty covering manufacturing defects and functional performance.

Critical Technical Specs

Preventive Maintenance Strategy

The PQDXXA-Z10 does not operate in isolation. It sits at the heart of a proportional electrohydraulic control loop, and its performance is directly dependent on the health of surrounding components. A disciplined preventive maintenance program should treat the PQDXXA-Z10 replacement as a trigger for a broader system inspection — not a standalone swap.

When replacing or inspecting the PQDXXA-Z10, maintenance engineers should simultaneously verify the condition of the Parker D1FBE proportional directional control valve, which works in tandem with the pump control module to regulate actuator direction and speed. Signal integrity between the two is essential; a degraded valve amplifier card will mask the benefits of a new pump controller. Equally important is the Parker IQAN-MD4 machine controller or equivalent PLC analog output module — if the command signal from the controller is noisy or drifting, the PQDXXA-Z10 will compensate incorrectly, leading to premature wear.

Inspect the 24 VDC power supply module feeding the control electronics. Voltage ripple above 200 mV peak-to-peak is a known cause of proportional solenoid instability and should be addressed before commissioning a new PQDXXA-Z10. While the control cabinet is open, check the Parker screw-in cartridge solenoid valves (series D1VW or equivalent) for coil resistance and insulation integrity — these are frequently overlooked during pump controller replacements and can cause immediate callback failures.

The hydraulic pressure transducer (typically a Parker SCP series or equivalent 4–20 mA pressure sensor) provides the closed-loop feedback signal to the PQDXXA-Z10. A drifting or contaminated transducer will cause the new module to hunt or oscillate. Replace or recalibrate the transducer as part of the same maintenance window. Similarly, inspect the Parker proportional solenoid coil assembly on the variable pump — coil resistance should be within ±5% of the rated value; anything outside this range warrants replacement before the new controller is energized.

For systems with remote I/O or fieldbus integration, verify the Parker IQAN-XS2 expansion module or equivalent analog I/O card for correct channel mapping and signal scaling. Mismatched scaling between the controller output and the PQDXXA-Z10 input is a common commissioning error that leads to over-pressure events. Finally, review the condition of the shielded signal cable between the controller and the proportional amplifier — damaged shielding or improper grounding introduces EMI that directly degrades proportional control accuracy. Replacing the cable during a planned shutdown costs a fraction of the downtime caused by intermittent signal faults.

A complete preventive maintenance kit for a PQDXXA-Z10 installation should therefore include: the replacement module itself, a spare proportional solenoid coil, a calibrated pressure transducer, a 24 VDC DIN-rail power supply, and a length of shielded 2-pair instrumentation cable — all stocked together to enable a single-shift restoration of full system capability.

Strategic Replacement Solutions

The Parker PQDXXA-Z10 was designed for long service life, but aging systems present specific challenges. Units manufactured before 2015 may use analog amplifier architectures that are no longer supported by Parker’s current firmware ecosystem. In these cases, the PQDXXA-Z10 serves as a direct drop-in replacement that restores original functionality without requiring PLC reprogramming or hydraulic circuit modification — a critical advantage when the original system documentation is incomplete or the OEM is no longer available.

For facilities managing mixed-brand hydraulic systems, the PQDXXA-Z10’s configurable analog input (±10 VDC or 4–20 mA) allows integration with Siemens S7-300/S7-1500 analog output modules, Allen-Bradley CompactLogix AO cards, and Mitsubishi Q-series analog modules without additional signal conditioning hardware. This cross-platform compatibility significantly reduces the engineering overhead of legacy system upgrades and makes the PQDXXA-Z10 a preferred choice for maintenance teams managing multi-vendor control environments.

Planned replacement — rather than reactive replacement after failure — is the most cost-effective strategy. A PQDXXA-Z10 that fails in service typically causes collateral damage to the proportional solenoid coil and, in severe cases, to the variable pump swashplate control mechanism. Proactive replacement at the 8,000-hour mark or at the first sign of signal drift eliminates this risk and allows the failed unit to be returned for bench testing and root-cause analysis, improving future maintenance planning.

Support FAQ

Q1: What is the expected service life of the Parker PQDXXA-Z10, and when should I plan for replacement?
Under normal operating conditions (clean hydraulic fluid, stable supply voltage, ambient temperature within spec), the PQDXXA-Z10 typically delivers 8,000–12,000 operating hours before performance degradation becomes measurable. We recommend scheduling replacement at the 8,000-hour mark as part of a planned maintenance window, or immediately upon observing pressure instability, solenoid response lag, or command signal deviation greater than 2% of full scale.

Q2: How do I verify compatibility before installation?
Confirm the control signal type (±10 VDC or 4–20 mA) used by your PLC or machine controller analog output, and verify that your variable pump’s solenoid coil resistance matches the PQDXXA-Z10’s driver output specification (typically 20–40 Ω). If you are replacing an older PQDXXA variant, check the DIP switch or potentiometer settings on the original unit before removal and replicate them on the new module. Our technical team can assist with compatibility verification prior to shipment — contact [email protected] with your pump model and controller type.

Q3: What pre-shipment testing is performed on each unit?
Every PQDXXA-Z10 dispatched from TOPNLMS undergoes functional verification including supply voltage acceptance test, analog input signal response linearity check, solenoid driver output current measurement, and insulation resistance test. A test report is available upon request. Units are packed in anti-static, shock-absorbing packaging to prevent transit damage.

Q4: What does the 12-month warranty cover, and how is a warranty claim processed?
The 12-month warranty covers manufacturing defects, component failure under normal operating conditions, and functional non-conformance to published specifications. It does not cover damage caused by incorrect installation, supply voltage outside the rated range, or hydraulic fluid contamination. To initiate a warranty claim, contact [email protected] with your order number, a description of the fault, and any available diagnostic data. Replacement units are dispatched within 3 business days of claim approval.
