Parker Denison 701-00600-8 Original Industrial Spare Gold Cup Compatible

Product Overview

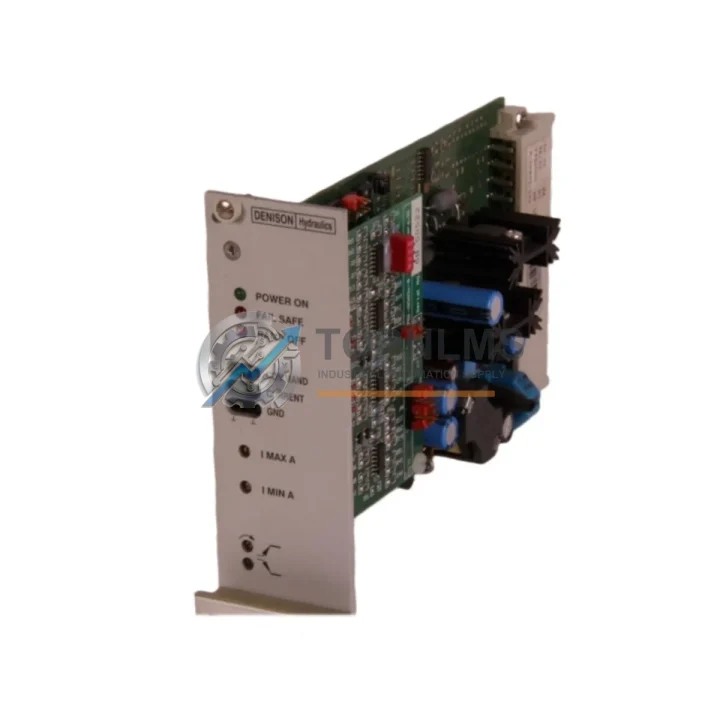

Parker Denison 701-00600-8 Original Industrial Spare Gold Cup Compatible: Ensuring Hydraulic System Stability and Uptime

In industrial hydraulic systems, the proportional amplifier card is the nerve center of closed-loop pressure and flow control. The Parker Denison 701-00600-8 is an original Gold Cup Series proportional amplifier card engineered for precision electrohydraulic control in demanding manufacturing, press, injection molding, and heavy-duty machine tool environments. When this card fails or degrades, the entire hydraulic axis loses proportional response — resulting in uncontrolled actuator movement, pressure instability, and unplanned downtime that can cost thousands per hour.

Sourcing a verified original 701-00600-8 from a reliable industrial spare parts supplier is the fastest path to restoring system performance without re-engineering your control architecture. This card is fully compatible with Parker Denison Gold Cup piston pump and motor systems, maintaining the original signal conditioning, ramp control, and dither frequency parameters your system was commissioned with.

Critical Technical Specs

Preventive Maintenance Strategy

A proportional amplifier card like the 701-00600-8 does not operate in isolation. It sits at the intersection of your electrical control cabinet and your hydraulic power unit, translating PLC analog outputs into precise pump displacement commands. A comprehensive preventive maintenance program for any Gold Cup hydraulic system must treat the amplifier card as part of a broader ecosystem of interdependent components.

During scheduled shutdowns or annual hydraulic system inspections, maintenance teams should simultaneously evaluate the condition of the Parker Denison Gold Cup proportional solenoid valve that the amplifier card drives — worn solenoid coils increase drive current demand and can mask amplifier card degradation until a hard failure occurs. Equally important is the 24 VDC power supply module feeding the amplifier card: voltage ripple or sag beyond ±5% will cause erratic proportional response that is frequently misdiagnosed as a card fault.

The analog output module on your PLC or DCS — whether a Siemens S7-300/400 SM332, an Allen-Bradley 1756-OF8, or a Yokogawa CENTUM VP analog output card — should be verified for signal accuracy at the ±10 VDC full-scale range. A drifting AO channel will produce the same symptom as a failing 701-00600-8, so always scope the command signal at the card input terminals before condemning the amplifier. While the cabinet is open, inspect the shielded signal cable running from the PLC AO module to the amplifier card input — damaged shielding or loose terminal connections introduce noise that disrupts proportional control at low command levels.

For systems using a Parker Denison Gold Cup variable displacement piston pump, the servo piston and displacement feedback mechanism should be inspected on the same maintenance cycle as the amplifier card. Internal leakage past the servo piston produces a position error that the amplifier card attempts to correct continuously, accelerating card wear. If your system includes a pressure transducer or pressure transmitter in the closed-loop feedback path, verify its 4–20 mA or 0–10 V output calibration — a drifted transducer forces the amplifier into constant correction mode.

Maintenance planners should also stock terminal block assemblies and DIN rail connectors compatible with the amplifier card’s wiring interface. Loose or corroded terminal connections are a leading cause of intermittent amplifier faults in humid or vibration-prone environments. Finally, for systems with integrated safety circuits, verify the condition of the relay output module or safety relay that enables the amplifier card’s enable input — a chattering enable signal will produce erratic pump response indistinguishable from a card fault.

Stocking the 701-00600-8 alongside these associated components — proportional solenoid valve, 24 VDC power supply, shielded signal cable, pressure transducer, and terminal block assemblies — transforms a reactive repair event into a planned, rapid-swap maintenance operation that restores hydraulic axis function within a single shift.

Strategic Replacement Solutions

The Parker Denison Gold Cup series has been in continuous industrial service for decades, and many facilities are running hydraulic systems commissioned in the 1990s or early 2000s. The 701-00600-8 proportional amplifier card is a direct OEM replacement that requires no re-parameterization of your PLC program, no hydraulic re-commissioning, and no modification to existing wiring harnesses — provided the replacement card is a genuine original part.

Aftermarket or counterfeit amplifier cards frequently use substitute op-amp and driver IC components that do not replicate the original dither frequency, ramp linearity, or current limit characteristics. The result is a system that appears to function initially but exhibits hunting, overshoot, or thermal shutdown under full production load. Sourcing a verified original 701-00600-8 eliminates this risk entirely.

For facilities managing aging Gold Cup hydraulic systems where the original amplifier card part number has been superseded, the 701-00600-8 serves as the reference baseline for cross-referencing compatible upgrade paths. Our technical team can assist in confirming compatibility with your specific pump model and control cabinet configuration before shipment, ensuring a zero-rework installation.

Every 701-00600-8 shipped from TOPNLMS undergoes functional verification including supply voltage regulation check, output current linearity test, ramp function verification, and enable circuit continuity confirmation. Units are shipped in anti-static packaging with individual test records. A 12-month warranty covers all verified original parts against manufacturing defects and premature failure under normal operating conditions.

Support FAQ

Q1: How do I confirm the 701-00600-8 is compatible with my specific Gold Cup pump model?
The 701-00600-8 is designed for Parker Denison Gold Cup series electrohydraulic control systems. Compatibility depends on your pump’s displacement control configuration (single or dual solenoid) and the command signal standard used in your control cabinet. Contact us with your pump nameplate data and PLC AO module type — our team will confirm compatibility before shipment at no charge.

Q2: What is included in the pre-shipment testing process?
Each unit undergoes supply voltage regulation verification, proportional output current linearity sweep across 0–100% command range, ramp-up and ramp-down timing verification, dither frequency check, and enable input circuit continuity test. A test record is included with every shipment. Units that do not pass all parameters are not shipped.

Q3: How should I manage spare amplifier card inventory for a multi-press facility?
For facilities operating 3 or more Gold Cup hydraulic axes, we recommend maintaining a minimum of one 701-00600-8 per 3–5 axes as a cold-standby spare. Given the card’s role as a single point of failure for the entire hydraulic axis, the cost of one spare card is typically recovered within the first prevented downtime event. Cards stored in original anti-static packaging in a climate-controlled environment maintain full functionality for 5+ years.

Q4: What is covered under the 12-month warranty, and how is a warranty claim processed?
The 12-month warranty covers verified manufacturing defects and premature component failure under normal operating conditions (within specified voltage, temperature, and load parameters). Warranty claims are initiated by contacting [email protected] with the order number, unit serial number, and a description of the failure symptom. We arrange return shipment and provide a replacement unit within 5 business days of receiving the failed unit and confirming the defect.
