Parker AH385851U003 Ruggedized DC Speed Controller for Harsh Environments

Product Overview

Parker AH385851U003 Ruggedized DC Speed Controller for Harsh Environments

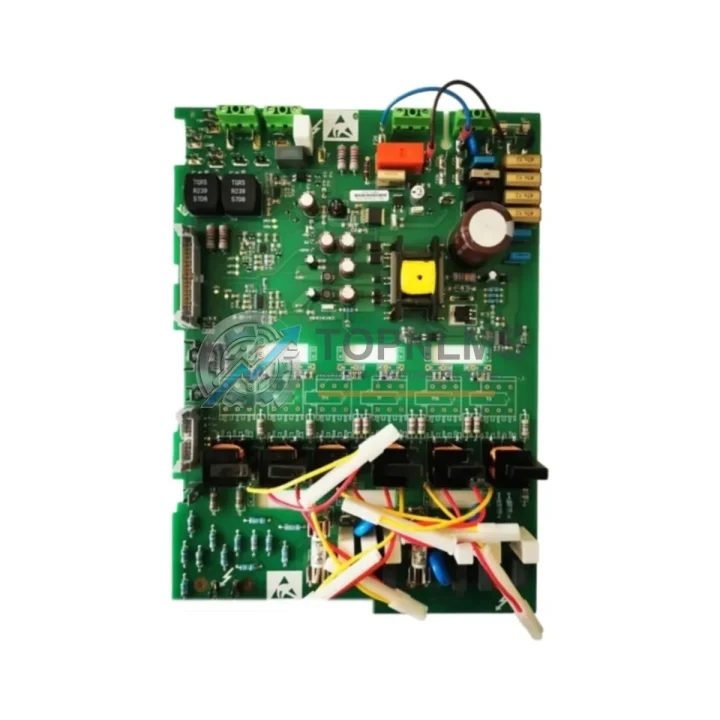

The Parker AH385851U003 is a precision-engineered DC speed controller circuit board designed for the SSD Series drive platform — one of Parker Hannifin’s most trusted product families in industrial motion control. Built to operate reliably under the demanding conditions found in continuous production lines, heavy industry, and safety-critical infrastructure, this board delivers consistent performance where standard components fail. Whether deployed in high-temperature furnace control rooms, high-humidity coastal processing plants, or environments subject to intense electromagnetic interference from variable frequency drives and high-power switching equipment, the AH385851U003 maintains stable closed-loop speed regulation without compromise.

Parker’s SSD Series drives are widely deployed across oil and gas compression stations, mining hoists, steel rolling mills, water treatment pump stations, and power generation facilities. The AH385851U003 controller board is the core signal processing and firing circuit assembly within these drives, governing armature current regulation, speed feedback processing, and gate pulse generation for the thyristor bridge. Its robust PCB construction — featuring conformal coating, reinforced solder joints, and shielded signal traces — ensures long-term reliability in environments where vibration, dust ingress, and thermal cycling are constant operational realities.

Rugged Specifications Table

Comprehensive Protection Solutions

The AH385851U003 does not operate in isolation — it is the intelligence layer within a broader drive and control architecture. In a typical SSD Series DC drive installation, this board interfaces directly with the Parker SSD 590 Series power stack, coordinating thyristor firing sequences that govern motor armature voltage. Upstream, it receives speed reference signals from a Parker AC30 or 690+ Series AC drive used for auxiliary systems, or from a Siemens S7-300 PLC or Allen-Bradley ControlLogix controller managing the overall production sequence via hardwired analog or digital I/O.

For installations requiring precise speed feedback, the AH385851U003 works in conjunction with encoder interface modules and tachogenerator signal conditioning boards within the SSD drive chassis. In multi-drive systems — such as those found in paper mills or wire drawing lines — the board supports master-follower speed synchronization, where the Parker SSD 591 Series acts as the master reference drive. Downstream, the controlled DC motor drives critical loads including winding reels, extruder screws, and conveyor systems that demand zero-speed-droop performance.

Within the control cabinet, the AH385851U003 coexists with Phoenix Contact or Weidmüller terminal blocks for field wiring termination, Schneider Electric Zelio or Omron MY Series relay modules for interlock logic, and Murr Elektronik or Wago power supply modules providing stable 24 VDC control voltage. In safety-classified zones, the drive system may be paired with Pilz PNOZ or Sick safety relay modules to enforce SIL-rated emergency stop functions, ensuring that a board-level fault does not propagate into a process safety event.

Communication integration is equally important in modern retrofits. While the SSD Series predates fieldbus-native designs, the AH385851U003-equipped drive can be interfaced to Profibus DP or DeviceNet networks via Parker’s optional communication interface cards, enabling supervisory control from a Siemens WinCC SCADA system or a Rockwell FactoryTalk View HMI. This makes the AH385851U003 a viable long-term component even in digitally upgraded facilities.

Application in Critical Infrastructure

In oil and gas upstream operations, Parker SSD Series DC drives equipped with the AH385851U003 board control mud pump motors and drawworks hoisting systems on drilling rigs, where load transients are severe and unplanned downtime carries significant safety and financial consequences. The board’s robust current regulation prevents armature overcurrent during sudden load changes, protecting both the motor and the mechanical drivetrain.

In underground mining, the AH385851U003 is found in conveyor belt drive systems and mine hoist controllers, where the drive must maintain precise speed under variable ore loading conditions and must respond correctly to emergency stop commands from the mine safety system. The conformal-coated PCB resists the coal dust and moisture that would degrade unprotected electronics within weeks.

Water treatment facilities rely on SSD Series drives for raw water intake pumps and sludge thickener drives, where the AH385851U003 provides the speed stability needed to maintain consistent flow rates and process chemistry. In metallurgical plants — rolling mills, continuous casting lines, and annealing furnaces — the board governs the DC motors that drive work rolls and coiler mandrels, where speed accuracy directly determines product dimensional tolerances.

Power generation facilities use Parker SSD drives for excitation control and auxiliary motor drives in both thermal and hydroelectric plants. In these environments, the AH385851U003 must perform reliably through the electromagnetic noise generated by large generators and transformer switching, a condition it handles through its inherent EMI-hardened circuit design.
